JLHBD-CS CCT Selectable LED Linear High Bay
Instruction Manual
INSTALLATION INSTRUCTIONS
JLHBD-CS CCT SELECTABLE LED LINEAR HIGH BAY SERIES
Miami, FL USA – [email protected]
T: 305.640.0465
– F: 305.640.0468
WWW.JADEMAR.COM
JLHBD-CS CCT SELECTABLE LED LINEAR HIGH BAY SERIES
WARNING
- To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
- Before installing, servicing, or performing routine maintenance on this equipment, follow these general precautions.
- Commercial installation, service, and maintenance of luminaires should be performed by a qualified licensed electrician.
- For the installation: If you are unsure about the installation or maintenance of the luminaires, consult a qualified licensed electrician and check your local electrical code.
- To prevent wiring damage or abrasion, do not expose wiring to the edges of sheet metal or other sharp objects.
- Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
WARNING
- Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
- Turn off the power when you perform any maintenance.
- Verify that supply voltage is correct by comparing it with the luminaire label information.
- All wiring connections should be capped with UL-approved wire connectors.
CAUTION
- Avoid direct eye exposure to the light source while it is on.
- Account for small parts and destroy packing material, as these may be hazardous to children.
- Risk of bum. Disconnect power and allow the fixture to cool before changing the bulb or handling the fixture.
NOTICE: Green ground screw provided in the proper location. Do not relocate.
NOTICE: Minimum 90° supply conductors.
NOTICE: Specifications and dimensions are subject to change without notice.
NOTICE: Suitable for Dry or Damp locations.
General Warning Diagram
INSTALLATION INSTRUCTIONS
Installation Step:
Always turn off the power supply from the main circuit breaker first!
- Remove the new LED fixture from the packaging and inspect for any damages. Handle new LED fixtures with care.

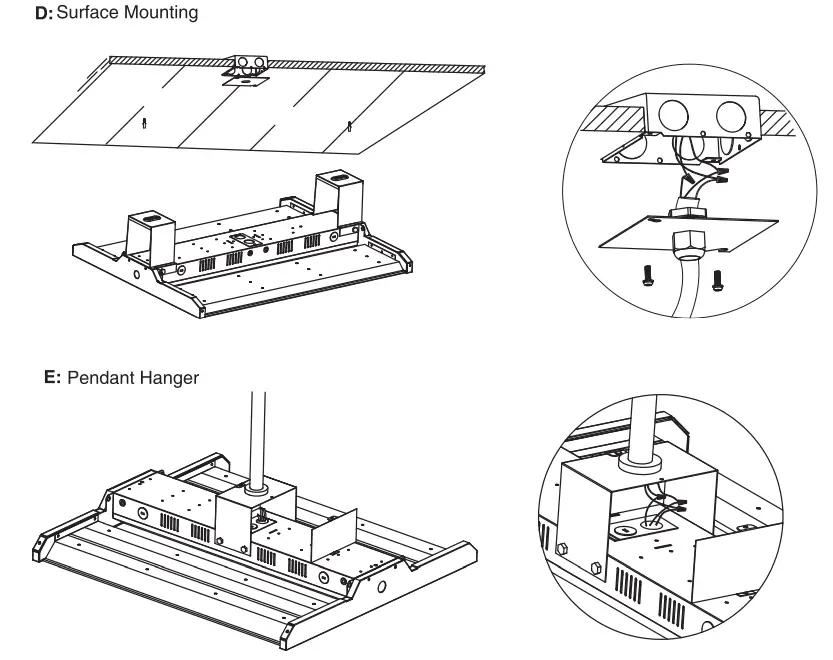

- CHAIN MOUNT EXAMPLE; Install the chain into the provided wire hanger. Secure the other end of the chain to a structure using hardware rated for the load.install the wire hanger onto the side of the top LED fixture channel. Make sure the wiring hangers are fully engaged in the side holes on the top channel.

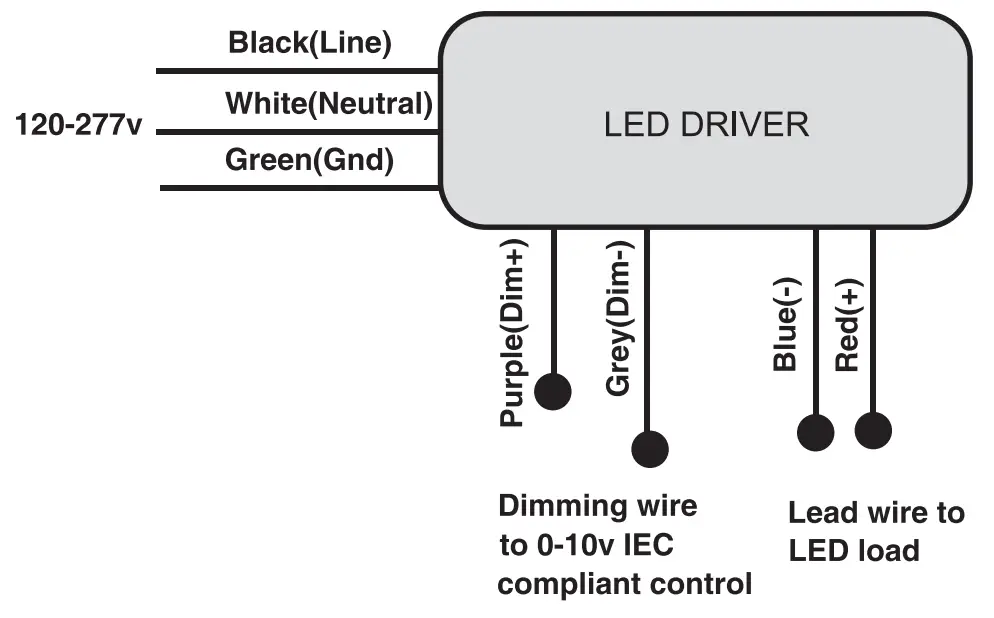

- Connect the LED high bay wiring to line wire, black to black, white to white, and green to green. Use only UL-listed wiring.
- NOTE: Purple and grey lead inside the driver compartment are 0-10V (low voltage) dimming leads. Connect to dimming low voltage wiring only.
- Clean all residues/tinge: prints from the new LED high bay and lens. Double-check all hanging hardware before moving on to the next installation.

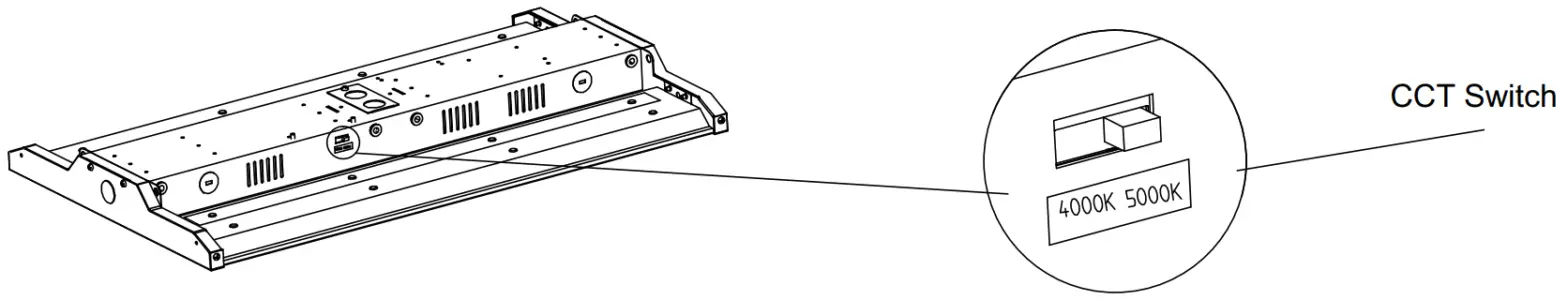

Field-Adjustable CCT
The end users may adjust the color temperature by the DIP switch buttons integrated into the driver.
The DIP switch is
accommodated with 2 options (left and right ), corresponding to 2 color temperatures, which can perform the desired color temperatures.
Factory Setting:5000K
- DIP switch is located on the side of the fixture.
- Select color temperature by sliding the switch left or right to the desired value.
Miami, FL USA – [email protected]
T: 305.640.0465 – F: 305.640.0468
WWW.JADEMAR.COM
Revised 05/2022
