The product should be installed and serviced by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
Avoid looking directly into the lamp when illuminated.
Ensure all amounts are securely attached and will support the weight of the fixture. Failure to properly support fixture may result in damage or injury, for which the manufacturer does not assume responsibility.

Check the product labels for specific electrical specifications related to installation. Improper installation will void the warranty.

Switch off supply power.

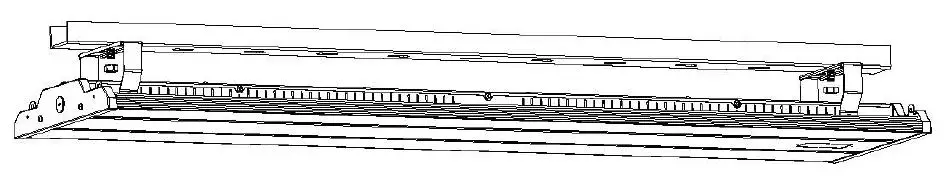

Measure and attach cables to a pipe or mounting hooks (not included) that can support the weight of the fixture.
Attach light to cables and adjust height as needed.

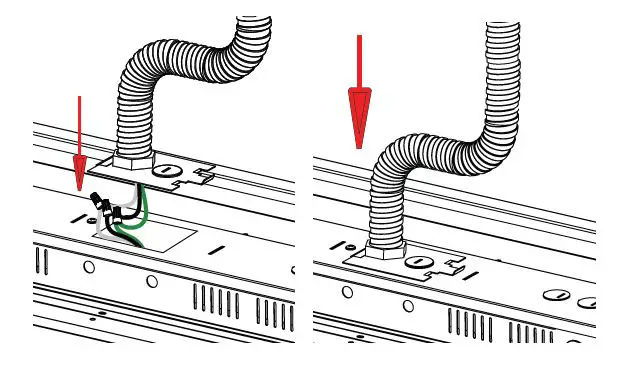

Connect wiring and conduit to fixture.
Switch on supply power.

Rev Date: V2 03/31/2021
4400 Earth City Expy, St. Louis, MO 63045
866-590-3533
superbrightleds.com

Important: Read all instructions prior to installation.

Switch off supply power.

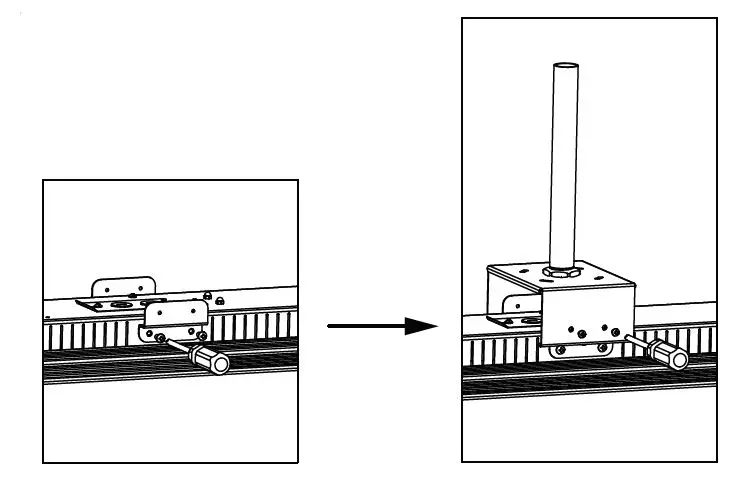

Attach pole/pendant mounting bracket to rigid conduit and attach adapter brackets to light.

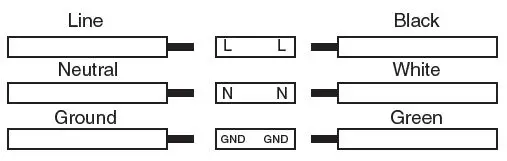

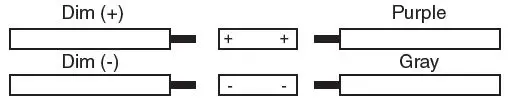

Connect wiring.
Attach adapter brackets to the mounting bracket using provided hardware.
Switch on supply power.

Switch off supply power.
Measure and attach surface mounting brackets to structure capable of supporting product weight. (hardware not included)
Connect wiring and conduit.
Attach fixture to the mounting bracket using provided hardware.
Switch on supply power.
