LED HIGH BAY LIGHT
User Manual
Web: www.langy-energy.com
Email: s[email protected]
Product Features
- Direct Electrical Connection (Plug in)
- NO UV or IR Radiation
- High Brightness SMD
- High energy efficiency, low power consumption
- Long life-span, Low temperature rising
Application
High bay is designed for
- Factories
- Workshops
- Warehouses
- Highway toll stations
- Gas stations
- Supermarkets
- Exhibition halls
- Stadiums
- Similar places
Packing List
1 × High Bay Light with Plug
1 × Safety Rope
1 × User Manual
1 × Hanging Ring
Precautions
- Please cut off the power before installation. This product should be installed by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
- Ensure all mounts are securely attached and will support the weight of the fixture. Failure to properly support the fixture may result in damage or injury, for which the manufacturer does not assume responsibility.
Installation Step
 |  |

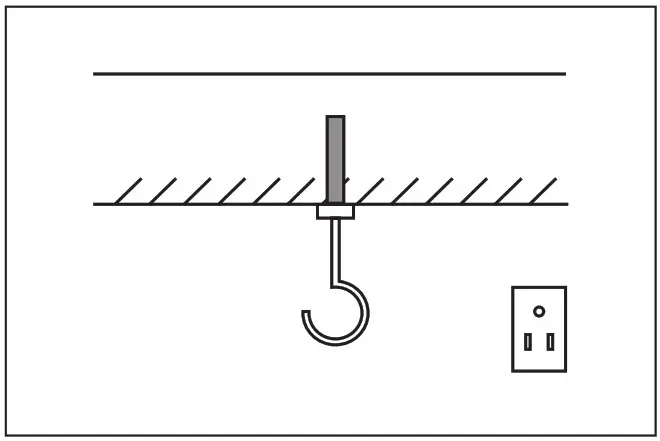

| 1. Screw the hanging ring into the hole of the back cover. | 2. Hook not included |
 |  |
| 3. Hang the lamp up and plug it in. | 4. Hanging the safety rope. |
Specification
| Item NO. | LGHB01-100 | LGHB01-150 | LGHB01-200 |
| Power | 100W | 150W | 200W |
| LED Qty | 120PCS | 180PCS | 240PCS |
| Color Temperature | 5000K | ||
| System Efficacy | 140Lm/W | ||
| Beam Angle | 120° | ||
| CRI | > 80Ra | ||
| System Power Consumption | ±5W | ||
| Waterproof Grade | IP65 | ||
| Input Voltage | AC 100-277V | ||
| Life span | > 50.000 Hours | ||
| Operating Temperature | -50 °F – 140 °F | ||
WARNING
Only qualified personnel should install the lamp and ensure they follow the instruction manual.
Any improper installation might cause falling, electric shock, fire, or other injury, damage or hazard.
Important Safety Information
- To avoid damage, electric shock or fire, please do not modify the lamp without confirming with the supplier first.
- If the external flexible cable or cord of the lamp is damaged, it should only be replaced by the supplier, a service agent or qualified person.
- Any improper installation might cause falling, electric shock, fire, or other injury, damage or hazard.
- Please disconnect power before installation or any maintenance of the lamp.
- Please disconnect power if it begins to smoke or emit odors, since fire or electric shock may occur.
- Ask qualified electrician to inspect and maintain the light.
- Please do not touch the power supply when the lamp is operating.
- Avoid looking directly into the lamp when illuminated.
- Pay attention to fire, electricity and shock.
- Be aware that sulfides, corrosive and soluble chemicals can damage the lampshade and even cause the bulb to die.
- The normal use environment temperature is -30℃ ~ 50℃ . Exceeding this range will adversely affect product life.
Warranty Limited
LIMITED THREE-YEAR WARRANTY. Should this product fail to perform satisfactorily due to a defect or poor workmanship within Three years from the date of purchase, return it to the place of purchase and it will be replaced, free of charge.
Incidental or consequential damages are excluded from the warranty.
Manufacturer: Langy Innovations Technology Co.,Ltd
| Add: | Jinqiao Road, Yingtan City, Jiangxi Province, China. |
| Importer: | SUNRUI TRADING LLC |
| Add: | 405 N BOWSER RD.,SUITE #6A, RICHARDSON, TX, 75081 US |
| Customer Service: | 1(800)518-3280 |
NO. 40500013
