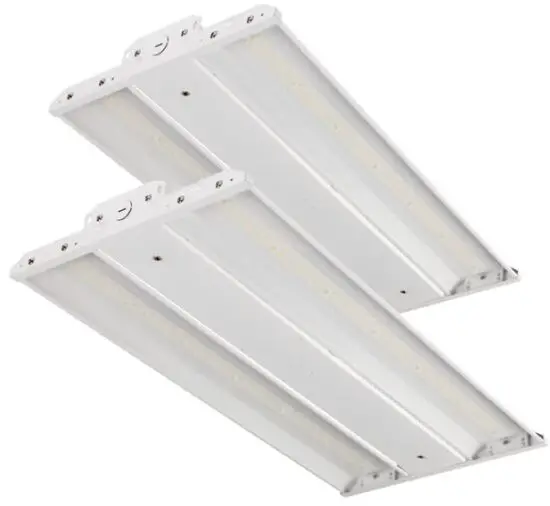

Super Bright LEDs LS-LHBV2 Series LED Linear High Bay Light

Safety and Notes

• Product should be installed and serviced by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the fixture. Failure to properly support fixture may result in damage or injury, for which the manufacturer does not assume responsibility.

Wiring Diagram

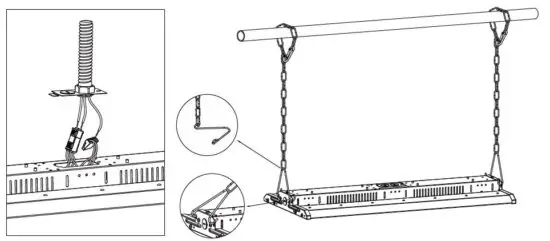

Suspension Chain Installation

1. Switch off supply power.
2. Measure and attach chains to a pipe or mounting hooks (not included) that can support weight of the fixture.
3. Attach hangers to light and hang light on chains. Adjust height as needed.
4. Connect wiring and conduit to fixture.
5. Switch on supply power.

Optional Accessories

Optional Pole/Pendant Mounting Installation

1. Switch off supply power.
2. Attach pole/pendant mounting bracket to rigid conduit.
3. Connect wiring and attach light to bracket.
4. Switch on supply power.

Optional Wire Guard Installation

1. Remove supply power if the light is already installed.
2. Place wire guard over light and attach using provided hardware.
