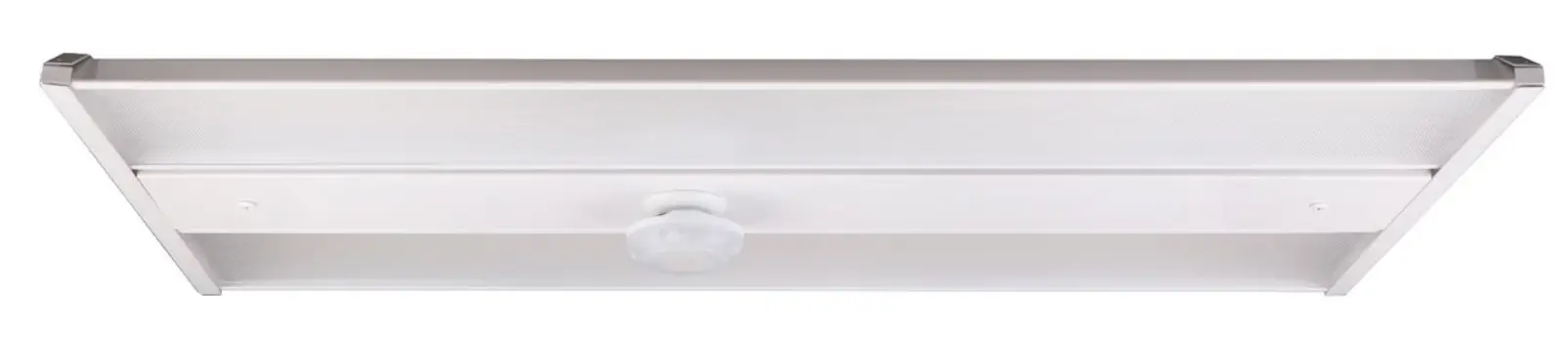

RAB LHB3S-LED Linear Highbay LED Light
Contents hide
IDEAL APPLICATIONS
- Manufacturing
- Manufacturing
- Commercial Spaces
DESCRIPTION
The LHBS-LED series is an easy to install fixture that provides welldistributed uniform lighting and is ideal for large indoor spaces such as warehousing, commercial spaces and manufacturing applications. LHBS-LED is an ideal one-for-one replacement for conventional lighting systems such as HID and fluorescent.
FEATURES
Construction
- Steel housing with a white powder paint finish. Standard unit comes with a polycarbonate matte lens.
Electrical
- Standard fixture has a high efficiency LED driver that operates at 120-347V. Drivers have a 6KV internal surge suppressor. The operating temperature is -25°C to +50°C.
Light Performance
- Standard unit comes with a dedicated CCT of 4000K or 5000K. located on top of the fixture. The fixture has a CRI of 80. The fixture has a beam angle distribution of 90 degrees.
Controls
- 12V DC Motion Sensor (easy to install with twist lock mechanism), Motion Sensor Remote Control (for custom configurations) are offered separately.
Mounting
- Standard fixture is easy to install with suspending chain (6ft long) included in the box. Wire Guard and Surface/pendant mount kit (used for surface or pendant mountings) are offered separately.
| SPECIFICATIONS | LHB3S-LED300 |
| Watts (W) | 301.6 |
| Lumens (Lm) | 41006.5 |
| Efficacy (Lm/W) | 136 |
| Voltage | 120-347V |
| Colour Temp | 4000K 5000K |
| CRI | 80 |
| Dimming | 0-10V Dimming (10-100%) |
| THD | 15% |
| PF | 0.9 |
| Beam Distribution | 90 Degrees |
| LED Life @ 100,000 hours | 81% |
| Housing Finish | White |
| Housing Details | Steel |
| Lens Details | PC Matte Lens |
| Mounting | Surface Mount, Pendant Mount, Suspended Mount* |
| Number of Conduit Entries | 6 |
| Operating Temp. | -25°C to +50°C |
| Options Sold Separately | Surface/Pendant Mount Kit, Wire Guard, DC Motion Sensor (Microwave), DC Motion Sensor Remote Control |
| Certification | UL, Damp Location Rated, 5 Year Warranty, IP20, DLC Premium |
*Standard Configuration

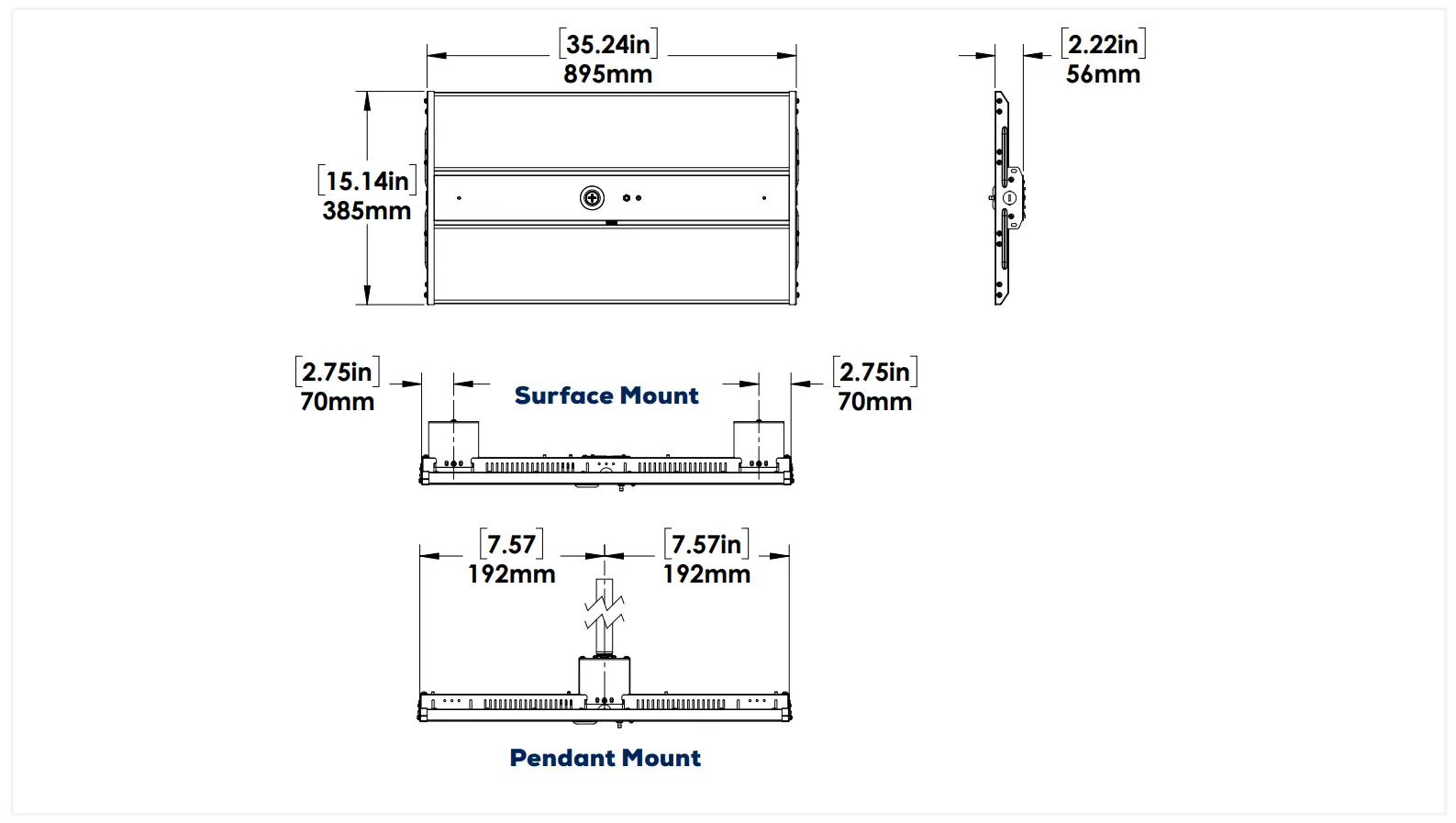

DIMENSIONS
AMPERAGE DRAW & SURGE PROTECTION | ||||||||
| CURRENT (A) | SURGE PROTECTION (kV) | |||||||
| 120V | 208V | 240V | 277V | 347V | 120-347V | |||
| LHB3S-LED300 | 2.63A 1.52A | 1.32A | 1.14A | 0.91A | 6kV | |||
TM-21 ESTIMATED LUMEN MAINTENANCE | ||||||||
| 50,000 Hours | 75,000 Hours | 100,000 Hours | ||||||
| LHB3S-LED300 | 90.3% | 85.7% | 81.4% | |||||
WEIGHTS (lbs) | ||||||||
| LHB3S-LED300 | 18 | |||||||
SPECIFICATIONS | |||||||
| Model Number | Voltage (V) | Power (W) | Light Output (lm) | Efficacy (lm/W) | THD (%) | PF | CCT (K) |
| LHB3S-LED300-H-4K-XXX-DIM | 120-347 | 302 | 41007 | 136.0 | 15.0 | 0.900 | 4000 |
| LHB3S-LED300-H-5K-XXX-DIM | 120-347 | 302 | 41148 | 136.4 | 15.0 | 0.900 | 5000 |
LHBS DC MOTION SENSOR (MICROWAVE) SETTINGS
SENSOR SPECIFICATIONS
SPECIFICATIONS | |
| Operating Voltage | 12V DC |
| Operating Current | 30mA |
| Output | 0-10V DC |
| Stand-by Power | 0.5W |
| Frequency | 5.8GHz +/-75MHz |
| IP Rating | IP65 |
| Detection Angle | 30° – 150° |
| Mounting Height | Max 15m (50ft) |
| Brightness | 70%/80%/90%/100% |
| Sensitivity | 20%/50%/75%/100% |
| Hold time | 10s/1min/10min/30min |
| Daylight threshold | 10Lux/30Lux/50Lux/100Lux/Disabled |
| Stand-by time | 1min/30min/60min/+∞ |
| Stand-by Dimming Level | 10%/20%/30%/50% |

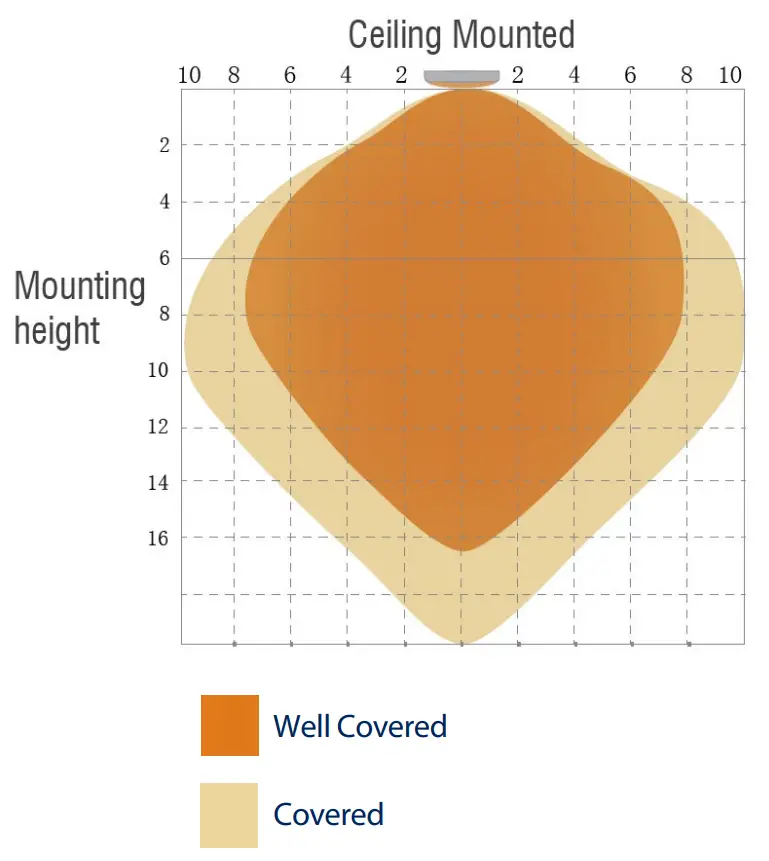

SENSOR DETECTION RANGE (M)
DEFAULT SETTINGS | |
| Brightness | 70% |
| Sensitivity | 20% |
| Hold time | 10s |
| Daylight threshold | Disabled |
| Stand-by time | + ∞ |
| Stand-by Dimming Level | l 10% |
LHBS DC MOTION SENSOR REMOTE CONTROL
| BUTTON | FUNCTION |
| ON/OFF | Long press until the brightness indicator light is on. Then press to permanently turn on and off the fixture. |
| BRIGHTNESS | Sets the highest light fixture brightness when motion is detected |
| SEND | Uploads the selected remote-control parameters to the light fiture sensor. |
| HOLD TIME | The time the light fixture will remain at the brightness setting after it detects motion. |
| STAND-BY DIM | The Dim level that the light fixture will dim down to after the Hold Time has expired. |
| STAND-BY TIME | The time the light fixture will remain in the Stand-by dim state before it shuts off. To disable the light from shutting off, select the INFINITY icon. |
| SENSITIVITY | Sets the sensitivity to which the sensor will detect motion |
| DAYLIGHT | The lux setting at which the light fixture will turn on/off. If the ambient lux is more than the defined lux setting, the fixture & sensor function will turn off and remain off until the ambient lux is below the setting. Long press until the daylight indicator light is on. Then press to select the desired lux setting. To disable daylight sensor, long press again. |
| RESET | Resets the light fixture sensor parameters to the default settings. |
| – / + | Press to increase or decrease brightness from 0% to 100%. |
| TEST | Press to test the sensor (hold time is only 3s). |
Note: The sensor cannot be programmed with the remote control when standing right under it. It is recommended to use brand new batteries in remote control.
PROGRAMMING INSTRUCTIONS
- PressON/OFF button
- Select Settings
• Select brightness level by pressing Brightness Button.
• Select hold time by pressing Hold Time Button.
• Select Stand by Dim by pressing Stand By Dim Button.
• Select Stand by Time by pressing Stand By Time Button.
• Select Sensitivity by pressing Sensitivity Button.
• Optional: If Daylight sensor is desired, long press Daylight Button and then choose the daylight setting. - Press send, fixture responds to signal by strobing.

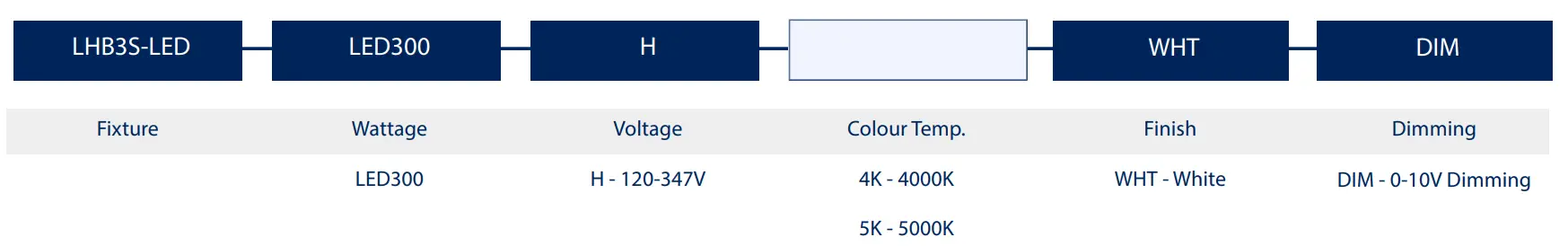

ORDERING GUIDE
Note: Standard fixture comes with 6ft long suspending chain.
ACCESSORIES
- 0081073 – LHB3S PENDANT/SURFACE MOUNT KIT
- 081076 – LHB3S WIRE GUARD KIT
- 080909 – DC MOTION SENSOR
- 080970 – DC MOTION SENSOR REMOTE CONTROL
CUSTOMER SUPPORT
RAB DESIGN LIGHTING INC. | 1-222 Islington Avenue. Toronto, ON, M8V 3W7 |
1-800-268-0381 | rabdesign.ca rabdesign.ca 01 | 2022 5
