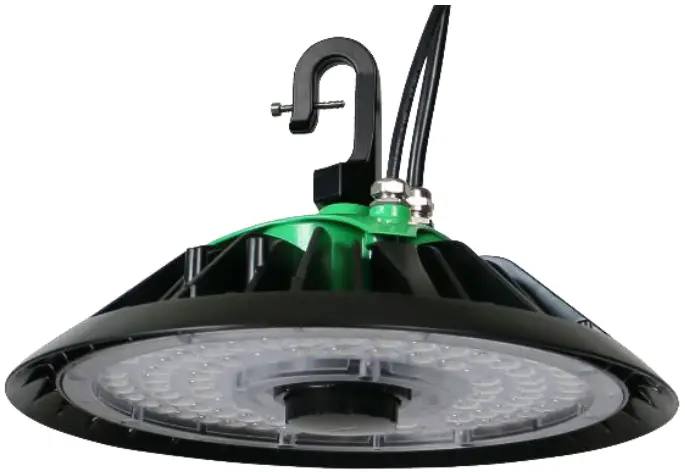

3 LED LOC-GDHB-MW High Bay Light Series

4 OPTIONAL ACCESSORIES

5 Documents / Resources

5.1 References

6 Related Posts

FEATURES

IP66 rated
Optional microwave sensor and emergency backup
Easy installation and maintenance
Corrosion and rust proof
50,000 hours lifetime

SUITABLE APPLICATIONS

Warehouses
Stadiums
Factories
Supermarkets
Logistic Centers
Exhibition Halls

CONSTRUCTION:
Unique design with built-in sensor. The lens has a spherical design and can emit light evenly. Each product is equipped with a shorting cap which is convenient for customers to replace the sensor.

OPTICAL SYSTEM:
Seoul SMD LED chips. 60°, 90° or 120° beam angle options.

WARRANTY:
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.

ELECTRICAL:
Available as 120-347V input. 5FT cord (no plug) comes standard. -30°C to 45°C, -22°F to 113°F

INSTALLATION & MOUNTING:
Hanging hook or U-Bracket (not included).

CONTROLS & DIMMING:
0-10V dimming comes standard. Suitable for use with LED dimmers. Motion sensor and remote-control options available.

MODEL NUMBER – 5,000K	WATTAGE	LUMENS	EFFICACY	CRI	POWER FACTOR	THD	REPLACES
LOC-GDHB-MW(80/100/120/150)50KDLV	80W	11,680LM	146LM/W	70	0.9	15%	175W – 250W HID
LOC-GDHB-MW(80/100/120/150)50KDLV	100W	14,600LM	146LM/W	70	0.9	15%	250W – 400W HID
LOC-GDHB-MW(80/100/120/150)50KDLV	120W	17,520LM	146LM/W	70	0.9	15%	250W – 400W HID
LOC-GDHB-MW(80/100/120/150)50KDLV	150W	21,900LM	146LM/W	70	0.9	15%	400W – 600W HID

MODEL NUMBER – 5,000K	WATTAGE	LUMENS	EFFICACY	CRI	POWER FACTOR	THD	REPLACES
LOC-GDHB-MW(180/200/220/240)50KDLV	180W	26,280LM	146LM/W	70	0.9	15%	600W – 750W HID
LOC-GDHB-MW(180/200/220/240)50KDLV	200W	29,200LM	146LM/W	70	0.9	15%	600W – 750W HID
LOC-GDHB-MW(180/200/220/240)50KDLV	220W	32,120LM	146LM/W	70	0.9	15%	750W – 1,000W HID
LOC-GDHB-MW(180/200/220/240)50KDLV	240W	35,040LM	146LM/W	70	0.9	15%	750W -1,000W HID

LED LOC-GDHB-MW High Bay Light Series

Series	Wattage Options	Wattage Options	CCT Options	Dimming Options	Voltage Options	Optional	Beam Angle
LOC-GDHB-MW	80W 100W 120W 150W	180W 200W 220W 240W	5,000K	0-10V Dimming Integrated Motion Sensor	LV = 120-347VAC HV = 277-480VAC	MS – Motion Sensor	60° 90° 120°

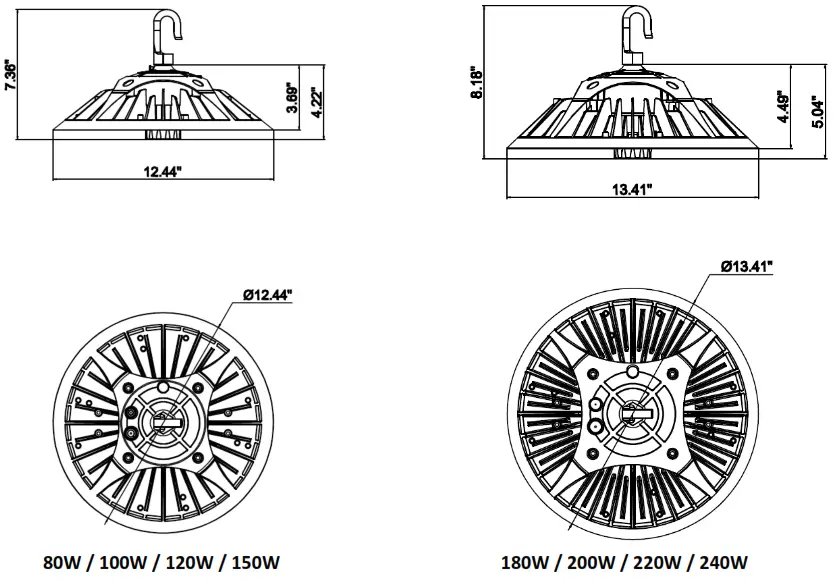

MEASUREMENTS (120-277V)

MODEL	QUANTITY	WEIGHT	UPC CODE
LOC-GDHB-MW(80/100/120/150)50KDLV	1	lbs	8.1E+11
LOC-GDHB-MW(180/200/220/240)50KDLV	1	lbs	8.1E+11

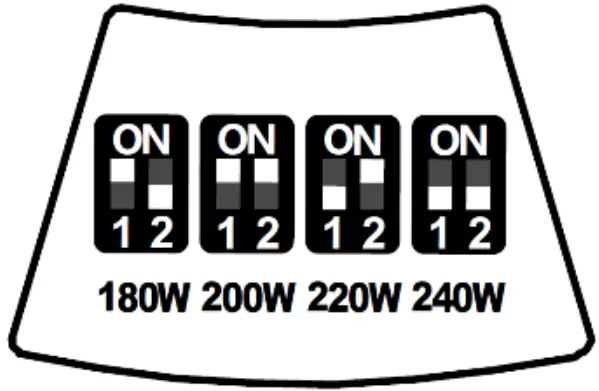

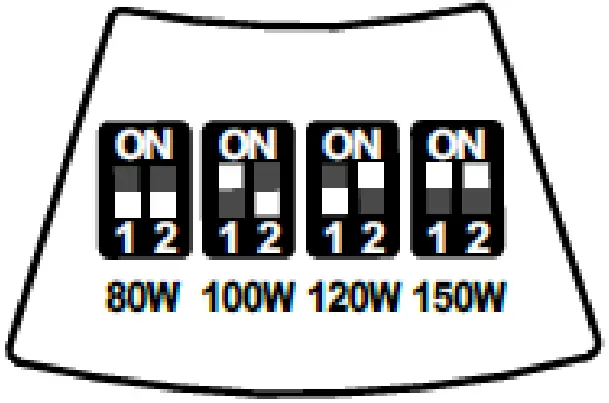

ADJUSTABLE WATTAGES:


LOC-GDHB-MW(80/100/120/150)50KDLV	LOC-GDHB-MW(180/200/220/240)50KDLV

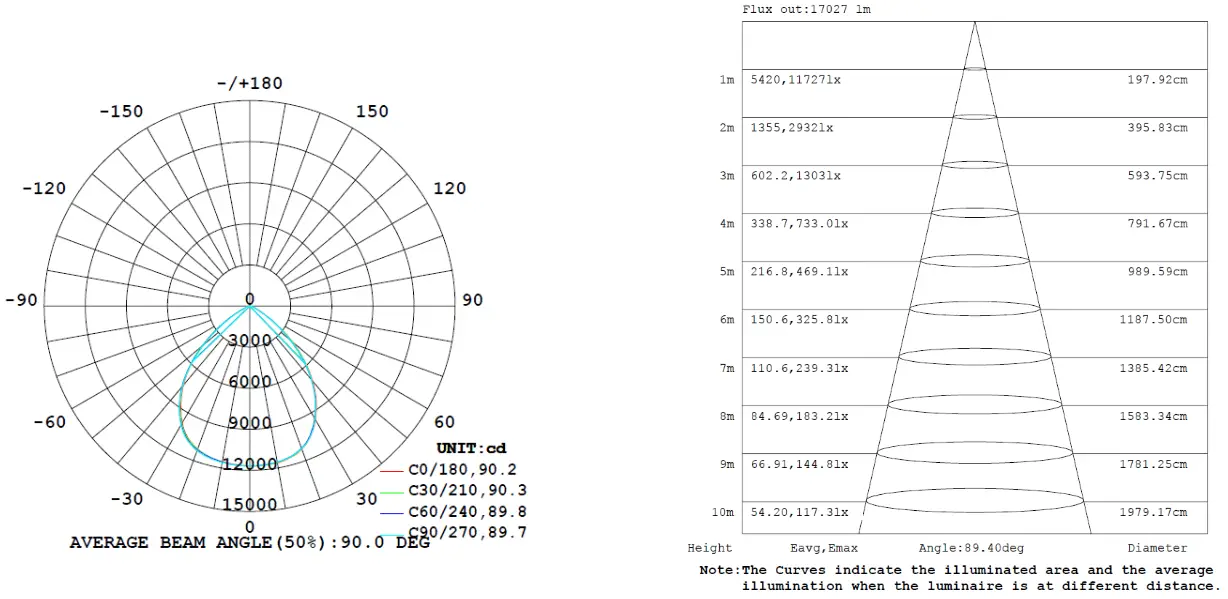

PHOTOMETRIC DATA

80W / 100W / 120W / 150W 180W / 200W / 220W / 240W

OPTIONAL ACCESSORIES

	Motion Sensor HD06VCRH (compatible with remote control)
	Remote Control LOC-GDHB-HD05R
	Photocell HS05 (compatible with remote control)
	Emergency Driver LOC-HBEMDR-25WHV

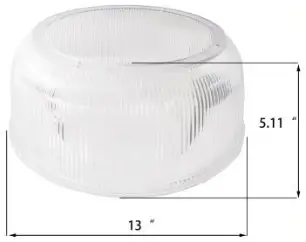

	Reflector
