Yellore Led High Bay Lights Instruction Manual

LED HIGH BAY LIGHTS

INSTALLATION INSTRUCTIONS

1. Open the box and take out the LED light and ring.

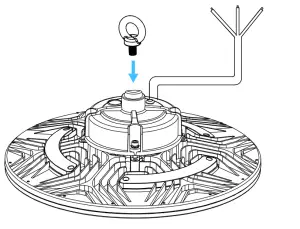

2. Install the ring into the light body as the following diagram.

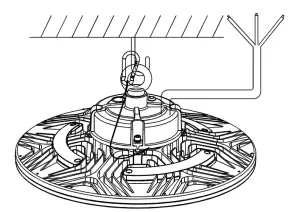

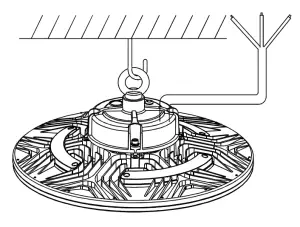

3. Hung the LED light with a sturdy hook

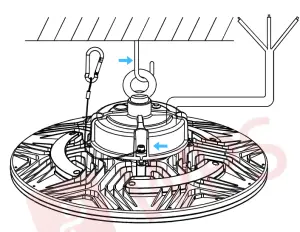

4. Hang the safety wire on one side to the lamp, another side to the sturdy hook shown by the diagram.

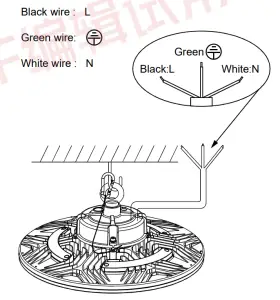

5. Connect wires as below diagram and turn on power to lighting.

6. Use the remote control to adjust product brightness, 0-100% adjustment.
   Or use microwave induction to intelligently adjust product functions.

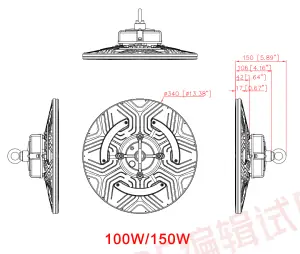

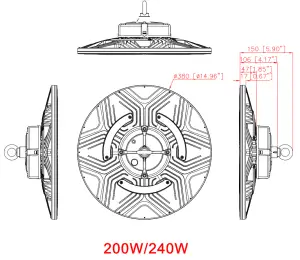

DIMENSIONS

YELLORE Industrial and Cormmercial Lighting
