Orein Nd90 Led Recessed Lighting 4 Inch User Guide

illuminate for a better life.
ND90
285x420mm (A3)

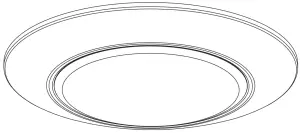

Dimmable Disk light 5 in./6 in. LED
Recessed Trim Disk light.Quick User Guide

We appreciate the trust and confidence you have placed in OREiN through the purchase of recessed lighting ND09. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing OREiN.
IMPORTANT
Read carefully before installing the fixture. Retain these instructions for future reference.
OREiN fixture must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety.
*THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
* TO PREVENT ELECTRICAL SHOCK, POWER SHOULD BE TURNED OFF AT THE FUSE BOX BEFORE INSTALLATION.

SAFETY WARNINGS:
Read all product labels and directions.
WARNING – Risk of fire or electric shock. LED Retrofit Kit Installation requires knowledge of luminaires’ electrical systems. If not qualified, do not attempt installation.
Contact a qualified electrician.
WARNING-Risk of fire or electric shock. Install this kit only in the luminaires that have the construction features and dimensions shown in the photographs and/or
drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.

• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• WARNING — To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Please examine all parts that are not intended to be replaced by the retrofit kit for damage and replace any damaged parts prior to installation of the retrofit kit.
• Replace only with OREiN LED. Visit our website:www.iorein.com. Call our experts at (678) 293-8382
• The recessed luminaire is intended for mounting only in a covered ceiling where only the led side of the luminaire will be exposed to damp or dry locations.
• INSTALLATION SHOULD ONLY BE PERFORMED AFTER POWER TO THE FIXTURE HAS BEEN DISCONNECTED.
• THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS.
• These instructions shall be included on an information sheet packaged with each unit.

What’s in the BOX

Optional Accessories

Our disk downlight is compatible with most common 4′, 5, and 6′ recessed housings, please purchase LAMP SOCKET E26 SET.

Tools Needed

Installation with J-BOX and Existing Housing.
A screwdriver is needed for installation.

Dimensional Drawings

Min. Lamp Compartment Dimensions

Installation with J-BOX
J-box Min Volume -15.9 in3, Min Length: 3.2 in, Height: 1.55in
Compatible with standard J-box
Installation with Existing Housing
Min lamp compartment dimensions — Dia: 4in. Height: 4.1in.
Compatible with the most common 4in recessed housings.

Installation with J-BOX (Mounting Diameter >2.7in.)

1. Make sure the power is turned off at the source to the J-box in which you are installing the product.

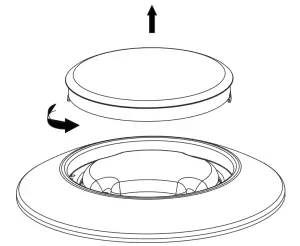

2. Take out the lens from the disk.

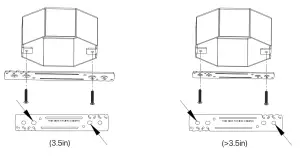

3. Fasten the bracket to J-box with the two long screws provided in the package.

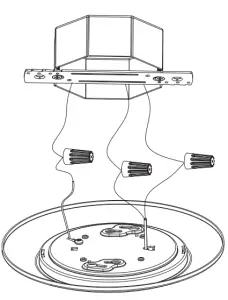

4. Connect the Ground Wire (Cooper) to J-box and the wires of J-box to disk, white-white, black-black.

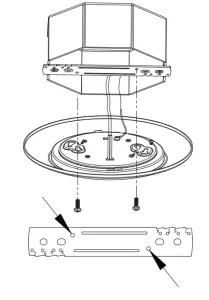

5. Fasten the disk to the bracket with the two short screws provided in the package.

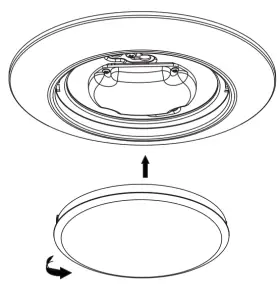

6. Put the lens back to disk.

Specifications

Warnings and Cautions

• Min 90°C supply conductors
• Only install in operating environments between -4°F and 113°F(-20°C and 45°C)
• CAUTION: Risk of shock-turn off power before inspection, installation, or removal.
• 18 Month Limited Warranty: This product comes with an 18-month free replacement warranty from the date of purchase with receipt if used under normal circumstances.

Nous contacter

Syvio Technology co., LIMITED
Room 21 Unit A, 11/f, Tin Wui Industrial Building,
No.3 Hing Wong Street, Tuen Mun, N.T. HongKong
Suivez-nous sur les r~seaux sociaux
Facebook: @orein.led
Youtube: OREiN LED

300 Technology Court SE
Suite 100, Smyrna, GA 30082
www.iorein.com
(678) 293-8382
[email protected]
[email protected]
