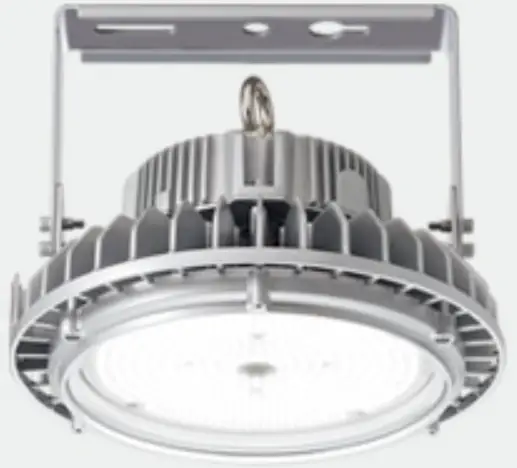

EYE LIGHTING LED High Bay Ceiling Light

Instruction Manual

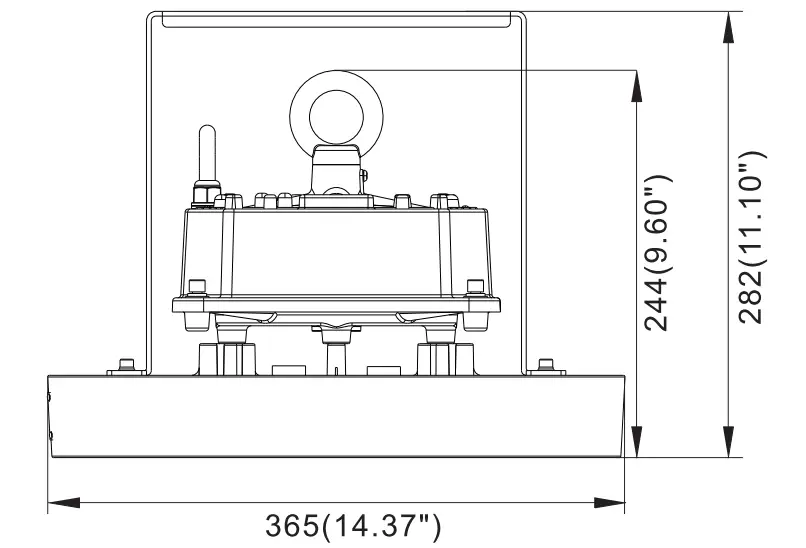

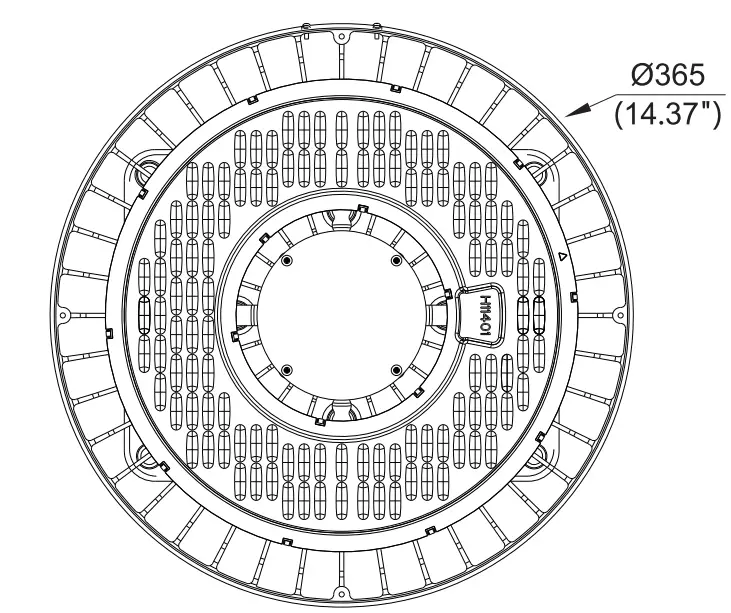

Physical Dimensions(Unit: mm/inch)

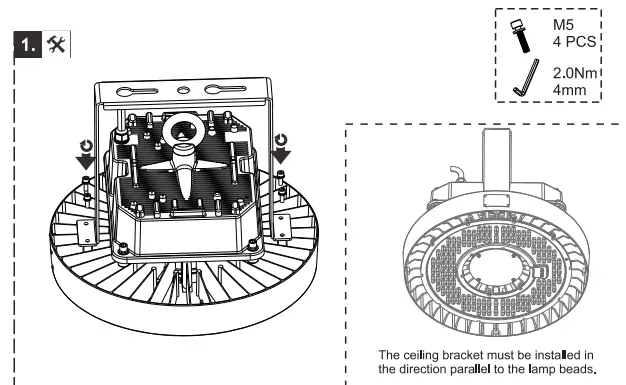

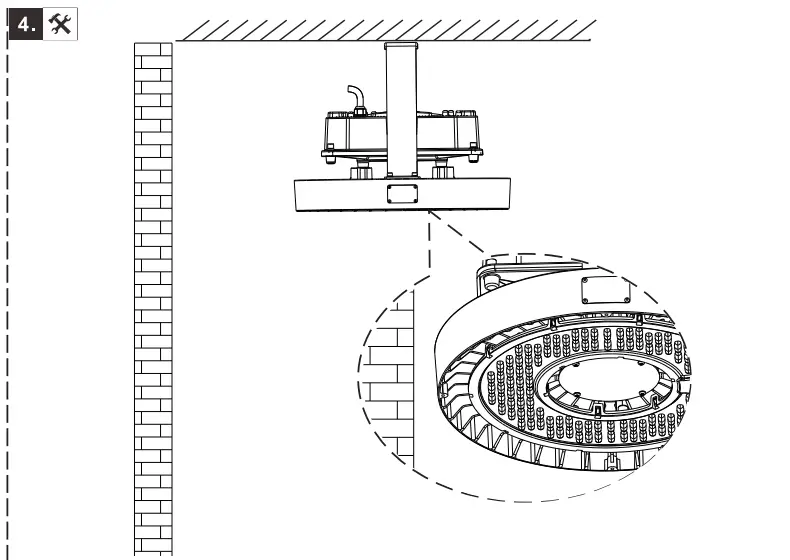

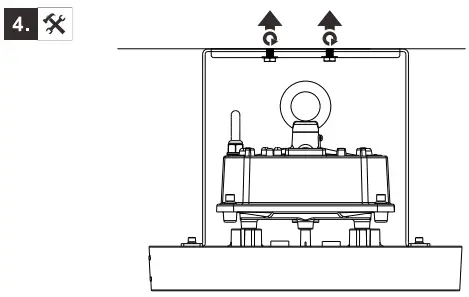

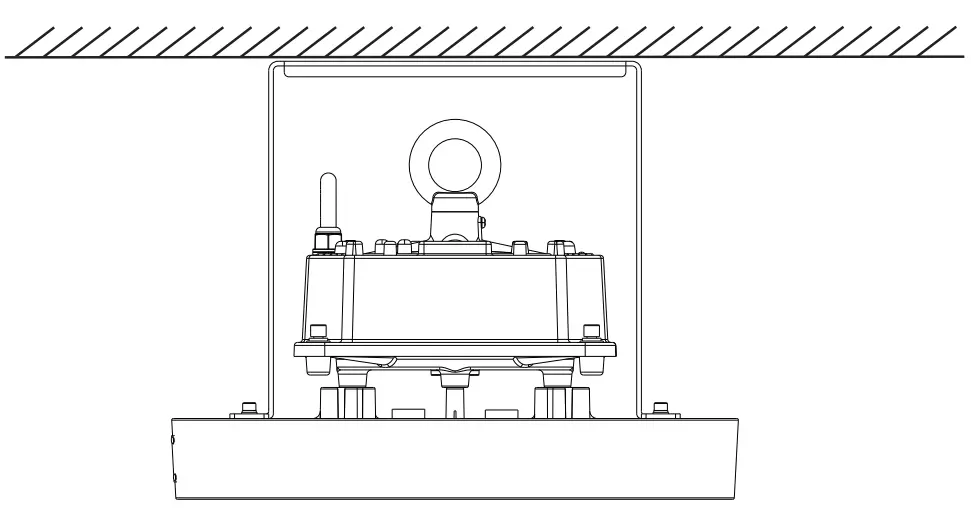

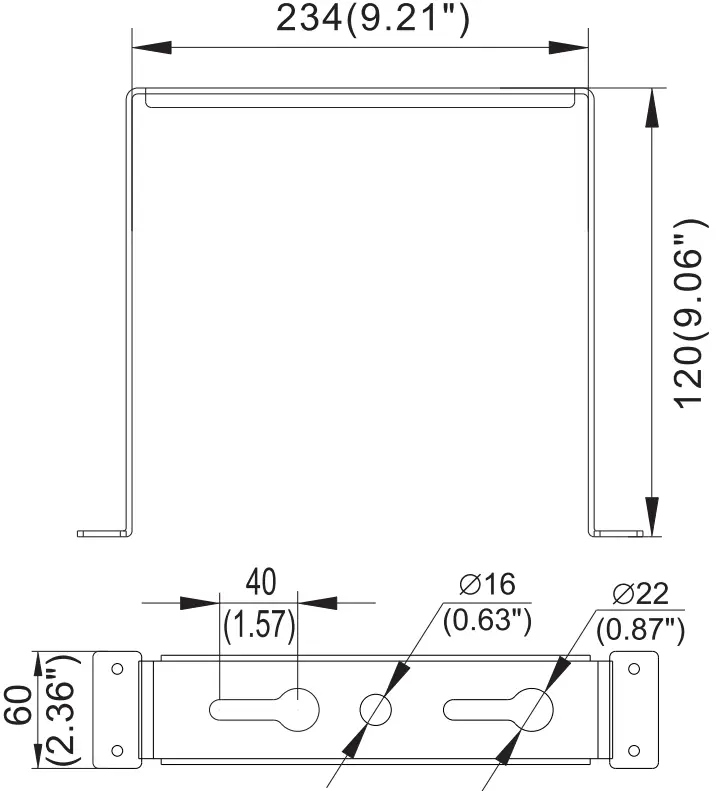

Ceiling installation






| Product Specifications | 100W | 120W | 150W | 200W | 240W |
| Size (L X w X H) | 0 365x244mm(0 14.37″x9.60″) | ||||
| Net Weight (Driver Included) | 5.5± 0.3 kg(12.13± 0.66Lbs) | 5.6±0.3kg (12.35±0.66Lbs) | 5.7±0.3kg (12.57±0.66Lbs) | ||
| Input Voltage | 100-240V/100-277V | ||||

Dimmable
- Don’t wire dim cord to high voltage, avoid dim function
- The luminiaire is suggested to be mounted above 4 meters height and indoor
- We highly suggest users to maintain and clean dust from the luminaire regularly, to keep its
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified
