INSTALLATION INSTRUCTIONS
JLHB-CPS CCT & POWER SELECTABLE LED LINEAR HIGH BAY
- An electric generator cannot be used to test the LED lamp.
- Please abide by related country, regional, and local laws and regulations in this fixture.
- Please turn off the power before installation.
- Proper earth grounding is required to ensure safety.
- To avoid the possibility of electrical shock or fire, the installation must have professional electric knowledge.
- Please wear gloves to avoid injury before installation.
- Check for smoke or sparks in the wiring, if this occurs, please turn off the power immediately and relevant personnel.
- Please check if there is any damage during shipping. If so, please contact the manufacturer.
- Please read the installation instruction to check whether all the accessories are complete. Aer confirmatall the fixture according to installations.
INSTALLATION INSTRUCTIONS
Three (3) dimming fence available in this high bay light:
- Constant current can be achieved by 1-10VDC dimming.
- PWM signal dimming.
- Variaesistance unit dimming.
- Please choose the appropriate dimming way according to your needs. You can also choose not to use this function.
- The product cannot be connected to a dimming device when it is equipped with Mo.
- Please Connect wires with UL Listed conduit fionduit.
- Enclose the outlet box with a suitable outlet box cover.
Wiring Instruc
L: Black
N: White
: Green/Yellow
+Dim: Purple
-Dim: Grey
Three installation methods for your optional: Chain/Cable Mount, 3/4″ NPT Mount, and Surface Mount/Pendant Mount.
- Please choose the most suitable installation method for the purchased fixture as per your needs.
A. Hanging Installation( Chain /Cable Mount)

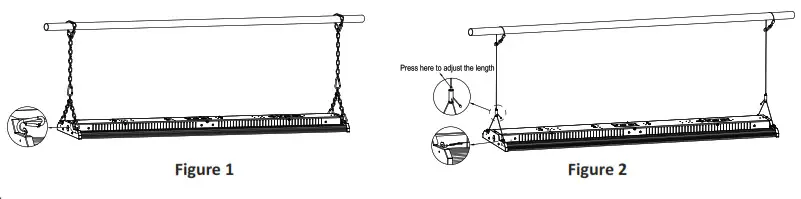

- Fix one end of the chain or cable to the fixture;(Figure 1 or Figure 2)
- Fix the other end of the chain or cable to the crossbar ; (Figure 1 or Figure 2)
- Adjust the suspension height of the fixture according to your needs; (Figure 1 or Figure 2)
- After installation, choose suitable wiring knock out, and finish wiring according to local standard and code.

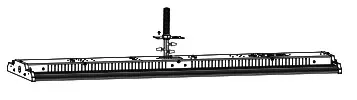

B. 3/4” NPT Mount

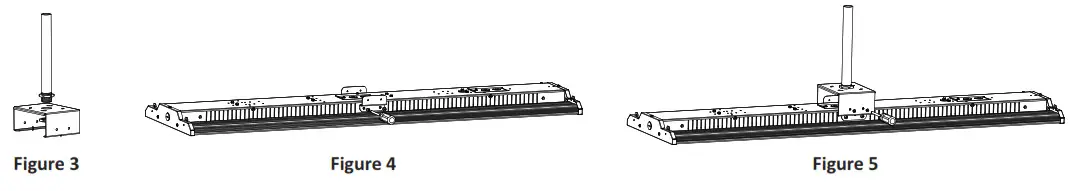

- Mount the large bracket on the 3/4″ tube (Figure 3);
- Install the two small brackets at the corresponding position of the fixture (Figure 4);
- Fix the small bracket of the fixture to the 3/4″ tube bracket (Figure 5),
- Aer installable wiring knock out, and finish wiring according to local standards and codes.
INSTALLATION INSTRUCTIONS
C. Surface Mount/ Pendant Mount

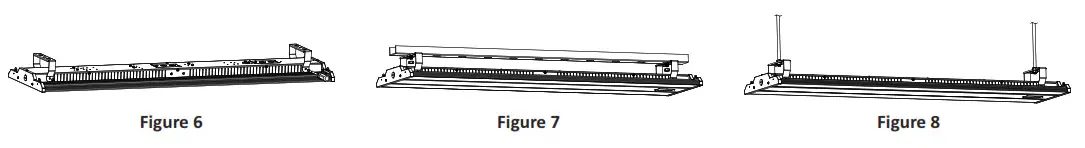

- Fix the bracket to the corresponding positive (Figure 6)
- According to the distance between the brackets, drill holes in the corresponding iron frame or ceiling to install screws, then install the lamp on the corresponding screws, (Figure 7) The fixture can also be mounted by hanging through a stud. (Figure 8)
Extra Accessory Option Installation: Wire Guard, Motion Sensor/PIR Sensor 1.
- Wire Guard: Mount the wire guard on the fixture with screws(Figure 9).
- Motion sensor /PIR Sensor (This method works for an installation of both sensors.)
• Remove the side cover of the fixture (Figure 10).
• Knock off the knockout hole on the side cover and install the sensor (Figure 11).
•Assemble the side cover with the sensor back onto the fixture (Figure 12).
•Open the cover of the fixture, connect the wires according to the wiring instruction of the sensor, and install the cover back after wiring.
WARNING/ AVERTISSEMENT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. CAUTION – RISK OF FIRE.
CE PRODUIT DOIT ETRE INSTALLE SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE PERSONNE QUI CONNAIT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES INHERENTS ATTENTION – RISQUE D’INCENDIE.
