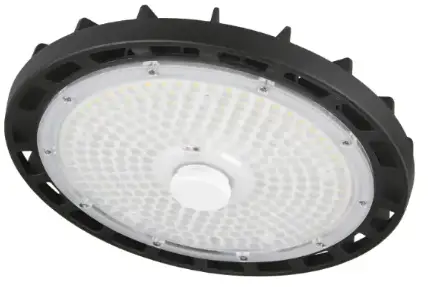

ESL VISION LED Round High Bay Series
RHB Installation
WARNING
- To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
- Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
- Commercial installation, service and maintenance of luminaire should be performed by a qualified licensed electrician.
- If you are unsure about the installation or maintenance of the luminaire, consult a qualified licensed electrician and check your local electrical code.
- To prevent wire damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
- Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
- Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
- Turn off the power when you perform any maintenance.
- Verify that supply voltage is correct by comparing it with the luminaire label information
- All wiring connections should be capped with UL approved wire connectors.
CAUTION
- Avoid direct eye exposure to the light source while it is on.
- Account for small parts and destroy packing material, as these may be hazardous to children.
- Risk of burn. Disconnect power and allow fixture to cool before changing bulb or handing fixture.
Installation Instructions
- First install the hook to the RHB fixture using the provided screws to mount to the hook to the fixture.
- Install the provided safety wire.

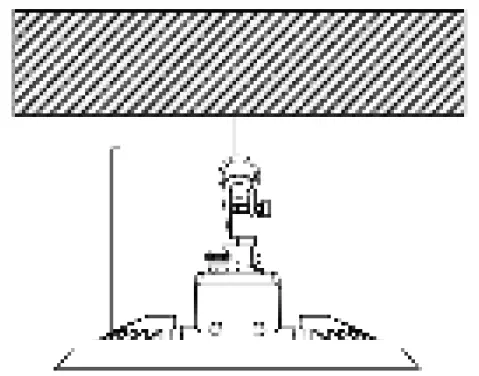

- Attached the fixture hook to a pre-installed ring in the ceiling. Install the provided screw into the hook.

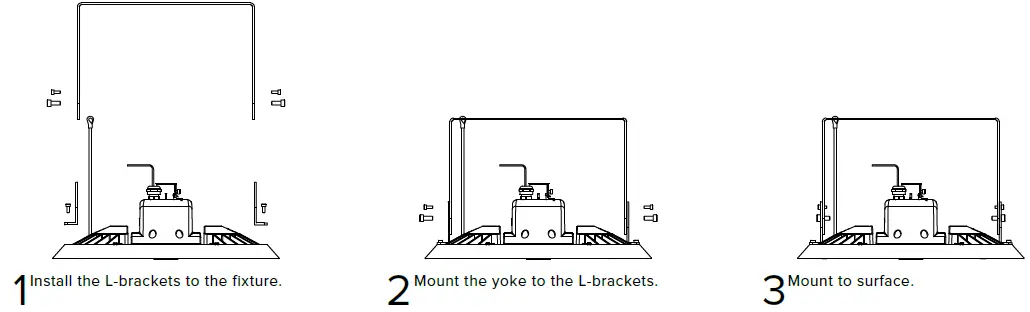

Yoke Installation Instructions
