Sunco Lighting LL3 LED Linear High Bay
Product Information: LINEAR HIGH BAY LIGHT LL3

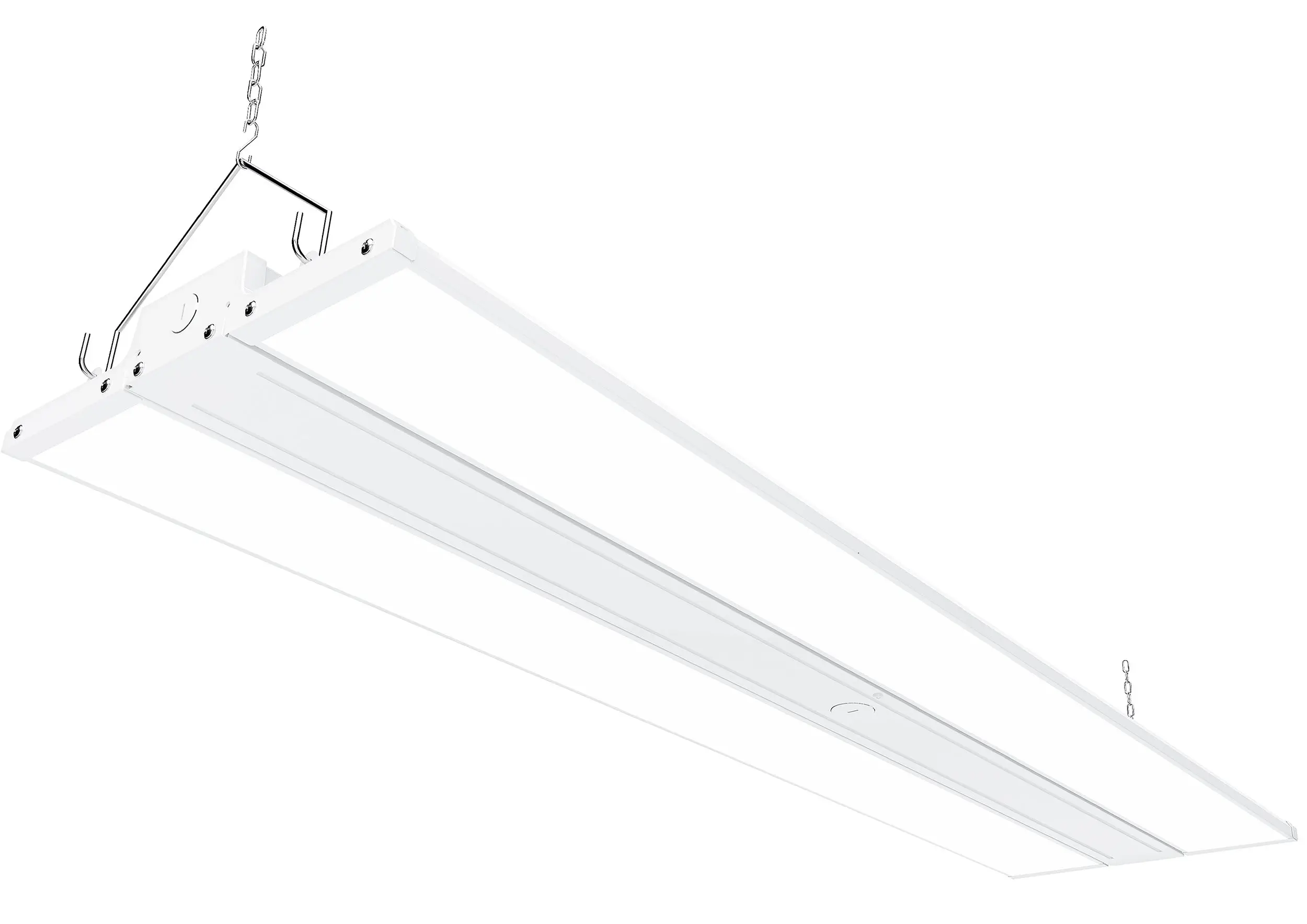

The LINEAR HIGH BAY LIGHT LL3 is a high-quality lighting fixture designed for industrial and commercial use. It provides bright and efficient lighting for large indoor spaces, such as warehouses, factories, gyms, and retail stores. The LL3 model offers various options for customization, including the addition of a Microwave Sensor, PIR Sensor, or Remote Control.
Product Usage Instructions

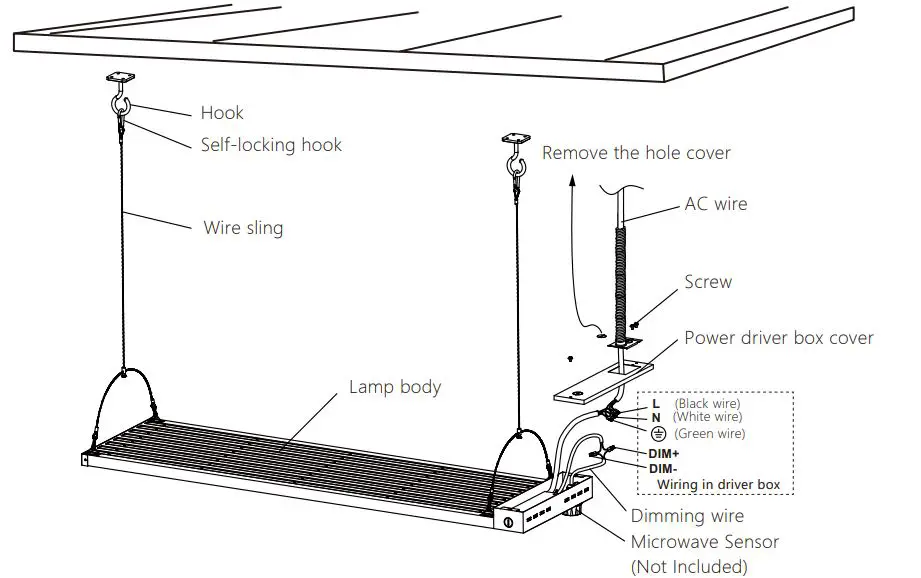

Installation Method:
- Hook: Use the provided self-locking hook to hang the linear high bay light from the ceiling.
- Wire sling: Alternatively, you can use a wire sling to suspend the light fixture.
Lamp Body:
To access the lamp body, follow these steps:
- Remove the hole cover.
- Unscrew the power driver box cover.
Wiring:
When connecting the AC power and dimming wires, follow these instructions:
- Turn off the power before starting any wiring.
- Connect the AC wire, ensuring proper connection of the L (Black wire), N (White wire), and Ground (Green wire).
- If using a dimmable driver, connect the dimming wire according to the wiring diagram.

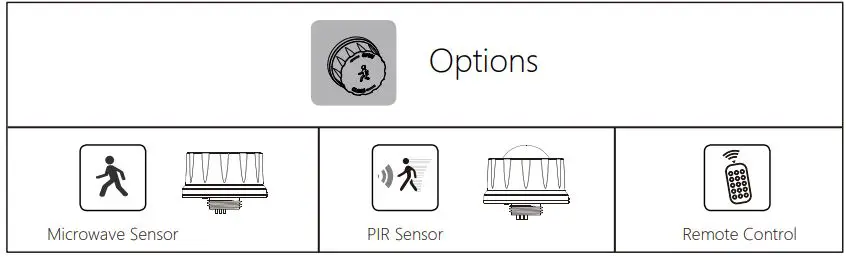

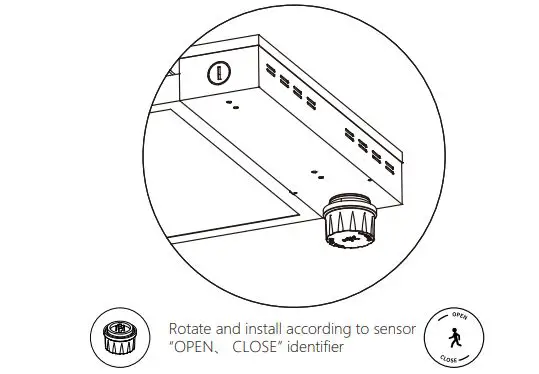

Options
The LINEAR HIGH BAY LIGHT LL3 offers additional options for enhanced functionality:
- Microwave Sensor: This sensor, which is not included, allows for motion detection and automatic lighting control.
- PIR Sensor: Another option for motion detection and lighting control.
- Remote Control: Enables remote operation and control of the light fixture.

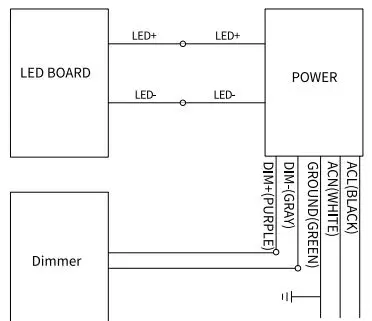

Wiring Diagram:
The wiring diagram below illustrates the proper wiring connections:
Turn off the power before starting any wiring. If using a dimmable driver, ensure compatibility with 0-10V dimming and connect the wires as shown in the diagram. Wiring Connection
Turn off the power, connect AC wire.
Dimmer connection ( With dimmable driver.)
- Compatible with 0-10V dimming.
- Connect wires as shown.
