LED V3 COMPASS HIGH BAY
INSTALL INSTRUCTIONS

PLEASE FIND A QUALIFIED ELECTRICIAN FOR INSTALLATION. Please read the instructions before you install and use the luminaire.

Contents hide

To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
Before installing, servicing, or performing routine maintenance on this equipment, follow these general precautions.
Commercial installation, service, and maintenance of luminaires should be performed by a qualified licensed electrician.
For The installation: If you are unsure about the installation or maintenance of the luminaires, consult a qualified licensed electrician and check your local electrical code.
To prevent wiring damage or abrasion, do not expose wiring to the edges of sheet metal or other sharp objects.
Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.

WARNING: RISK OF FIRE OR ELECTRICAL SHOCK

Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
Turn off the power when you perform any maintenance.
Verify that the supply voltage is correct by comparing it with the luminaire label information.
Make all electrical and grounded connections in accordance with the National Electrical Code and any applicable local code requirements.
All wiring connections should be capped with UL-approved wire connectors.

CAUTION: RISK OF INJURY

Avoid direct eye exposure to the light source while it is on.
Account for small parts and destroy packing material, as these may be hazardous to children.
The mounting surface should be of sufficient strength to hold more than the weight of the fixture.
Suitable for Wet locations.

WARNING DISCONNECT POWER BEFORE INSTALLING OR SERVICING.

TO LINE VOLTAGE
Black (Line)
White (Neutral)
Yellow/Green (Grd)

TO DIMMER 1-10V
Purple (DIM+)…..1-10V Dimmable
Gray (DIM-)……….1-10V Dimmable

*CAP DIMMING WIRES SEPARATELY IF NOT USING THE DIMMING FUNCTION.

· 100W / 150W / 200W / 240W

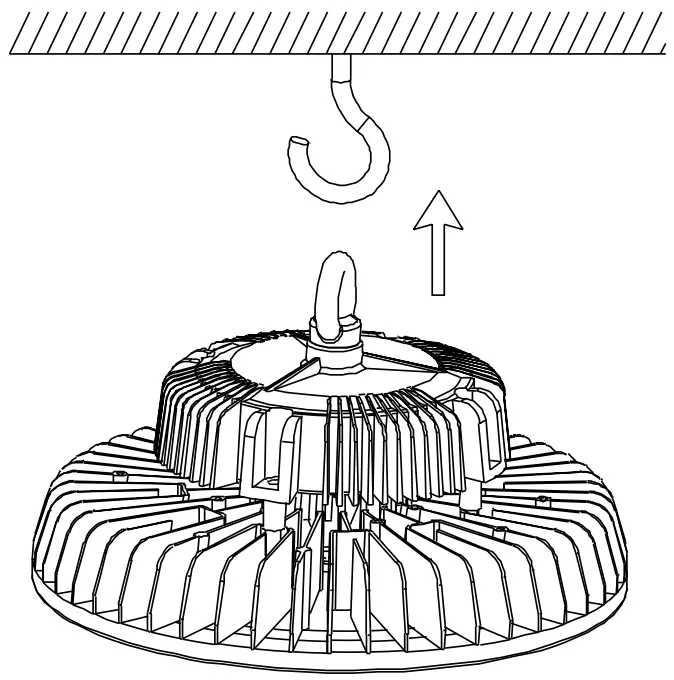

Drill a hole into the ceiling for the appropriate size hook (provided by the installer).

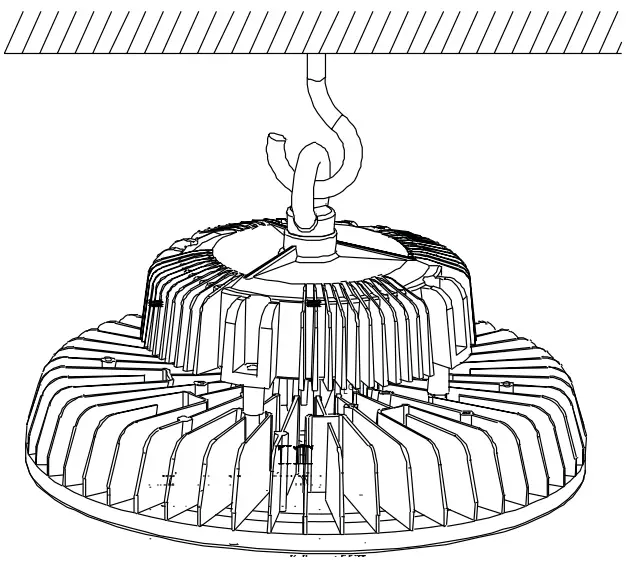

Secure the hook to the ceiling and hang the fixture from the hook.

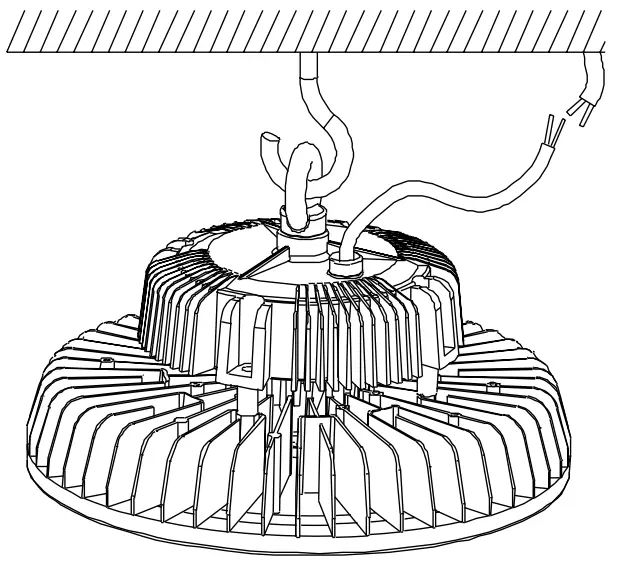

Connect the electrical cables; Brown-L, Blue-N, Yellow/Green-Ground. If using in wet locations, ensure all electrical connections and installation holes have a water-tight seal.

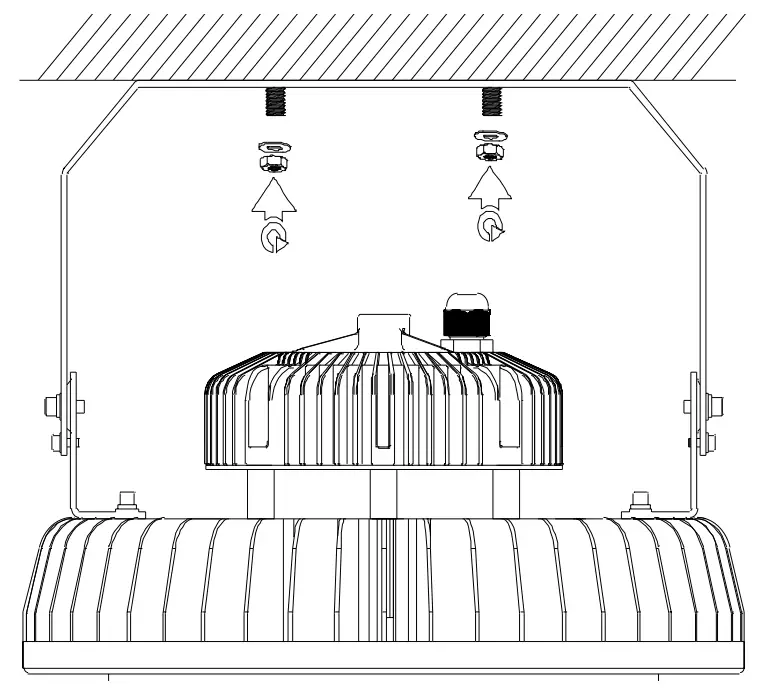

BRACKET INSTALLATION – Bracket sold separately.

Attach the bracket to the mounting surface.
Connect the electrical cables. Brown-L, Blue-N, Yellow/Green-Ground. If using in wet locations, ensure all electrical connections and installation holes have a water-tight seal.

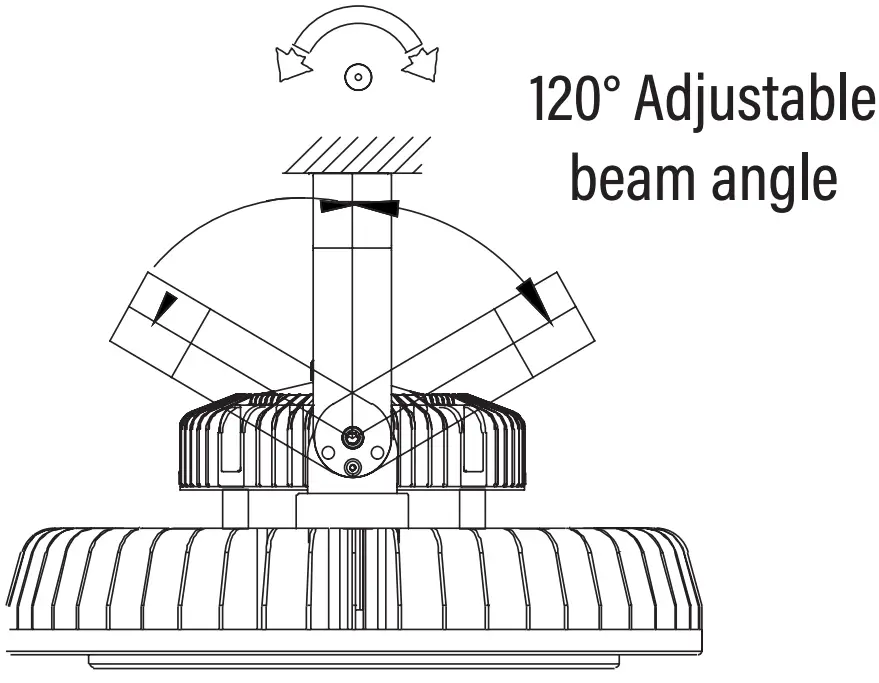

Adjust the bracket to the beam angle you need.

EMERGENCY DRIVER INSTALLATION – Sold separately. For use with drivers that are 200W or less.

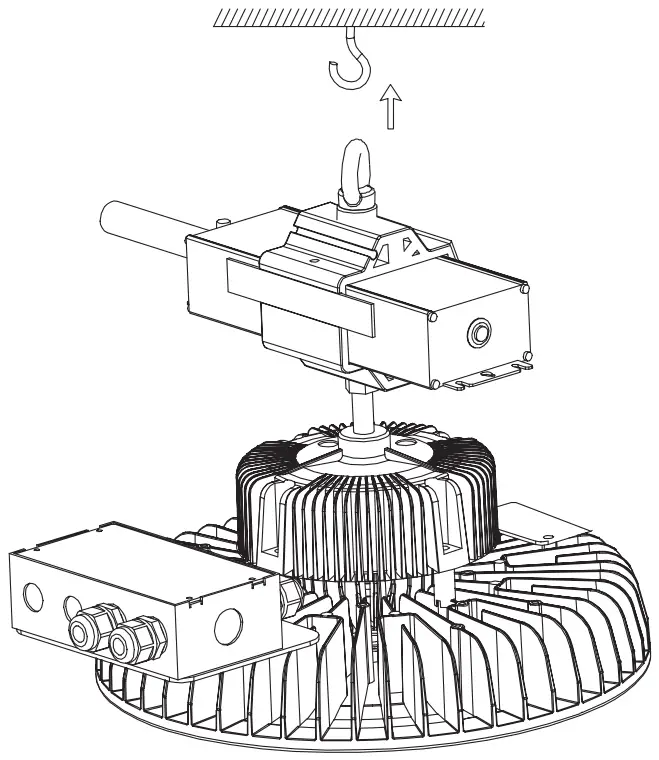

Drill a hole into the ceiling for the appropriate size hook (provided by the installer).

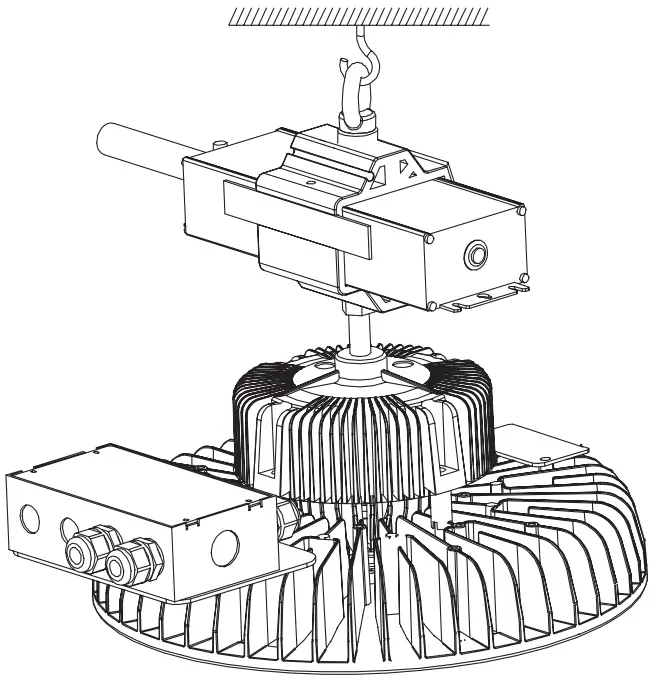

Secure hook to the ceiling and hang the fixture from the hook.

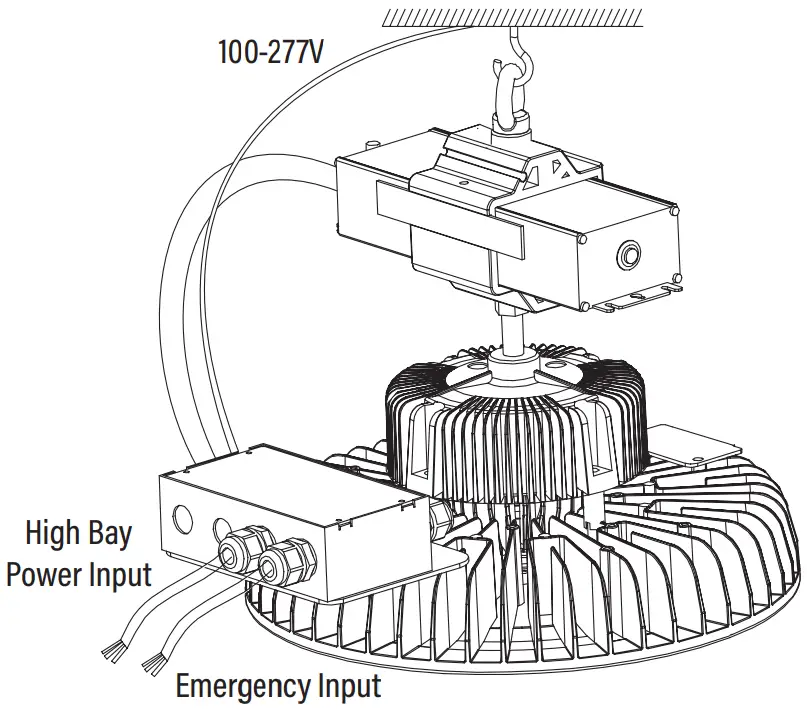

Connect the electrical cables; Black-L, White-N, Yellow/Green-Ground. If using in wet locations, ensure all electrical connections and installation holes have a water-tight seal.
