Mega Lite 1313 Outerbot Wash 340 Fixture Light User Manual

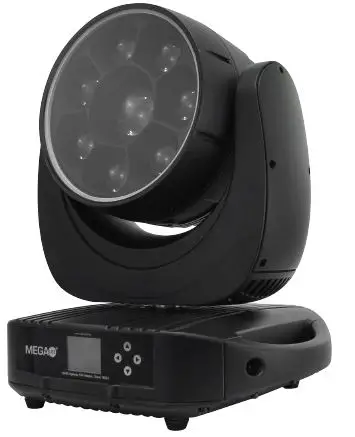

MEGA LITE 1313 Outerbot Wash 340 Fixture Light

Product Information

The Outerbot Wash 340 fixture is a temporary outdoor lighting fixture designed to provide bright, colorful lighting for events and gatherings. It features seven outer LED lights, one center LED,and one RGB halo LED. The fixture is rated IP65, which provides protection against dust particles and powerful water spray from any direction. It has a fastening system for easy installation and comes with a power cable, quick-release clamp mounts, safety cable, and user manual.

The fixture has electronic 100-240V AC 50/60Hz power supply and consumes 2.86 Amps / 338 Watts @120V of power. It has DMX 512, Artnet and sACN control protocols and comes with different channel modes including SSP 25CH, TOUR 30CH, TR16 37CH CMY 31CH, HSIC 27CH, PIXEL 52CH.

Product Usage Instructions

Before using the Outerbot Wash 340 fixture, ensure that it has not been damaged during transport. Follow the instructions below to ensure proper usage:

Protection Against Fire

1. Maintain a minimum of 1-foot distance from any type of flame.
2. Do not install the unit too close to a heat source.
3. Make sure cables are properly secured.
4. Do not point fixture lens towards the sun or direct light input.

Protection Against Electrical Fire

1. Disconnect power before servicing.
2. For connection to main power supply, follow the instructions on page 4.
3. The power supply must be earthed (electronically grounded).
4. This fixture must not be left on for long periods of time.

Protection Against Mechanical Hazards

1. Use secondary safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit.
3. Do not open unit while it is on. Risk of electrical shock.

Ingress Protection

The Outerbot Wash 340 fixture is rated IP65, which provides protection against dust particles and powerful water spray from any direction.

Main Power Connection

1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (Electronically grounded)
3. Replace fuse only with the specified type and rating. (F6.5A 250V)
4. This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz.
5. Power Link max 6 units at 110V and 12 units at 220V

The main power connection has different cable color codes for USA and EU. Follow the color codes below for proper connection:

DMX-512 Connection

The Outerbot Wash 340 fixture is equipped with 5-pin XLR Sockets for DMX input and output connection. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 5-pin XLR plugs and connectors in order to connect the controller with the fixture or the fixture with another.

Check that the unit has not been damaged during transport.

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.
2. Fixture is designed for temporary outdoor use.
3. Do not install the unit too close to a heat source.
4. Make sure cables are properly secured.
5. Maximum surface operating temperature: 130º.
6. Make sure fixture lens are not pointing towards the sun or direct light input.

Protection Against Electrical Fire

1. Disconnect power before servicing.
2. For connection to main power supply, proceed to page 4.
3. The power supply must be earthed (electronically grounded).
4. This fixture must not be left on for long periods of time.

Protection Against Mechanical Hazards

1. Use secondary safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit.
3. Do not open unit while it is on. Risk of electrical shock.

Ingree Protection

The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2 numbers (i.e. 65) where the numbers define the fixture rating. The first number indicates the size of a particle that can enter the fixture. The second number indicates the extent of protection against water entering the fixture. An IP65 rating in this fixture indicates that dust particles can not enter the fixture, and there is protection against powerful water spray from entering the fixture from any direction.

What is Included

• 1pc Outerbot Wash 340 fixture
• 1pc Power Cable
• 2pc Quick Release Clamp Mount
• 1pc Safety Cable
• 1pc User Manual

Specifications

Part Numbers

Fixture
1313 – Outerbot Wash 340

Mechanical Specifications

• Housing: Die Cast Aluminum
• IP Rating: IP65
• Fastening System: Quick Release Clamp Mount, Bidirectional
• Power Connection: Seetronics SACX3FX IP 65 Panel Mount Connection Input
• Signal Connection: 5 Pin XLR In and Out & Artnet RJ45 In and Out
• Pan Movement: 540° (16 bit, 3 Phase Stepper Motor)
• Tilt Movement: 220° (16 bit, 3 Phase Stepper Motor)
• Zoom Angle: 7° Beam Angle to 33° Field Angle (16-bit)
• Operating Temp: -4°F – 113°F
• Fuse: Panel Mount Fuse (5x20mm T6.5A250V)

Electrical Specifications

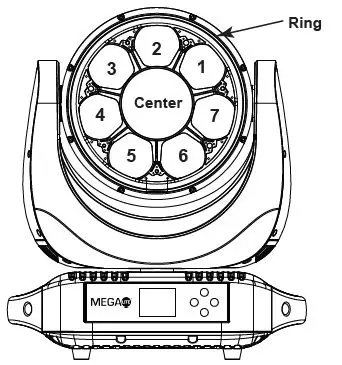

7 Outer LED’s

• Light Source: Seven 40W RGBW LED (16-bit Dimming)
• Color Temp White: 8436K (White Emitter Only)
• CRI: (Warm White) 73
• Segments: 7
• Lumen Output: 5654lm (Narrow) 3546lm (Wide)

1 Center LED:

• Light Source: One 60W RGBW LED
• Color Temp White: 8380K
• Prism: Bi-Directional, Speed Control

1 RGB Halo LED’s:

• Light Source: 68 RGB SMD LED
• Power Supply: Electronic 100-240V AC 50/60
• Power Consumption: 2.86 Amps / 338 Watts @120V

Control System:

• Control Protocols: DMX 512, Artnet, sACN
• RDM: Yes
• Channel Modes: SSP 25CH, TOUR 30CH, TR16 37CH,CMY 31CH, HSIC 27CH, PIXEL 52CH
• Display: Auto Flip Display

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (Electronically grounded)
3. Replace fuse only with the specified type and rating. (F6.5A 250V)
4. This device is equipped with auto-switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz
5. Power Link max 6 units at 110V and 12 units at 220V

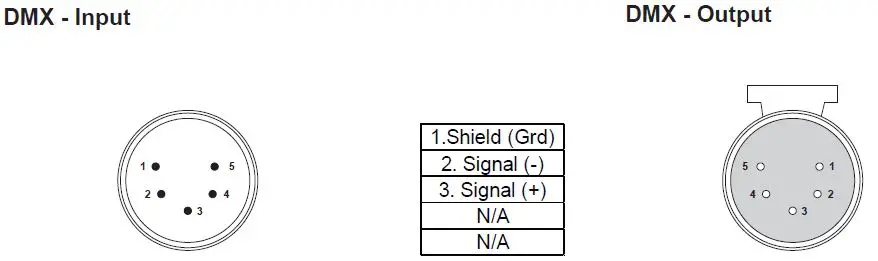

DMX-512 Connection

The fixture is equipped with 5 pin XLR Sockets for DMX input and output connection. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 5 pin XLR plugs and connectors in order to connect the controller with the fixture or the fixture with another.

Caution!
On the last fixture the DMX signal needs to be terminated with a terminator. Pre-manufactured terminator are available for purchase from your Mega-Lite dealer item #P-DMX-T.

Display Control

Main Control

The control board on the fixture base is your interface to access and control all the functions on the unit.
The LCD display gives you a code view of the options and functions. The following will explain each function.

PASSWORD: To unlock the fixture display press and hold the Back Arrow. Use Password Up Down Up Down Enter to access the display settings. (Password requirements may be turned off in the Options menu under Display Lock setting)

ADDRESS: Press Enter to view the fixture start Channel. Press Enter again to make adjustment to the fixture address using the up/down buttons. Press Enter to confirm or Mode to go back. The fixtures start address will need to match the DMX Controllers assigned DMX start channel.

Channel Mode: Channel operating mode must match the DMX Controllers operating mode.

• HSIC: 27 Channel
• SSP: 25 Channel
• TOUR: 30 Channel
• TR16: 37 Channel
• PIXEL: 52 Channel
• CMY: 31 Channel

RUN MODE:

DMX512: Fixture connected via DMX signal
ARTNET: Fixture connected via Artnet connection (check with controller manufacture for artnet set up)
ARTNET TO DMX: Fixture connected via Artnet connection with DMX outputs engaged
sACN: Fixture connected to controller via sACN signal
AUTO: Fixture will run built in Pre Programs
CUSTOM 1: Fixture will run program created on the Edit portion of the display setting (see page 7)
CUSTOM 2: (Same as custom 1)

OPTIONS: Fixture Settings

• PAN INVERT: Inverts heads Pan movement
• TILT INVERT: Inverts heads Tilt movement
• PERFORMANCE: Fixture cooling settings
  • STUDIO: LED Intensity will decrease fan noise at 45dB
  • POWER: LED Intensity at max fan always engaged
  • LIVE: Fan will engage as needed
• BLACKOUT: LED will turn off when head is in motion
• DIMMER: Dimming setting 0-4
• LED PWM: LED Pulse Wave Modulation refresh settings
  1200HZ-XFINE+-200
  2400HZ-XFINE+-200
  4000HZ
  6000HZ
  25000HZ
• FULL POWER CCT: All LED emitters maximum default to full setting
  • 3200K
  • 4200K
  • 5600K
  • 10000K
    NORMAL: No limitation
• XY OFFSET: Show and Hide setting for the refresh frequency
• DMX ERROR: If DMX Signal is lost fixture will either
  • Save: Hold the last DMX Command
  • Black: All DMX channels will be turn down to 0 value
• DISPLAY ON: Display Time out setting
  • Off: Will leave display on
  • On: Will activate time out setting which will turn of display after inactivity
• DISPLAY LOCK: Requires Password to open display setting
• LOAD PARA: Fixture firmware update (manufacture setting)
• SETTING: Fixture Clearing Settings
  • Recovery: Returns Fixture to original factory settings
  • Clean Edit 1: Erases Edit 1 Program setting
  • Clean Edit 2: Erases Edit 2 Program setting
• NETWORK:
  • Net Switch: Network settings switch 2. or 10.
  • Universes: Sets fixture Universe 0-255
  • IP Mode: Sets Default IP Setting or Customized
• PT ENCODER: Engages or Disengages Pan & Tilts encoder functions.

EDIT: Fixture Editor for programmed Scenes or Chase

EDIT 1: Edit 1 or 2 can be played back on the Runmode section of the display control. under custom 1 or custome 2

STEP: Select from a single step scene or multiple step chase. (1-30)
Select fixture attributes that would like to be adjusted

• PAN: (0-255)
• TILT: (0-255)
• ZOOM: (0-255)
• RED WASH (0-255)
• GREEN WASH (0-255)
• BLUE WASH (0-255)
• WHITE WASH (0-255)
• STROBE (0-255)
• RED CENTER (0-255)
• GREEN CENTER (0-255)
• BLUE CENTER (0-255)
• WHITE CENTER (0-255)
• PRISM (0-255)
• RED RING (0-255)
• GREEN RING (0-255)
• BLUE RING (0-255)
• TIME (0-255 SECONDS)
• USE ( YES/NO ) ACTIVATE SCENE: SCENE
• NEEDS TO BE ACTIVATED TO BE PART OF THE SCENE OR CHASE

MANUAL: Fixtures Manual Settings

• AUTO TEST: Runs fixture test for all functions
• CHANNEL: Gives control over every function via display
• DEBUG HIDE: Manufacture Setting
• RESET:
  • ALL: All fixture function to be reset to home position
  • PT: Pan & Tilt reset to home position

INFO: Fixture Operating information

• FIXTURE HOURS: Gives control over every function via display
• LED USE HOURS: Manufacture Setting
• TEMPERATURE: Current fixtures operating internal temperature
• INFO: operating software version and update date

SERVICE: Manufafactures function adjustment setting (password protected)

DMX Profile

Outerbot Wash 340

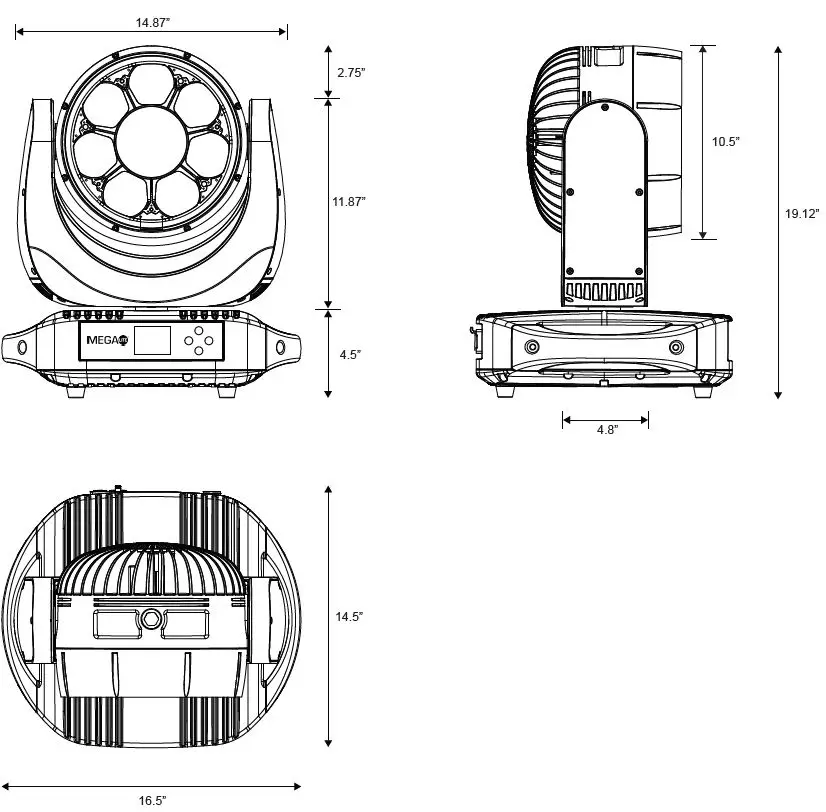

Size and Weight

Pan & Tilt: DMX Values: 0

Installation

Caution!

1. The Installation must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injuries, if you have doubts concerning the safety do not install.
3. Unit is to be 24 inches away from flammable materials.
4. Use high quality installation equipment to hang the unit.
5. Internal Fan Filters must be cleaned periodically as not to block airflow.

When rigging the it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to calculating working weight loads, material being used and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secure with a secondary safety attachment. The installation location of the fixture has got to be built in the way that it can hold ten times the weight for one hour with out any failures.
Installation should be checked at least one time a year by a skilled professional.

Unit Can be used in any of these directions

General Terms & Conditions

1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status.
2. Cash, check, cashiers check, ACH, wire transfer, MasterCard, Visa, Discover, and American Express are accepted forms of payment.
3. Past due invoices will be charged 1.5% per month finance charge. Uncollected invoices are subject to be turned over to collection.
4. The reseller will pay all reasonable expenses incurred in the course of collections.
5. The proper venue for litigation will be Bexar County, Texas.
6.  Returned checks will be charged a $50.00 fee.
7. All prices are in U.S. Dollars.
8. All prices and specifications are subject to change without notice, sales order confirmations are emailed and will reflect correct pricing.
9. All terms are insured, monitored, analyzed and approved by Coface USA. Changes in credit line and approved terms can change without notice. ompany authroization of credit is based on Coface approvals. Any conflicts or disagreements should be referred to: 650 College Rd East Suite 2005 Princeton, NJ 08540. 1-609-469-0400. E-mail: [email protected]
10. Returns are subject to 25% restocking charge plus any necessary charges for repair or re-packaging.

Shipping Terms & Conditions

1. All orders are EXW San Antonio, TX (EXW means that a buyer/reseller incurs the risks for bringing the goods to their final destination) any deviation needs to be done in writing.
2. UPS ground shipping is the preferred shipping method. Requests for specific carriers may require use of the customer’s account number and may incur an additional charge for handling.
3. Drop shipments are subject to all return charges at resellers expense. Drop shipments are not allowed outside of the territorial United States.
4. NO C.O.D. shipments allowed.
5. Returned and undelivered shipment charges are the buyer/resellers responsibility and will be billed to the buyer/reseller.
6. The freight carrier and Company [email protected] should be notified upon receipt of damaged freight, discrepancies, or non-conformities
7. Upon acceptance in good order by Carrier from Company, the material becomes the property of the Reseller.

Warranty and Service Procedures

1. All returns require an RMA# (Return Merchandise Authorization number) before returning goods for any reason. For a service or warranty RMA, please email [email protected] or call (210)684-2600. For sales or demo returns, please contact [email protected].
2. Case will be created and an RMA notice will be emailed. All units received must have the RMA # included with the unit as well as on the shippping label.
3. All shipping charges are the responsibility of the customer: MEGA Systems, Inc., Service, 18668 HWY 16 N., Helotes, TX 78023

Warranty for Products Purchased Before 2021
Unless otherwise stated in writing, product is covered by a one year parts and labor limited warranty and is subject to same limitations listed under the limited warranty exclusions listed below.

Warranty for Products Purchased After January 1, 2021

MEGA SYSTEMS INC (”MSI”) hereby warrants to the original purchaser/owner (Customer”), MSI products to be free of manufacturing defects in material and workmanship, for the warranty periods as defined below from the original purchase invoice date. This warranty applies exclusively to new MSI branded and/or distributed products listed below, purchased from an MSI AUTHORIZED dealer/reseller. This warranty is not transferrable and may or may not apply to products sold and/or forwarded outside the United States. Please contact MSI for applicable regional product warranty information.

The purchase of MSI product constitutes the Customer’s acceptance of all warranty terms and conditions as listed in this limited warranty statement. This warranty provides the Customer with legal rights, which may vary from state to state. Please contact MSI regarding warranty questions prior to purchasing.

Product / Series
Battery Powered LED
Moving LED, Hazers
Outdoor IP-Rated LED
House Light LED, Decorative LED, Compact LED, iCandy LED, Theatrical LED, Strobe Wash LED, Follow Spot LED, Production & House of Worship Control, Architectural Control, Theatrical Control, Dance Venue & Mobile DJ Control, Direct View LED Displays, and MV Controllers

Warranty Period                                                                        Coverage
Six month battery, one year all other components                     1, 2
One Year                                                                                    2
Two Years                                                                                   3
Three Years                                                                                 4

1. Battery: 183 days/six months 2. Parts and Labor: 365 days/one year 3. Parts and Labor: 730 days/two years 4. Parts and Labor: 1095 days/three years
This limited warranty excludes any defects caused by, resulting from, or relating to the following:
Normal wear and tear of lamps, color media, brushes, contact rings, lamp sockets, belts and other parts prone to wear and tear.
Misuse, abuse, improper handling, accident, alteration or attempts to repair by or on behalf of the owner or any person not authorized by MSI.
Damage to the product resulting from acts of God, including but not limited to, earthquakes, hurricanes, tornadoes, lightning and other natural disasters, fire, explosion, flood, riots, civil disorder or any other cause beyond the reasonable control of MSI.
Exposure to harsh or excessively corrosive environmental conditions (whether indoors or outdoors) including, but not limited to, extreme temperature, humidity, atmospheric conditions (including salinity or pressure), radiation (UV, infrared or nuclear), shock and conditions which exceed the product’s Ingress Protection (”IP”) rating.
Use of the product in a manner which exceeds the applicable product specification, including, but not limited to, exposure to excessive, insufficient, or other voltage conditions.

Installation or use of the product not in accordance with the technical documentation, MSI guidelines (as may be posted on its website at www.megasystemsinc.com from time to time or otherwise designated by MSI or its brands) or applicable building and electrical codes, regulations, and standards.
Failure to maintain the product in accordance with the technical documentation.
Natural degradation and color shift of the LED source over the course of normal product use.
Slight deviations in the specified values of intensity and color that do not affect the functionality of the product.
Use of the product not for its intended purpose.

All warranty claims are evaluated under the terms of this limited warranty. If a product falls within the warranty period and if, upon examination by MSI, it is found to have failed for a covered cause, MSI will, at its sole discretion, repair or replace the defective part or product or reimburse the purchaser a pro-rated portion of the purchase price based on the percentage of the warranty period still remaining as of the date that the returned product was received by MSI. Should a replacement part or product be discontinued or unavailable, MSI reserves the right, in its sole and absolute discretion, to substitute a comparable replacement part or product for the defective part of product. MSI warranty obligation herunder is limited solely to the repair or replacement of or reimbursement for the particular parts or products determined by MSI to have failed for a covered cause within the warranty period. In no event shall MSI be responsibile to replace or reimburse purchaser for any products or portions of a system that MSI determines has not failed for a covered cause within the warranty period, even if such other products or portions of a system are used together with products being repaired or replaced by MSI under this warranty and the repaired product differs in brightness, colors or any other attribute after the repair.
Costs of removal, shipping to MSI or its authorized representative and reinstallation are solely the responsibility of the purchaser. If MSI determines that the product is covered by this limited warranty, it will only pay for parts and labor as indicated by product type. If MSI determines that the product is not covered by this limited warranty, the purchaser will have the option of paying for the repair if the product can be repaired and the purchaser shall be responsible for the cost of shipping the repaired product back to the purchaser. MSI reserves the right, in its sole and absolute discretion, to decline any repair.

IN NO EVENT SHALL MEGA SYSTEMS, INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR PUNITIVE LOSS OR DAMAGE OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUES, LOSS OF USE OF THE PRODUCT OR ANY OTHER GOODS OR ASSOCIATED EQUIPMENT, DAMAGE TO ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF SUBTITUTE PRODUCTS, FACILITIES OR SERVICES, DOWN TIME COST, INSTALLATION OR LABOR COSTS, OR CLAIMS OF THE PURCHASER’S CUSTOMERS, WHETHER BASED ON WARRANTY, CONTRACT OR NEGLIGENCE, ARISING IN CONNECTION WITH THE SALE, USE OR REPAIR OF THE PRODUCT. MEGA SYSTEMS INC’S MAXIMUM LIABILITY SHALL NOT, IN ANY CASE, EXCEED THE PURCHASE PRICE OF THE PRODUCT THAT GIVES RISE TO THE CLAIM.
EXCEPT FOR THE LIMITED WARRANTY SET FORTH HEREIN, ALL PRODUCTS SOLD BY MEGA SYSTEMS, INC. ARE SOLD “AS IS” WITHOUT ANY WARRANTY, EXPRESS, OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH ARE EXPRESSLY AND SPECIFICALLY DISCLAIMED BY MEGA SYSTEMS, INC.

Customer Support

MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service department.
Monday – Friday 9am to 6pm CST
(210)684-2600
[email protected]

Manual Version

Please visit www.mega.lighting for the most up-to-date manual version.

Manual Version
2.0
Date
03/23/2023
Fixture Software
1.0.0
Notes

MEGA-LITE
18668 Highway 16N
Helotes, TX 78023
Phone (210)684-2600 / Fax (210)855-6279 www.mega.lighting / [email protected]

References

• Mega Systems Inc – a family owned and operated company
