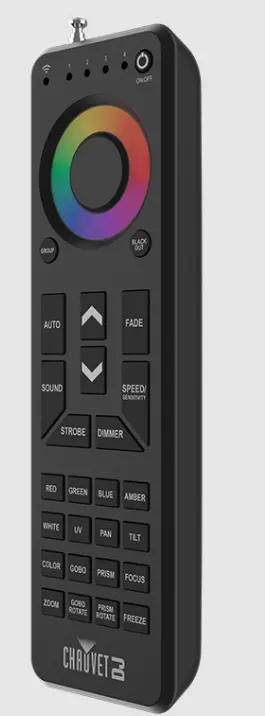

CHAUVET DJ RFC XL Handheld Lighting Remote Control
About This Guide
The RFC-XL Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
- RFC-XL
- Alkaline battery (A23)
- Quick Reference Guide
To Begin
Unpack the RFC-XL and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
Batter Power
The RFC-XL is battery operated. Ensure that the Alkaline battery (A23) is installed prior to operating the remote.
- Movement may cause the back lights to turn on and drain the battery will being transported. Turn off the unit when not in use.
RFC-XL Remote Control
The RFC-XL can be operated with any Chauvet RF enabled fixture. RF wireless control must be set on the fixture. To enable RF wireless control in the fixture, locate the RF function in the Menu Map and enable RF.
Binding
To bind the fixture to the remote, navigate to the <BIND> option in the fixture’s Menu Map and follow instructions.
NOTE: Once the remote has binded to the fixture, it is possible to select a group on the fixture. Assigning the fixture to a group will be important when using the remote, as the remote can command multiple groups at once.
Radio Frequency Public Linking
The RFC-XL can also operate with fixtures that are not binded by using the RF public linking option. Locate the RF function in the menu map and select the public linking option.
NOTE: Public operation allows the fixture to respond to all RF signals and undesired results may present themselves.

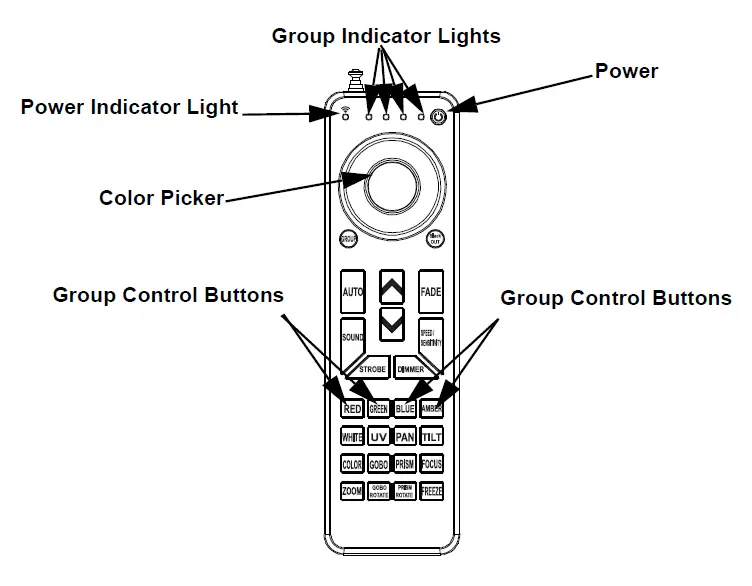

Overview
RFC-XL Remote Operation
The RF remote functions will vary from fixture to fixture. Some RF functions on the remote may not be applicable.
| Remote | Function |

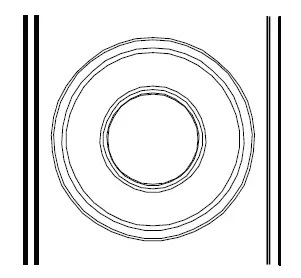

| COLOR PICKER The color picker can be used to select colors manually instead of cycling through preset colors. In addition, the color picker can increase or decrease the value of several functions in the fixture such as the dimmer, pan, or tilt.To manually select a color or adjust the value of a function:
|

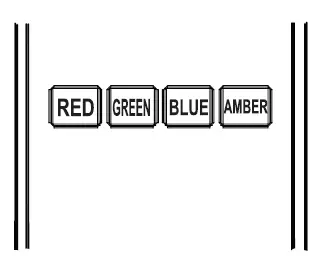

 | GROUP To select a group on the remote:
NOTE: When a group is selected, the group indicator light will remain on. Several groups may be selected at once. If several groups have been selected, several indicator lights will remain on until the groups are turned off. |
| |

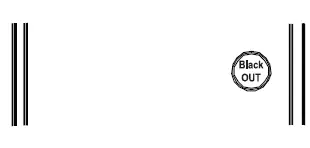

 | BLACK OUT Turns off everything on the fixture, or selected fixture group.
To turn off this function, press <BLACK OUT> again. |
| Remote | Function |

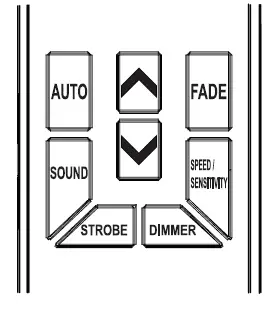

 | AUTO Triggers built in programs in the fixture.
FADE
NOTE: Does not apply to all fixtures or auto programs. Fade speed is fixed and cannot be adjusted. SOUND
STROBE
DIMMER
|
| Remote | Function |

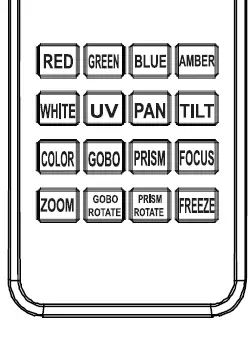

 | PAN Rotates the fixture left or right.
TILT
COLOR
GOBO
PRISM
FOCUS
ZOOM
GOBO ROTATE
PRISM ROTATE
FREEZE
NOTE: The RF remote will not respond to any inputs when Freeze is activated. If the product does not respond when a button is pressed, try pressing <FREEZE>. Freeze may have been activated. |
