RFC Palm Sized Remote Control
Owner’s Manual
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Ensure that the Alkaline battery (A23) is installed prior to operating the remote.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

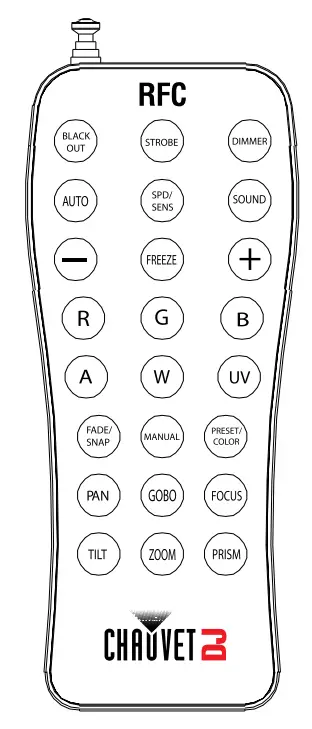

| Blackout | Blackout |
| Strobe | Strobe mode (+ and keys can be used to select the stroboscopic speed) |
| Dimmer | brightness adjustment (can be adjusted by +, ) |
| AUTO | Self walking mode P 1 P14 (Program can be selected by +, ) |
| Spd/Sens | works in self propelled and voice activated modes (self propelled speed or voice activated sensitivity can be controlled by + and keys) |
| Sound | Voice control mode |
| R, G. B, A. UV | corresponding Par lights R, G, B, A, W, UV (brightness can be adjusted by +, – keys) |
| Fade/snap | Fade /snap |
| Manual | Manual dimming mode |
| Freeze | programme (match key) |
| Preset | Static color mode (Press to switch a color at a time) |
| TILT | vStatic color mode (Press to switch a color at a time) |
| Pan | x axis adjustment |
| Focus | Adjust the focal length |
| gobo | pattern plate adjustment |
| prism | prism adjustment |
