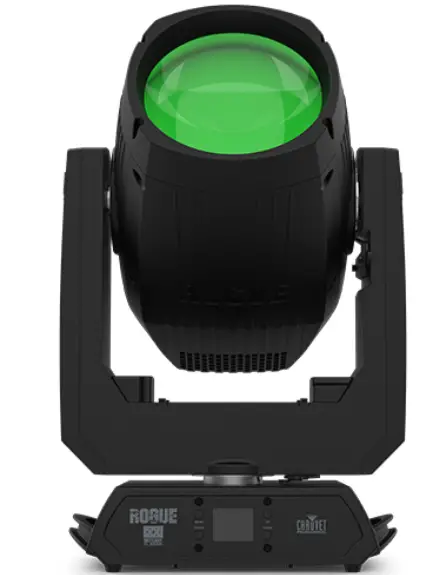

ROGUE Chauvet Pro Outcast 1L Beam

About This Guide
The Rogue Outcast 1L Beam Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
DO NOT leave any flammable material within 80 cm of this product while operating or connected to power.
DO NOT submerge this product. Temporary outdoor operation is fine (IP65).
Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:
- Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
- Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
- Locations that are prone to flooding or being buried in snow.
- Other areas where the product will be subject to extreme radiation or caustic substances.
CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
CAUTION: This product’s housing may be hot when lights are operating.
USE a safety cable when mounting this product overhead.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket or the handles to carry this product. Do not carry by the moving head.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 34.4 ft (10.5 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.
In the event of a serious operating problem, stop using immediately.

What is Included

Rogue Outcast 1L Beam
Sermonic Powertone IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide

QUICK REFERENCE GUIDE

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Replacing the Fuse

Disconnect the product from power.
Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
Remove blown fuse and replace with a good fuse of the same type and rating.
Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue Outcast 1L Beam will work with a DMX controller using a 5-pin IP-rated DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue Outcast 1L Beam uses a 5-pin IP-rated DMX data connection for its DMX personalities: 17CH and 19CH. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer, as not all DMX controllers have this capability. The Rogue Outcast 1L Beam supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For Chauvet’s line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

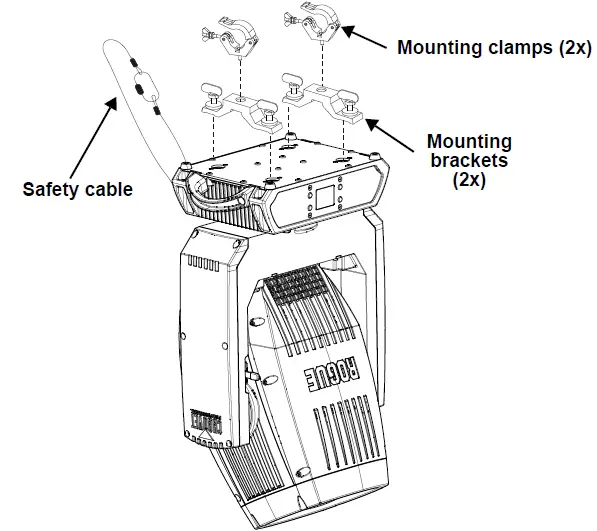

Mounting Diagram

Overhead Mounting

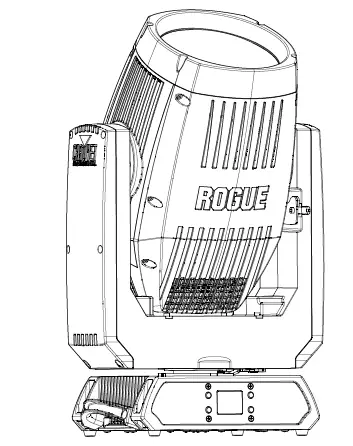

Floor Mounting

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Refer to the Rogue Outcast 1L Beam product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels				Description
Address	001–512				Sets the starting address
Run Mode	DMX	17CH			Selects the DMX personality
		19CH
	Auto Test				Auto test all functions
	Manual Test	Pan		0–255	Manually control and test all settings through the control panel
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Color
		Gobo
		Gobo Rotate
		Prism1
		Prism1 Rotate
		Prism2
		Prism2 Rotate
		Frost
		Focus
		Fine focus
		Special Function
Setup	Pan Reverse		ON		Reversed pan
			OFF		Normal pan
	Tilt Reverse		ON		Reversed tilt
			OFF		Normal tilt
	Screen Reverse		YES		Inverted screen display
			NO		Normal screen display
			AUTO		Automatic screen display
	Pan Angle		540		540° pan range
			360		360° pan range
			180		180° pan range
	Tilt Angle		270		270° tilt range
			180		180° tilt range
			90		90° tilt range
	BL. O. P/T Move		YES		Blackout while panning/tilting
			NO		Disable blackout while panning/tilting
	BL. O. Color Move		YES		Blackout while color wheel is moving
			NO		Disable blackout while color wheel is moving
	BL. O. Gobo Move		YES		Blackout while gobo wheels are moving
			NO		Disable blackout while gobo wheels are moving

Main Level	Programming Levels			Description
Setup	Backlight Timer	30S		Display turns off after 30 seconds
		1M		Display turns off after 1 minute
		5M		Display turns off after 5 minutes
		ON		Display stays on
	PWM Option	600Hz		Sets the Pulse Width Modulation Frequency (PWM)
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Fan Mode	Auto		Fan speed according to product temperature
		Full		Fan speed set on high
		ECO		Quiet mode
	USB Update	NO		Enables/disables software update using USB
		YES
	Reset Function	Pan/Tilt	YES NO	Reset individual functions or all functions from start-up
		Prism
		Color
		Gobo/ Gobo Rotate
		Frost/Focus
		All
	Factory Settings	YES		Reset to factory default settings
		NO
Sys Info	Ver:	V_		Shows firmware version
	Running Mode:	_ _ _		Shows current running mode
	DMX Address:	_ _ _		Shows current DMX address
	Temperature:	_ _ C		Shows the product’s temperature in °C
	Fixture Hours	_ _ _ _ _		Shows number of hours product has been powered on
	LED Hours:	_ _ _ _ _		Shows number of hours LED has been on
	UID:	_ _ _ _ _ _ _ _ _ _ _ _		Shows product UID
	Fan 1	_ _ _ _		Shows fan speed
	Fan 2	_ _ _ _
	Base Fan 1	_ _ _ _		Shows base fan speed
	Base Fan 2	_ _ _ _

DMX Values

17CH	19CH	Function	Value	Percent/Setting
1	1	Pan	000 ó 255	0–100%
2	2	Pan fine	000 ó 255	Fine control (16-bit)
3	3	Tilt	000 ó 255	0–100%
4	4	Tilt fine	000 ó 255	Fine control (16-bit)
5	5	Pan/tilt speed	000 ó 255	Fast to slow
6	6	Dimmer	000 ó 255	0–100%
–	7	Dimmer fine	000 ó 255	Fine control (16-bit)
			000 ó 003	No function
			004 ó 007	On
7	8	Strobe	008 ó 076 077 ó 145	Synchronized strobe, slow to fast Pulse strobe, slow to fast
			146 ó 215	Random strobe, slow to fast
			216 ó 255	On
			000 ó 003	Open
			004 ó 007	Red
			008 ó 011	Orange
			012 ó 015	Cyan
			016 ó 019	Light green
			020 ó 023	Light yellow
			024 ó 027	Lavender
			028 ó 031	Pink
			032 ó 035	Yellow
8	9	Color wheel	036 ó 039	Magenta
			040 ó 043	Light blue
			044 ó 047	Amber
			048 ó 051	CTO 5600K
			052 ó 055	CTO 6500K
			056 ó 059	UV
			060 ó 187	Split colors
			188 ó 219	Clockwise color scroll, fast to slow
			220 ó 223	Stop
			224 ó 255	Counterclockwise color scroll, slow to fast

17CH	19CH	Function	Value	Percent/Setting

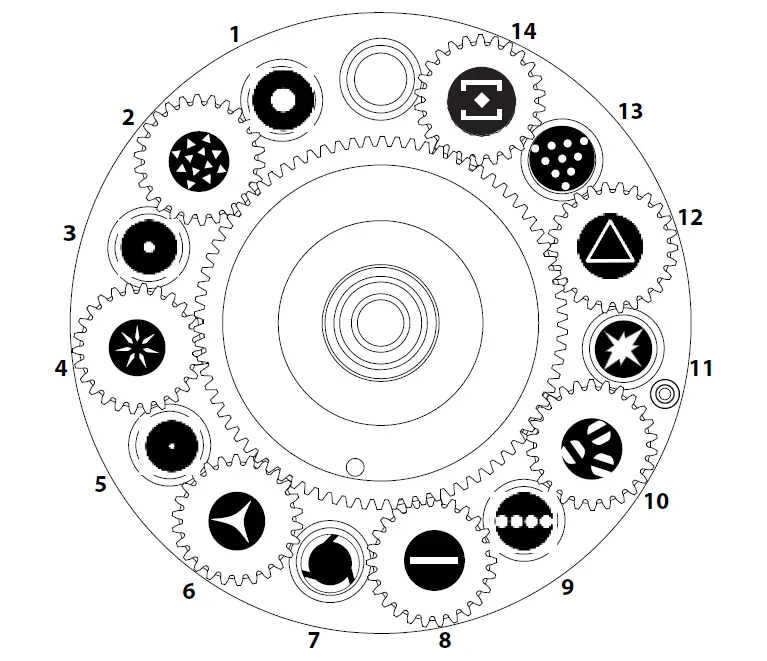

9	10	Rotating gobo wheel	000 ó 003 004 ó 007 008 ó 011 012 ó 015 016 ó 019 020 ó 023 024 ó 027 028 ó 031 032 ó 035 036 ó 039 040 ó 043 044 ó 047 048 ó 051 052 ó 055 056 ó 063 064 ó 071 072 ó 075 076 ó 079 080 ó 083 084 ó 087 088 ó 091 092 ó 095 096 ó 099 100 ó 103 104 ó 107 108 ó 111 112 ó 115 116 ó 119 120 ó 123 124 ó 131 132 ó 191 192 ó 255	Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Gobo 14 Gobo 14 shaking, slow to fast Gobo 13 shaking, slow to fast Gobo 12 shaking, slow to fast Gobo 11 shaking, slow to fast Gobo 10 shaking, slow to fast Gobo 9 shaking, slow to fast Gobo 8 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 1 shaking, slow to fast Open Clockwise gobo scroll, fast to slow Counterclockwise gobo scroll, slow to fast
10	11	Gobo rotation	000 ó 063 064 ó 145 146 ó 149 150 ó 231 232 ó 255	Gobo index Gobo rotation, fast to slow Stop Reverse gobo rotation, slow to fast Bounce effect, short to long
11	12	Prism 1	000 ó 004 005 ó 255	No function Prism insert
12	13	Rotating prism 1	000 ó 127 128 ó 189 190 ó 193 194 ó 255	Prism index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
13	14	Prism 2	000 ó 004 005 ó 255	No function Prism index
14	15	Rotating prism 2	000 ó 127 128 ó 189 190 ó 193 194 ó 255	Prism index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
15	16	Frost	000 ó 255	0–100%
16	17	Focus	000 ó 255	0–100%

17CH

19CH

Function

Value

Percent/Setting

–

Fine focus

000 ó 255

Fine control (16-bit)

Control

000 ó 007

008 ó 015

016 ó 023

024 ó 031

032 ó 039

040 ó 047

048 ó 055

056 ó 095

096 ó 103

104 ó 111

112 ó 119

120 ó 127

128 ó 135

136 ó 143

144 ó 151

152 ó 159

160 ó 167

168 ó 231

232 ó 255

No function Pan/tilt blackout Color blackout Gobo blackout
Pan/tilt/color blackout Pan/tilt/gobo blackout Pan/tilt/color/gobo blackout No function
Pan reset Tilt reset Color reset Gobo reset No function Prism reset Focus reset All reset|
No function Frost reset
No function
