X-l300x Led 300w Beam Moving Head User Manual

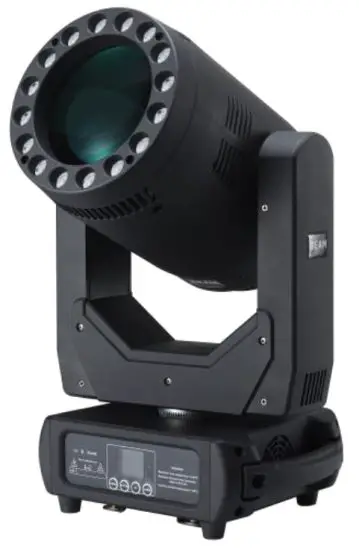

LED 300W Beam Moving Head

User Manual

Thank you for choosing our LED 300W moving head light. For your own safety, please read this manual before installing the device. This manual covers the important
information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.

Safety Tips
To ensure your safety and correct use of lamps. Please read the following safety tips carefully before use to avoid unnecessary failures and injuries.

1. Non-professionals, do not disassemble the lamps and their accessories without authorization.
2. Rated voltage range: AC110V—120V/250Hz or AC200V—240V /50HZ (must be selected).
3. Do not irradiate the light beam on flammable objects, and keep a distance of at least 1M between the lamp and flammable objects.
4. The ambient temperature of the lamp: -15℃-40℃, the highest temperature of the lamp surface is 40℃.
5. Keep the lamps away from liquid substances and humid environments.
6. Before using the lamp, make sure that the lamp is well-grounded, and do not install or remove any parts of the lamp with power on.
7. When installing the lamps, the fixing screws must be fastened, with safety cables, and regular inspections.
8. It is recommended that the continuous working time of the lamp should not exceed 20 hours.
9. During use, if the lamp is abnormal, stop using the lamp in time.

Specification

Power consumption
● Input Voltage: AC90-260V 50/60Hz
● Power:500W

Lamp
● Main light use 300W WHITE LED,8000K
● 16 RGBW Cree LEDs for HALO Effect
● 20000 hours lifelong time

Optical
● Beam angle:3°
● Liner dim: 0-100%
● Strobe: 0-20s

Color wheel
● 1 color wheel: 7 wheels+Blank

Gobo Wheel
● 1 rotating gobo wheel：7 changebale gobo wheel+1 blank
● 1fixed gobo wheel：8 fixed gobo wheel+1 blank

Prism
● A 16 prism and a honeycomb prism, can be superimposed, variable speed rotation

Frost
● Independent fog lens, soft light

Focus
● Electronic focusing: ultra-smoothly adjust the focus, adjust the sharpness of the pattern

Scan
● Driven by a three-phase motor, fast, quiet, with automatic error correction and reset
● Pan：540°
● Tilt：270°

Cooling system
● Use a powerful silent fan
●Temperature protection function: when the device temperature reaches 40, the fan starts to rotate, when the device reaches 70°

Control

● International standard DMX512 signal control connection
● Control channel mode 25/18CH
● Product size: 330(L)*230(W)*560(H)mm,
● Product weight: net weight: 15.7kg, gross weight: 20kg

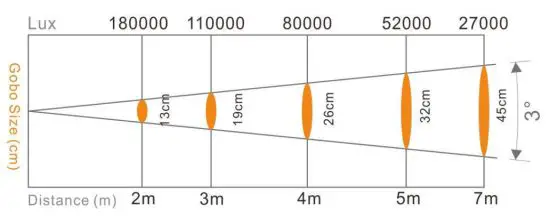

Photometric datasheet

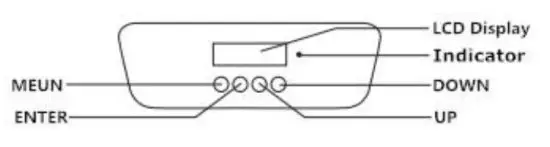

Menu Display instruction

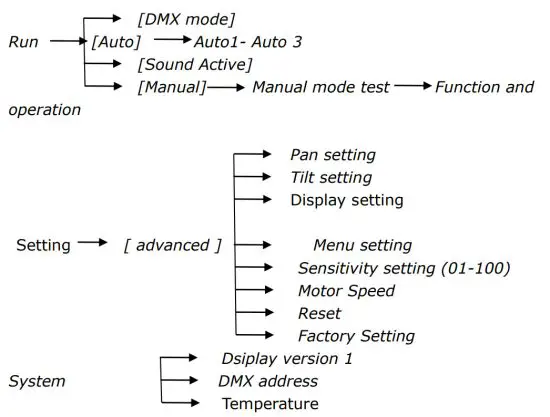

Menu

Address setting→ [set dmx address]

DMX Chnnel

6. 25/18 channels mode

After-sale service

Our company has long provided customers with responsible technical advice.
If the product fails and needs to be repaired, please show the product warranty card and fill in the relevant content truthfully. At the same time, we also hope that the customer will promptly feedback the product problems to us, so that we can improve the product in the first time.
In addition to lamps, the following accessories can also be selected:
Accessories: Options: customer requirements

Warranty card
Customer Selling Shop
Company：
Consign：
Add：
Tel：
Mob：

Note: The above blanks must be filled in and stamped truthfully by the end user and the point of sale, otherwise the warranty will not be granted.(Please see below for the warranty period and terms)
Warranty: 1 year since the date bought. (3) Failure or damage caused by force majeure;
Warranty terms: 1. Use this product under normal conditions during the warranty period (4) Failure or damage caused during transportation and unloading;
In the event of failure, you can present this (5) failure or damage caused by failure to follow the instructions for use based on the contents of this warranty clause;
Warranty card and purchase bill (copy), disassemble the product in the designated service center or (6) without the authorization of the manufacturer or non-professionals;
Manufacturers enjoy free maintenance services. (7) Due to the use of a control system that is not approved by the factory or not supported by the factory
2. During the repair period, paid repair services will be implemented in the following situations. Caused by the failure.
(1) A valid warranty card cannot be issued; (8) Consumables (light bulbs).
(2) Omissions, alterations, and no sales shop name on the warranty card;
Note: Based on our company’s continuous product improvement, the data contained in this manual may change, and there will be no further notice of changes at that time. The company reserves the right to change the relevant specifications when the product is improved. sorry for the inconvenience caused.
