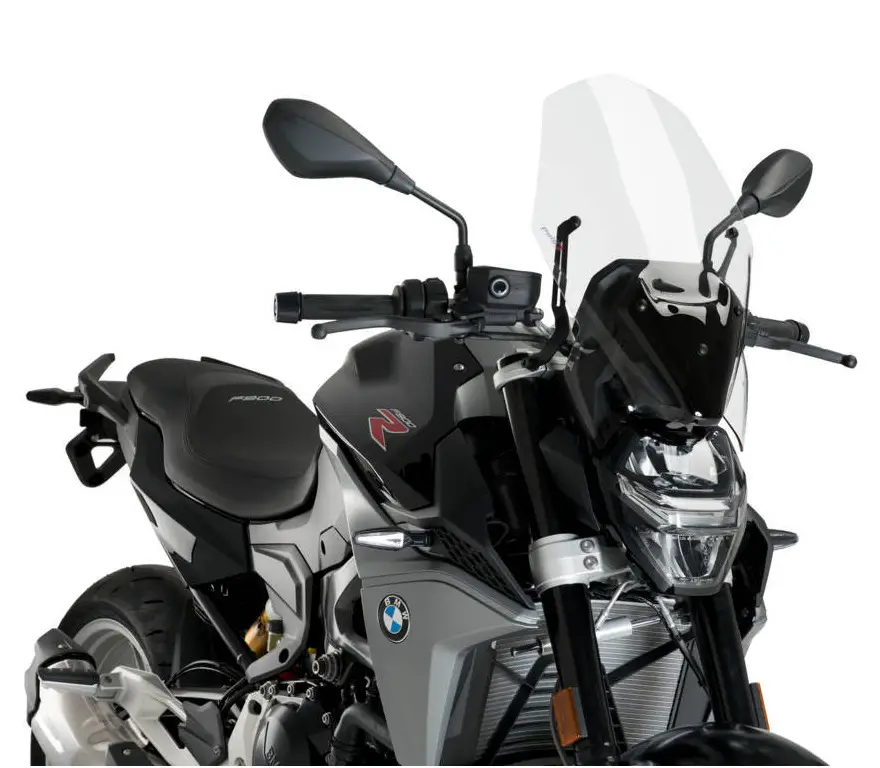

Puig 20361 BMW F900R 20 Touring Windscreen
WIND SHIELD NG TOURING (PUIG S UPPORT)
| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | TOURING screen | 1 | 10776W/H/F/N |

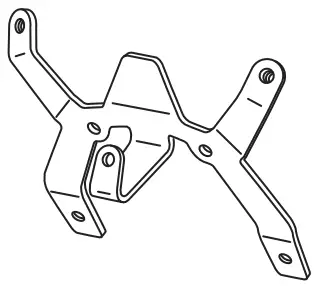

| 2 |  | Metal upper support | 1 | SOPOR3P2-S20360 |
| 3 |  | Right metal inferior support | 1 | SOPOR3P2R-20360 |
| 4 |  | Left metal inferior suport | 1 | SOPOR3P2I-20360 |

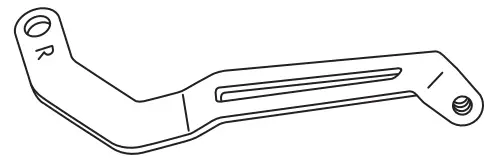

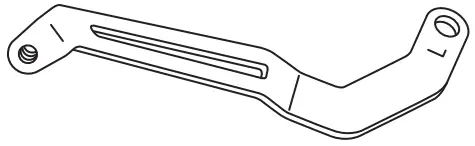

| 5 |  | Reinforcement right metal support | 1 | SOPOR2P1-R20362 |
| 6 |  | Reinforcement left metal support | 1 | SOPOR2P1-L20362 |
| 7 |  | M8X50 DIN912 Allen screw | 2 | TORNI-D912–532 |
| 8 |  | Ø8XØ14X7,5 arrowhead | 2 | CASQUI8147-0193 |
| 9 |  | M5x9 special screw hexagonal lenght 10 | 2 | TORNI-D912–532 |
| 10 |  | Ø9XØ6X8mm silentblock | 5 | AROPASACABLES-3 |
| 11 |  | Ø12XØ6,8X7,3 bush with blange | 5 | CASQUI-1A—750 |
| 12 |  | M5x11 Ø11 ISO 7380 Allen screw | 6 | TORNI-AI—- 520 |
| 13 |  | M5x16 Ø11 ISO 7380 Allen screw | 5 | TORNI-I7380-493 |
| 14 |  | M5 ISO 7380 Allen cap screw | 11 | TAPON——– 85 |

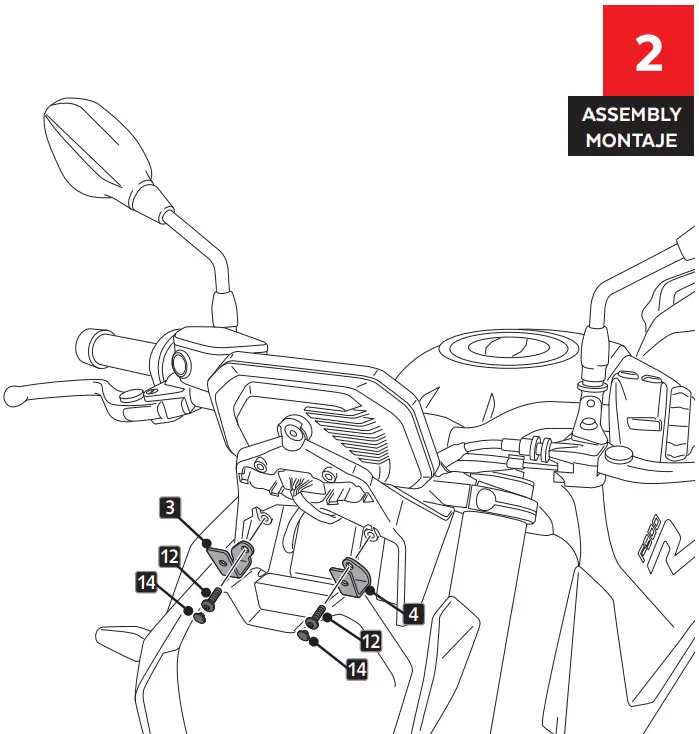

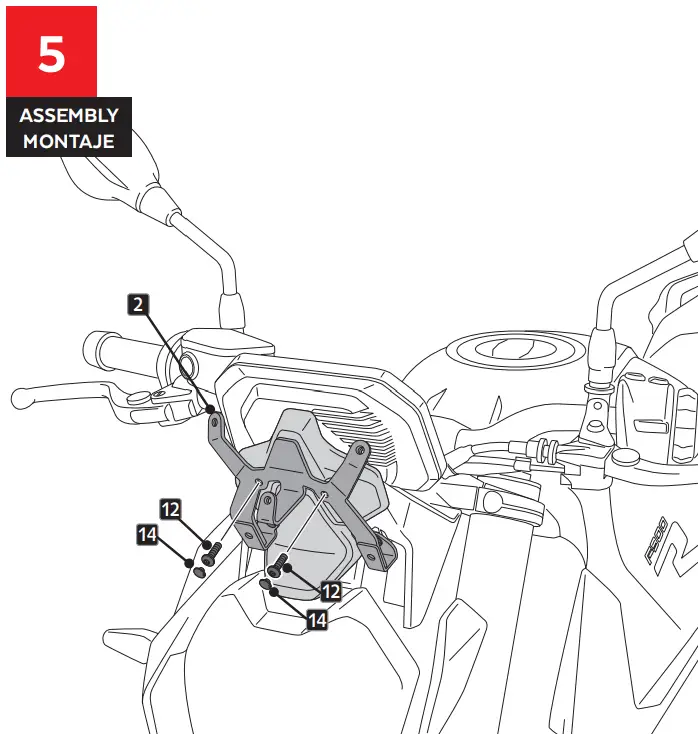

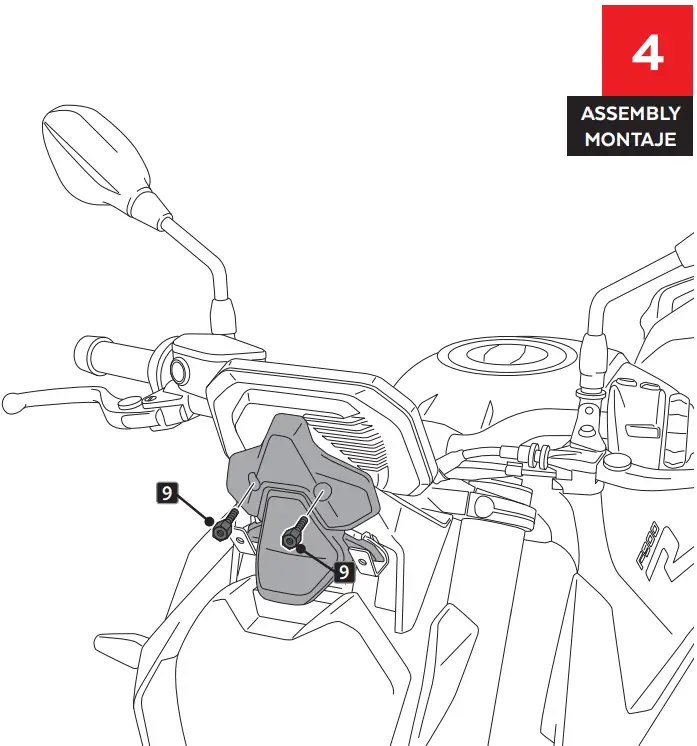

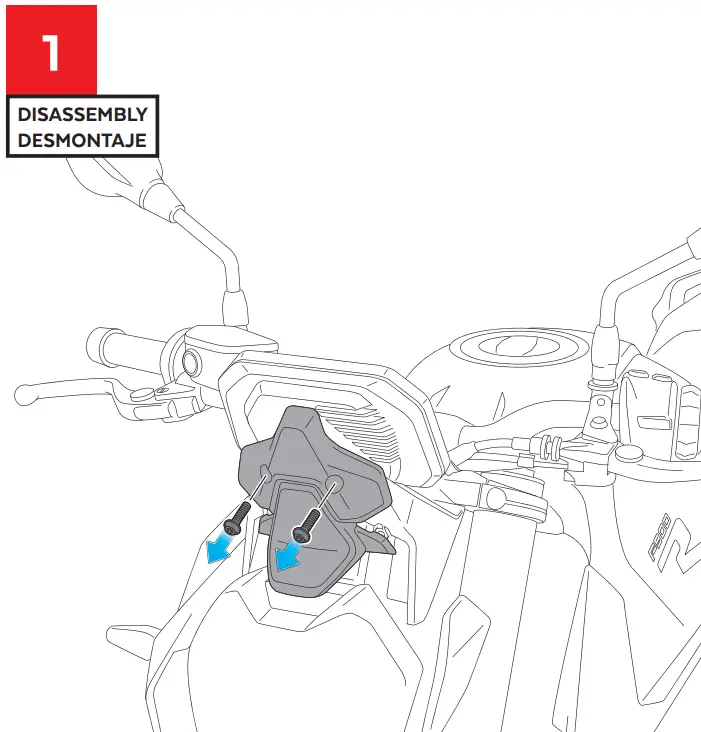

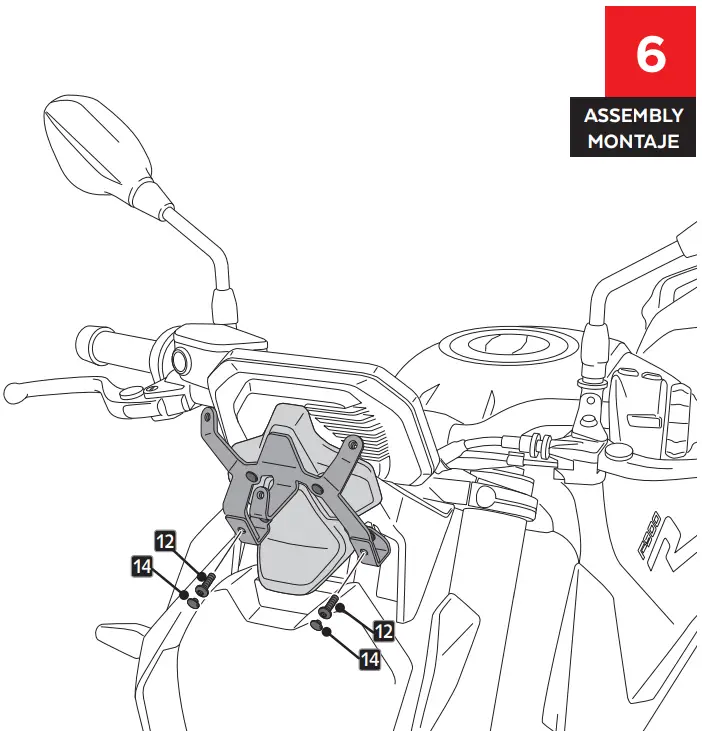

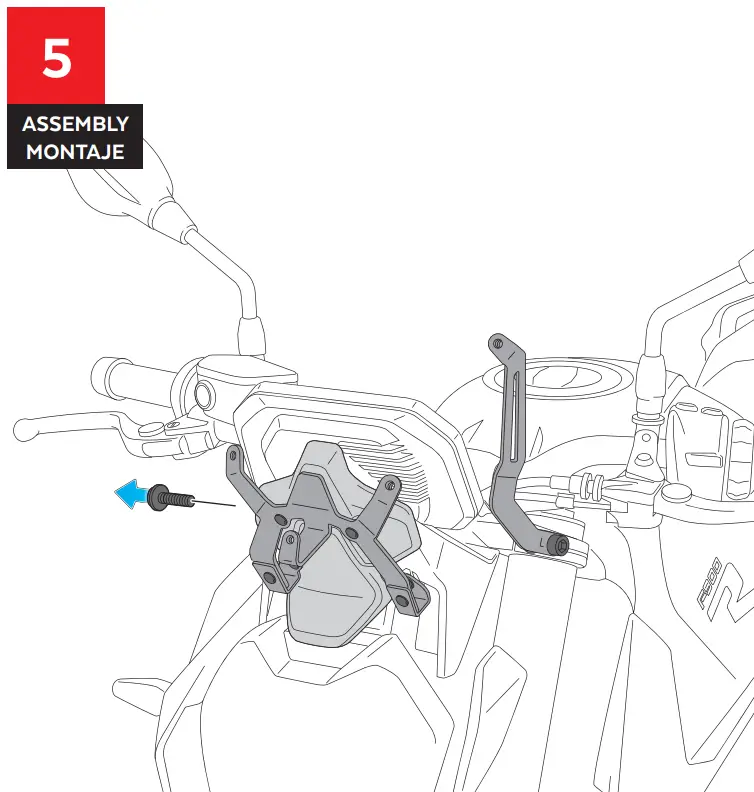

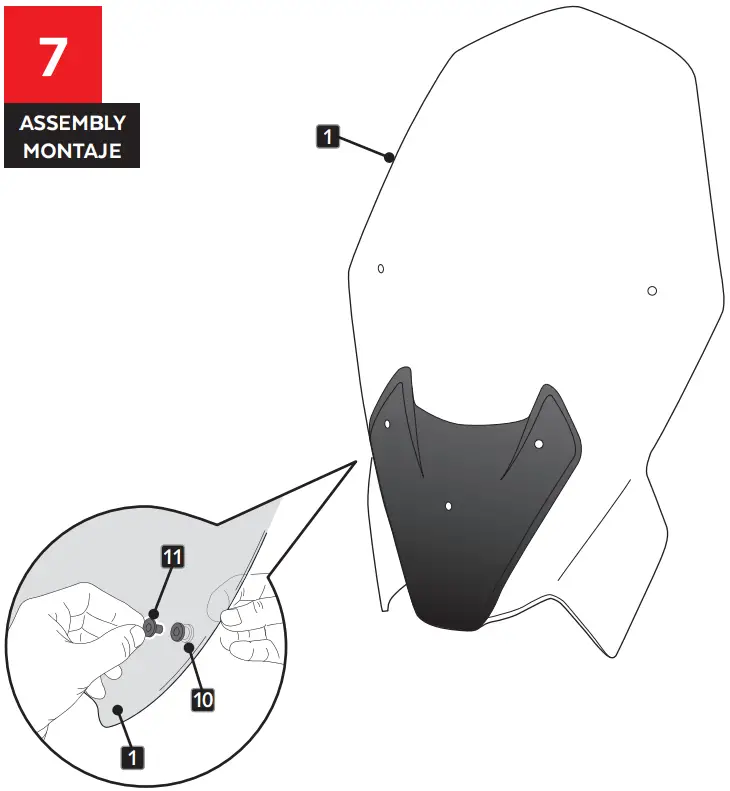

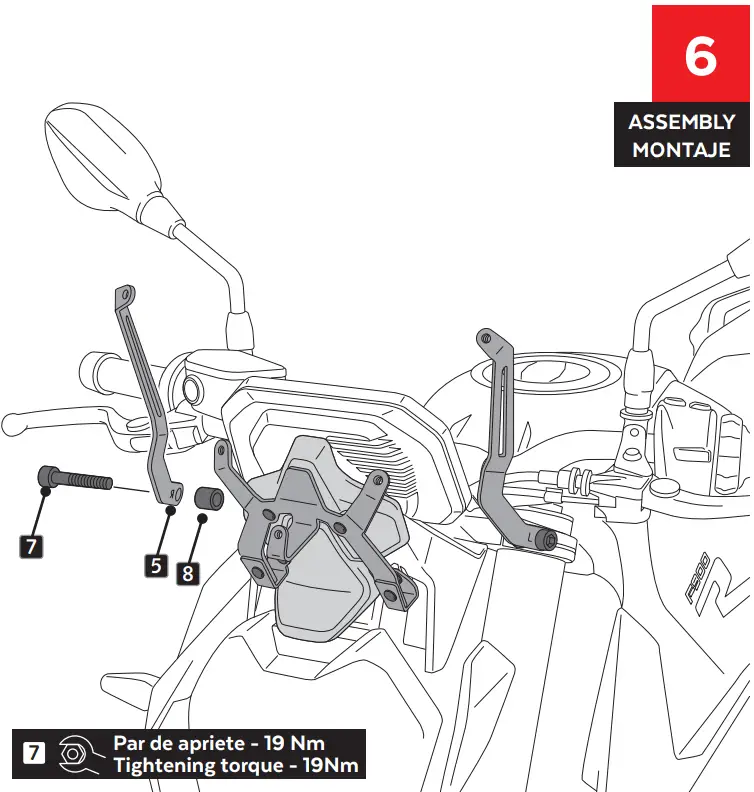

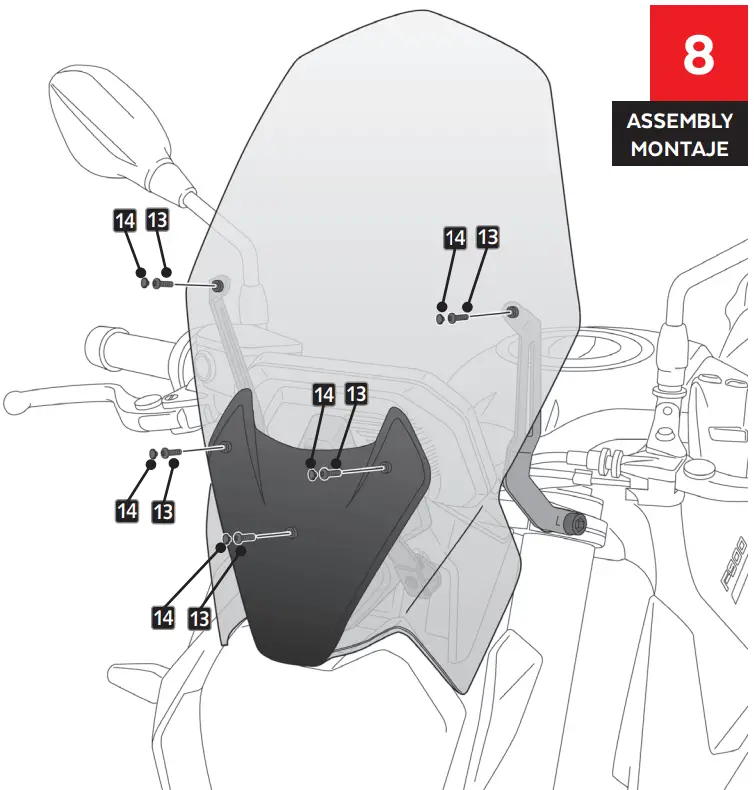

MOUNTING INSTRUCTIONS
