BMW F900XR ‘20-
MOUNTING INSTRUCTIONS
TOURING SCREEN
REF 20391

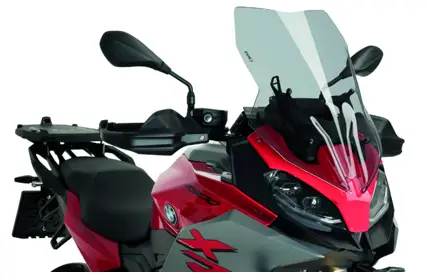

BMW F 900 XR Plexi Shield PUIG Touring Windshield

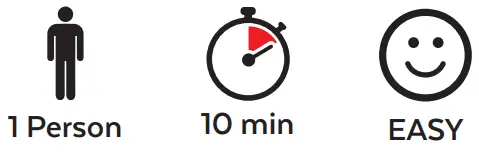

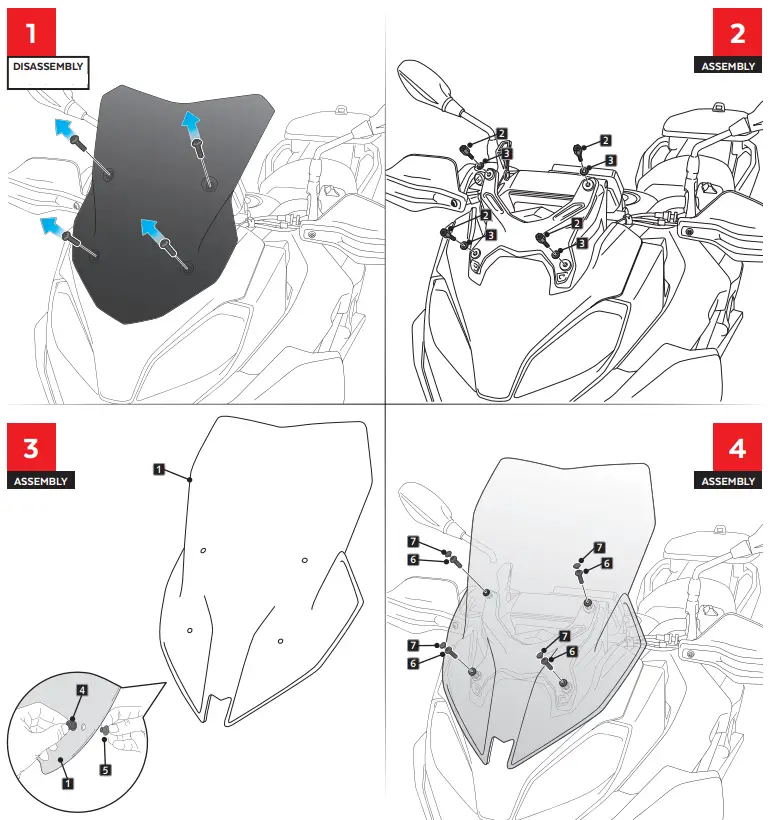

| ID | PART | DESCRIPTION | QTY | REF |

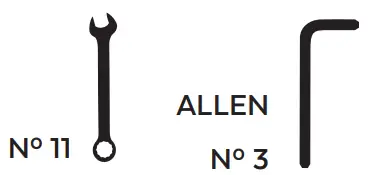

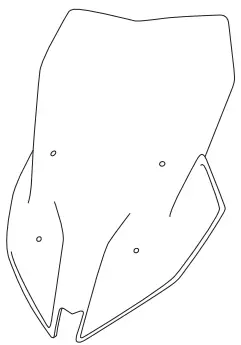

| 1 |  | TOURING screen | 1 | 20391 W/H/F/N |
| 2 |  | M5x9 special screw hexagonal length 14 | 4 | TORNI-EC—-597 |
| 3 |  | M5x1 nylon washer | 4 | ARNV0000000245 |
| 4 |  | Ø9XØ6X8mm silentblock | 4 | AROPASACABLES-3 |
| 5 |  | Ø12XØ6,8X7,3 bush with blange | 4 | CASQUI-1A—750 |
| 6 |  | M5X16 Ø11 ISO 7380 Allen screw | 4 | TORNI-I7380-493 |
| 7 |  | M5 ISO 7980 Allen cap secrew | 4 | TAPON——–85 |

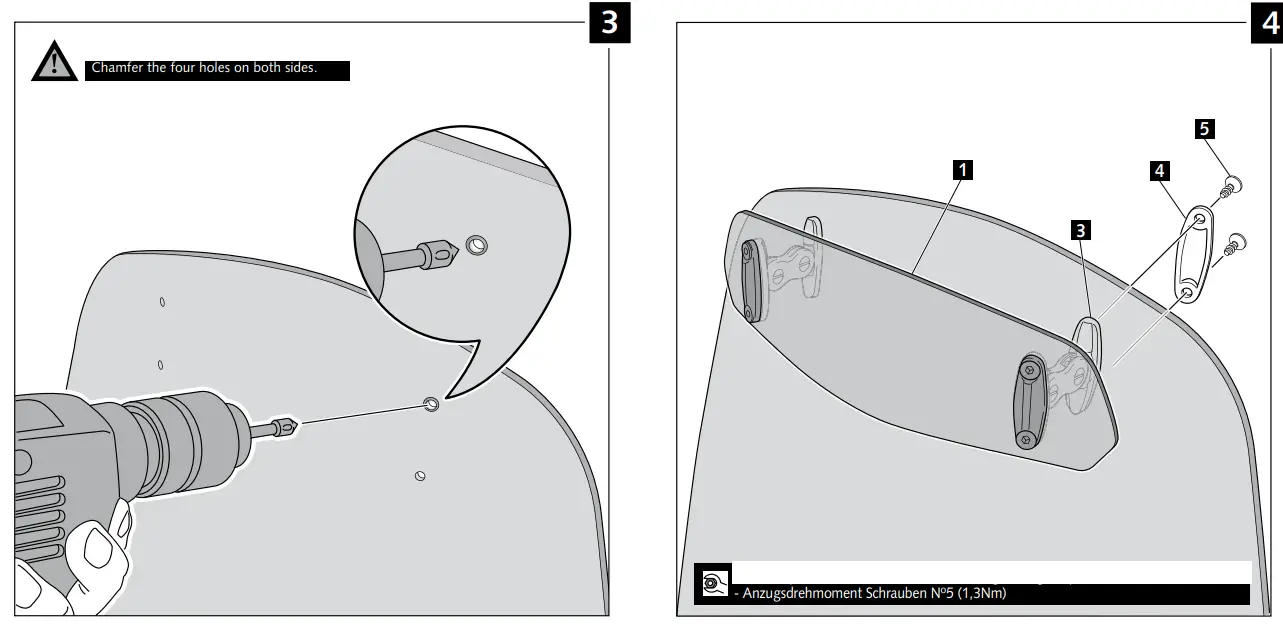

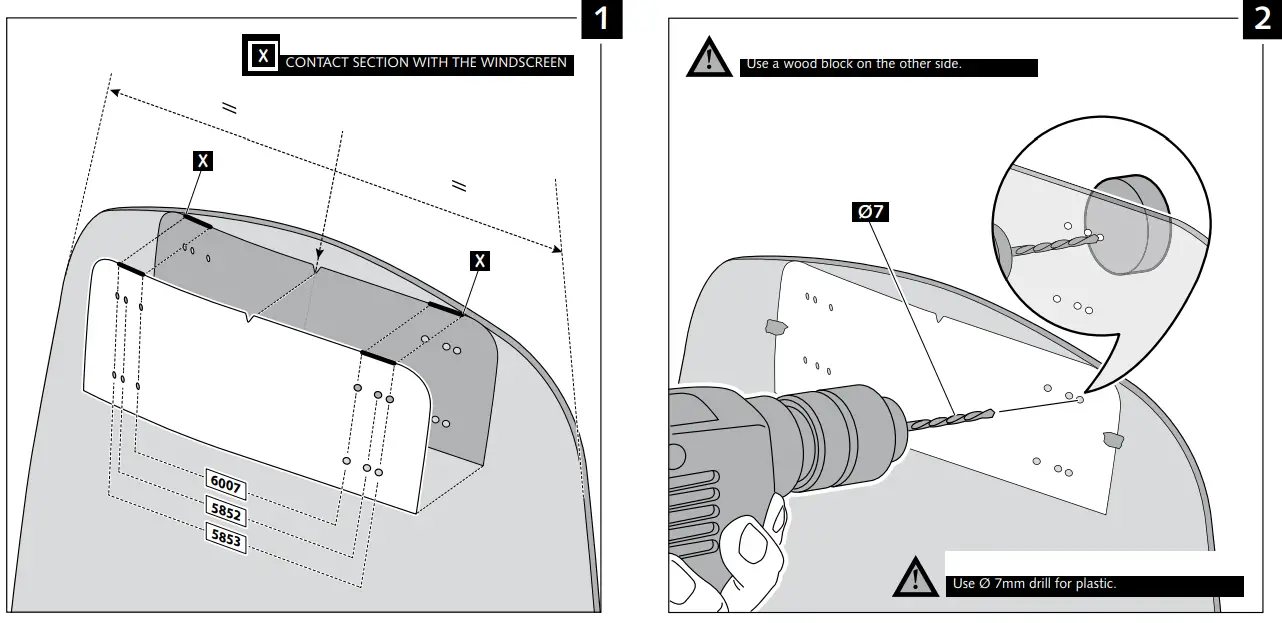

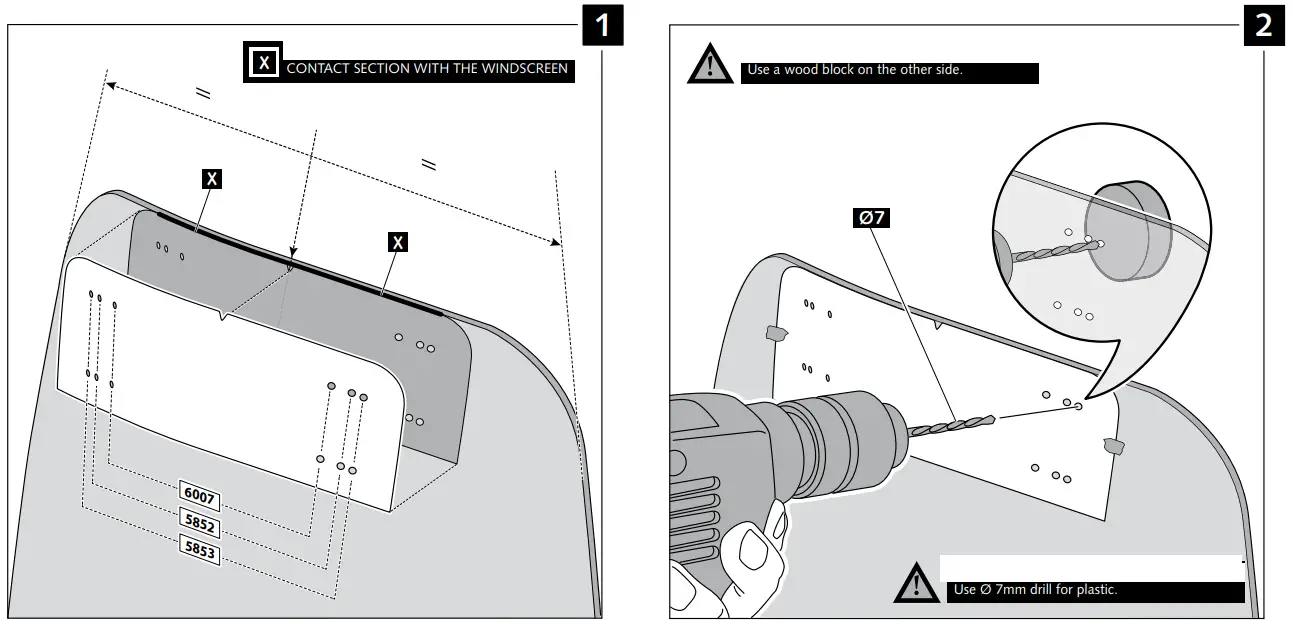

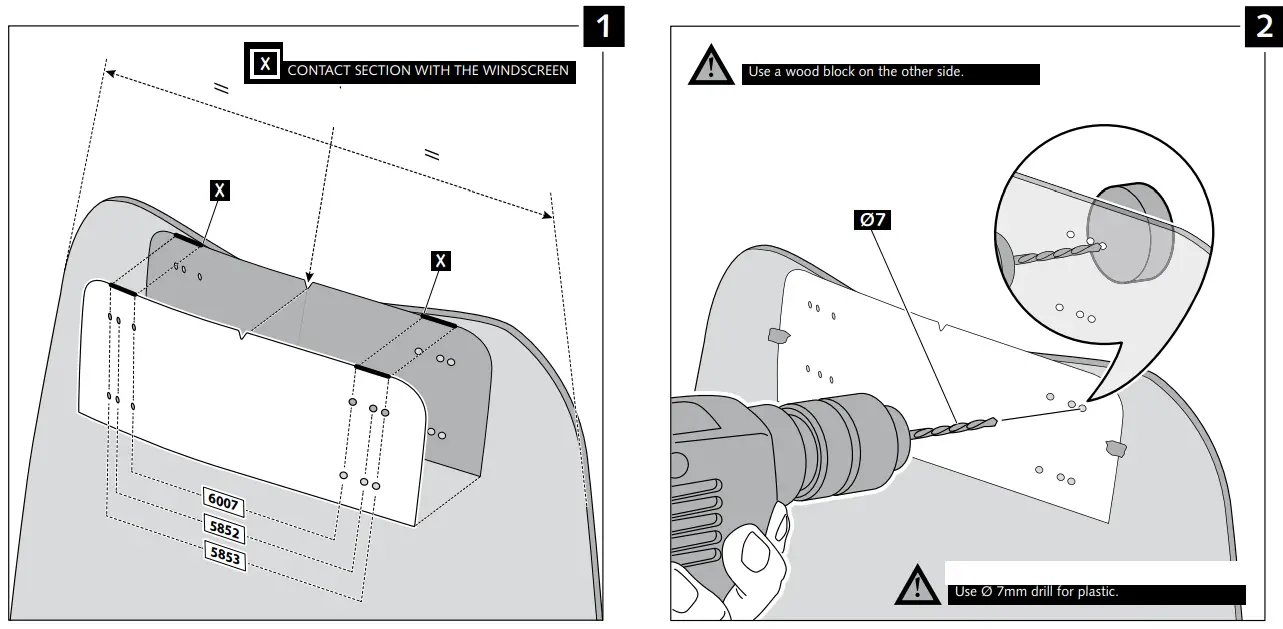

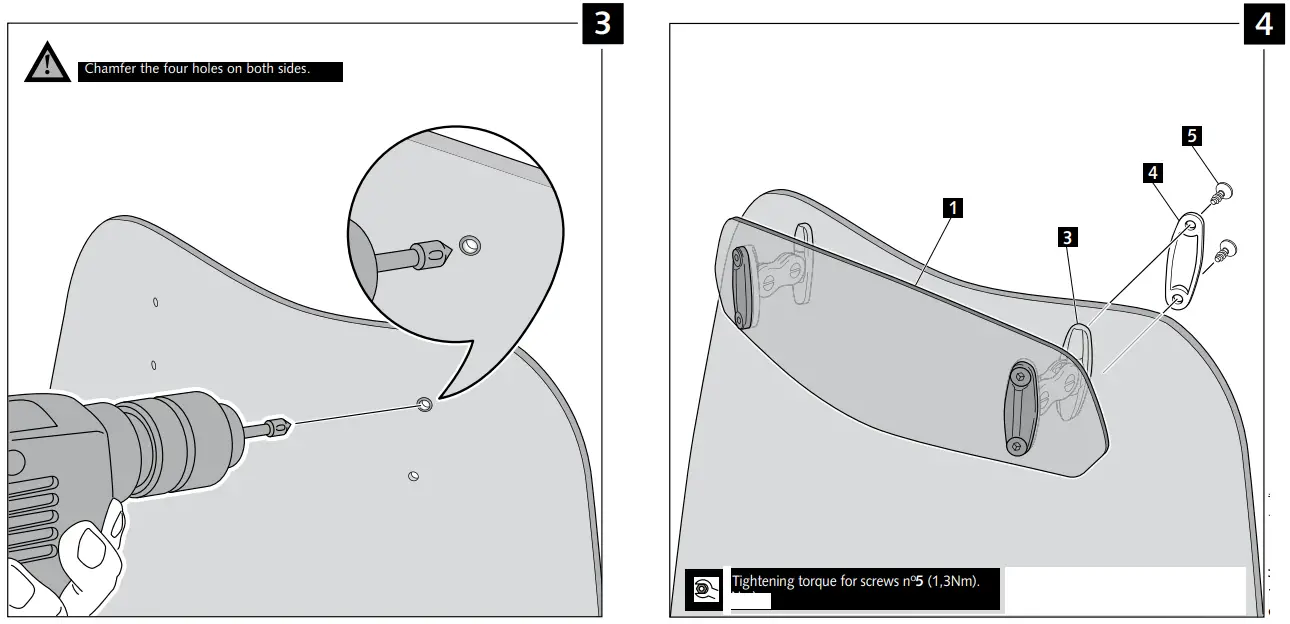

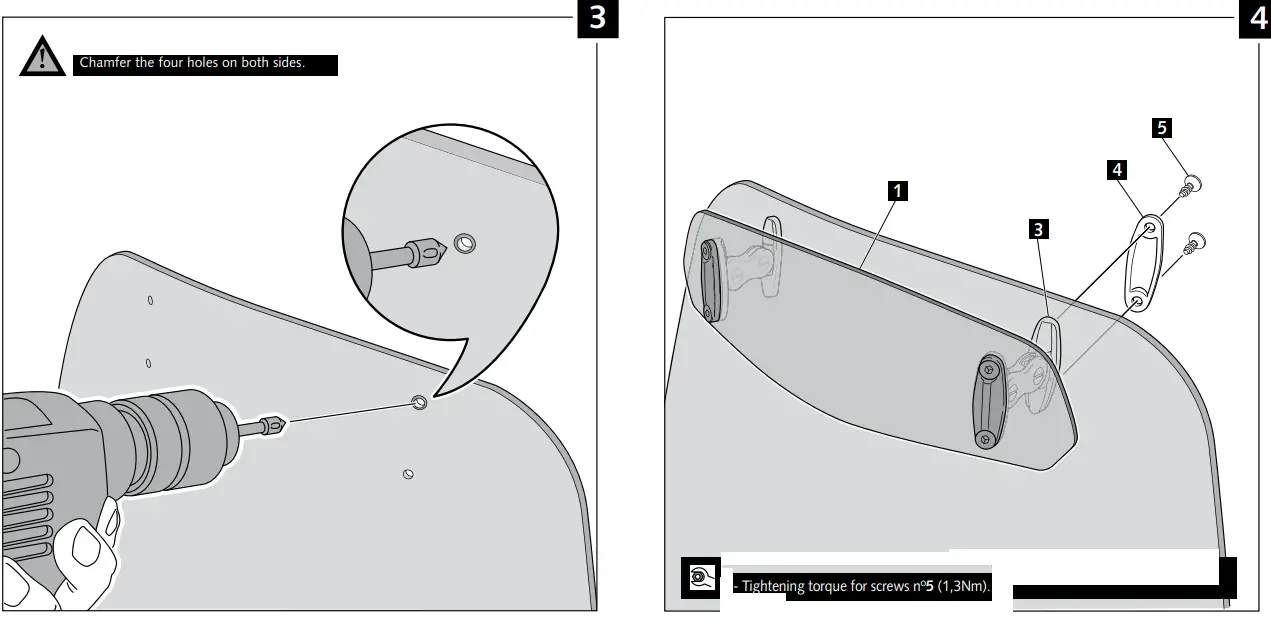

MULTI-ADJUSTABLE VISOR
Note:
If the visor is supplied along with the windscreen, the windscreen will come factory-drilled so no drilling is necessary.
| ID | PART | DESCRIPTION | QTY |
| 1 |  | Visor | 1 |
| 2 |  | Template | 1 |
| 3 |  | Multi-adjustable mechanism | 2 |
| 4 |  | Cap | 4 |
| 5 |  | Plastic thread fastener M6x12 | 8 |

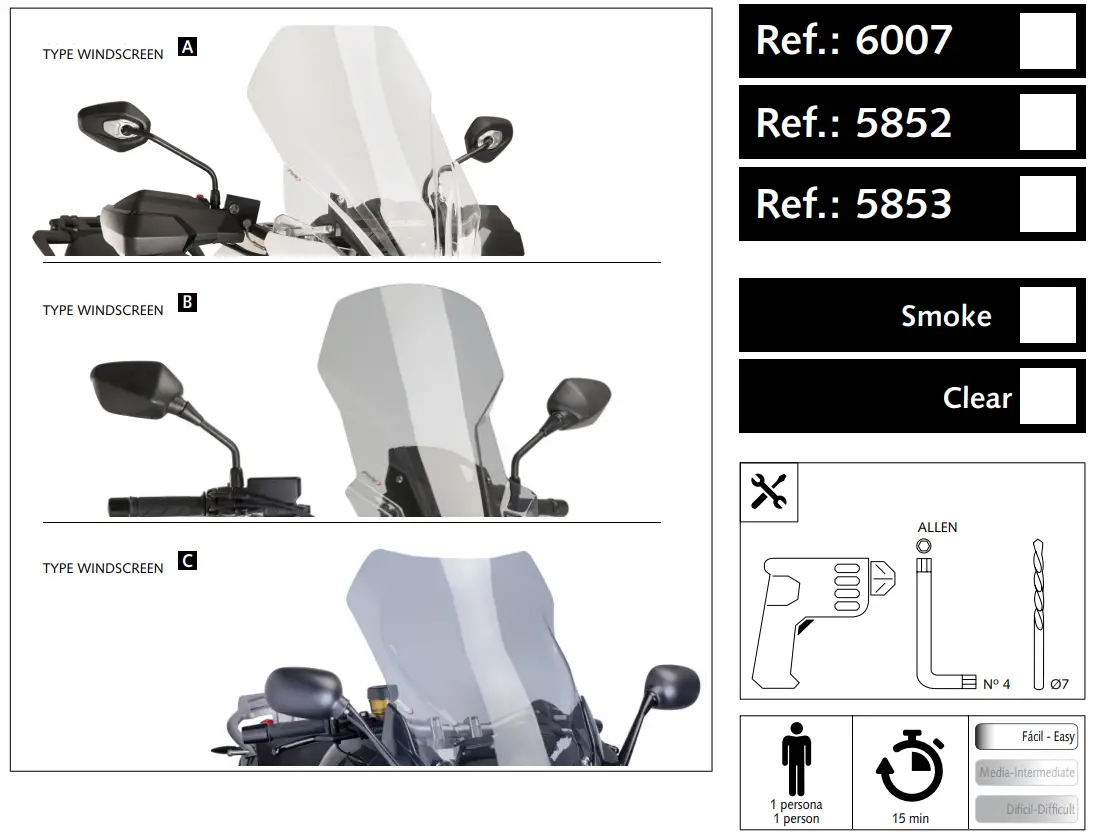

TYPE A
TYPE B
TYPE C
