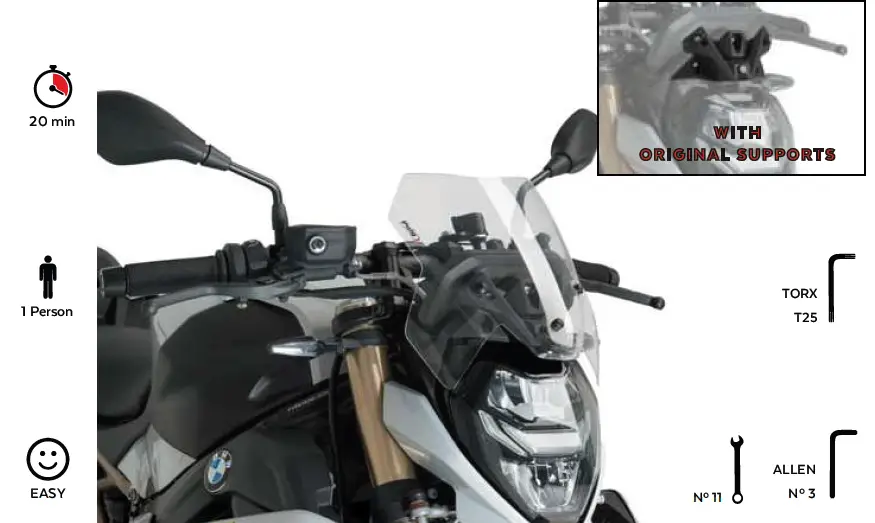

Puig BMW S1000R ‘21 R-Racer Windshield
Instruction

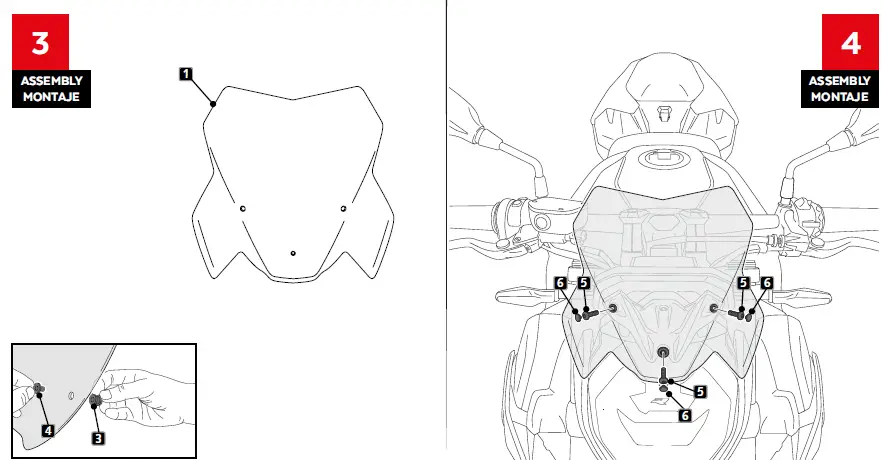

| ID | PIEZA/PART | DESCRIPCIÓN | DESCRIPTION | QTY | REF |
| 1 |
| Cúpula Sport | Sport screen | 1 | 10852W/H/N/F/AM3 |

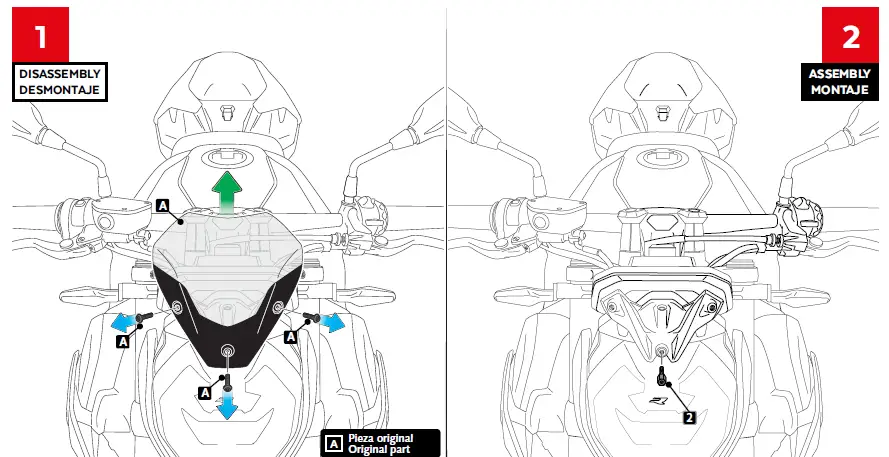

| 2 |  | Tornillo especial M5x9 Long Hexagonal 14 (rosca int M5x10) | M5x9 special screw Hexagonal lenght 14 ( rosca int M5x10) | 1 | TORNI-EC—– 597 |
| 3 |  | Silentblock Ø12xØ6×9 | Ø12xØ6×9 Silentblock | 3 | AROPASACABLES-3 |
| 4 |  | Casquillo con valona Ø12xØ6,8×7,3 | Ø12xØ6,8×7,3 Bush with flange | 3 | CASQUI-1A—750 |
| 5 |  | Tornillo Allen M5x16 Ø11 ISO 7380 | M5x16 Ø11 ISO 7380 Allen screw | 3 | TORNI-I7380-493 |
| 6 |  | Tapón tornillo M5 ISO 7380 | M5 ISO 7380 screw cap | 3 | TAPON———- 85 |
