Puig BMW S1000R Windshield New Generation Sport Instruction Manual
WINDSHIELD NG SPORT

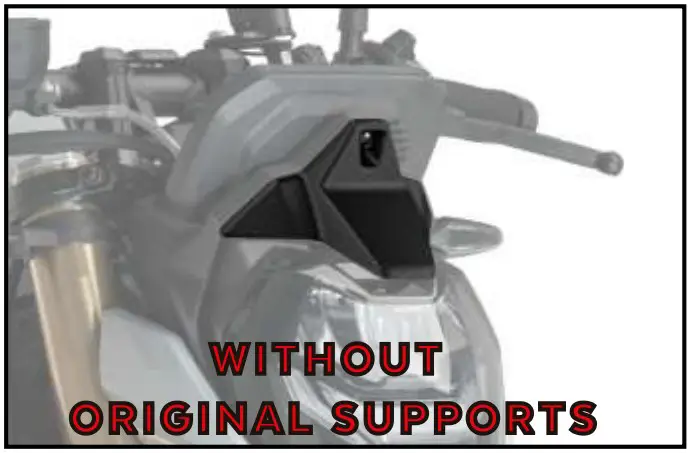

WITHOUT ORIGINAL SUPPORTS
| ID | PART | DESCRIPTION | QTY | REF |

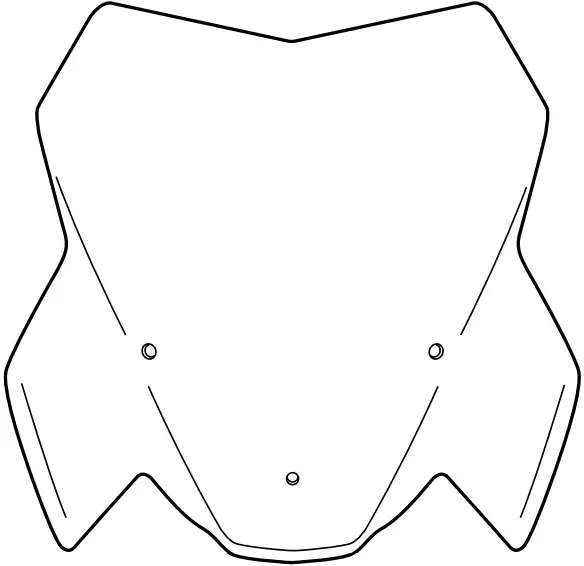

| 1 |  | Sport screen | 1 | 10852W/H/N/F/AM3 |

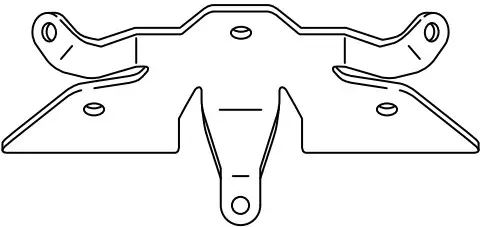

| 2 |  | Metal suport | 1 | SOP1P7-C–20886 |
| 3 |  | Ø12xØ6×9 Silentblock | 3 | AROPASACABLES-3 |
| 4 |  | Ø12xØ6,8×7,3 Bush with flange | 3 | CASQUI-1A—750 |
| 5 |  | M5x16 Ø11 ISO 7380 Allen screw | 6 | TORNI-I7380-493 |
| 6 |  | M5 ISO 7380 screw cap | 3 | TAPON——–85 |

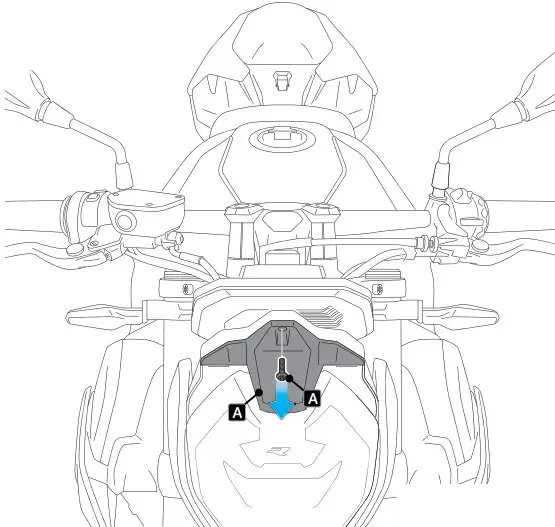

MOUNTIN G INSTRUCTIONS
V0.12/21 Illustrations and layout by: www.ciandisseny.com
