BMW R18 20
Instruction Manual
MOUNTING INSTRUCTIONS

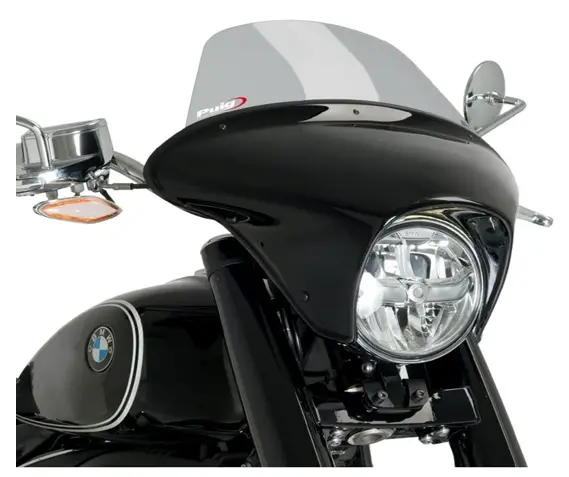

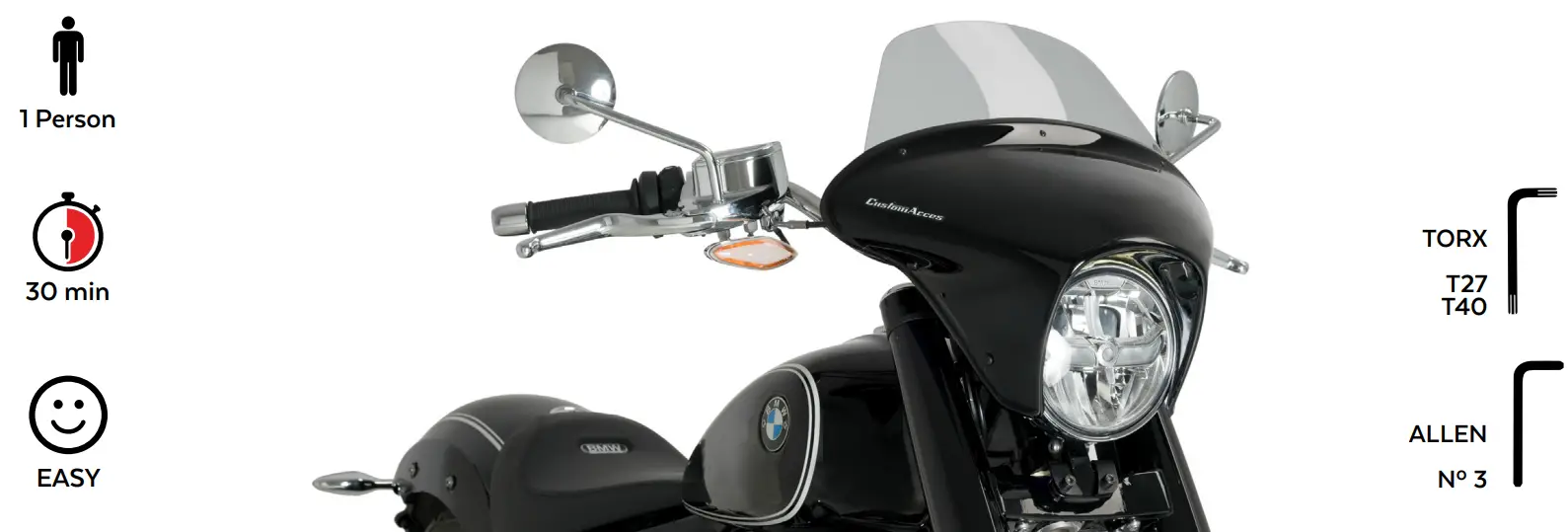

SEMIFAIRING BATWING SML TOURING MODEL
REF. 21048
It would be convenient to right the semi-fairing screws, especially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.
| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | Batwing SML semi fairing | 0 | 10897N |
| 2 |  | TOURING screen | 1 | 10900W/H |
| 3 |  | Left support ( L ) | 1 | SOP2P3L-BTM0023 |
| 4 |  | Right support ( R ) | 1 | SOP2P3R-BTM0023 |
| 5 |  | Ø13 x Ø8,5 x 6mm Arrowhead | 2 | TORNI-I7380-870 |
| 6 |  | M8x45 ISO 7380 TX screw ( INOX) | 2 | casual——776 |
| 7 |  | M5x1 nylon washer | 4 | ARNV0O00000245 |
| 8 |  | M5 silent block | 4 | SILENBTM5-046/1 |
| 9 |  | M5x16 Ø11 ISO 7380 Allen screw | 4 | TORNI-I7380-493 |
| 10 |  | M5 ISO 7380 screw cap | 4 | TAPON——–85 |
| 11 |  | M4x12 ISO 7380 Allen screw | 3 | TORNI-17380-800 |
| 12 |  | M4x0,5 nylon washer | 6 | ARNV00000000311 |
| 13 |  | M4 nut | 3 | TUERCAE985-0290 |
| 14 |  | M4 cap nut | 3 | TAPON——–97 |

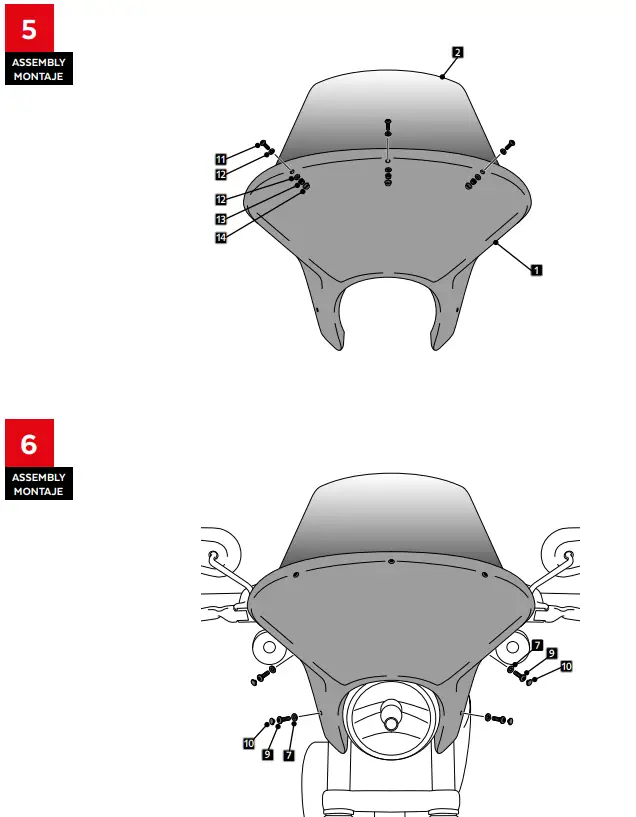

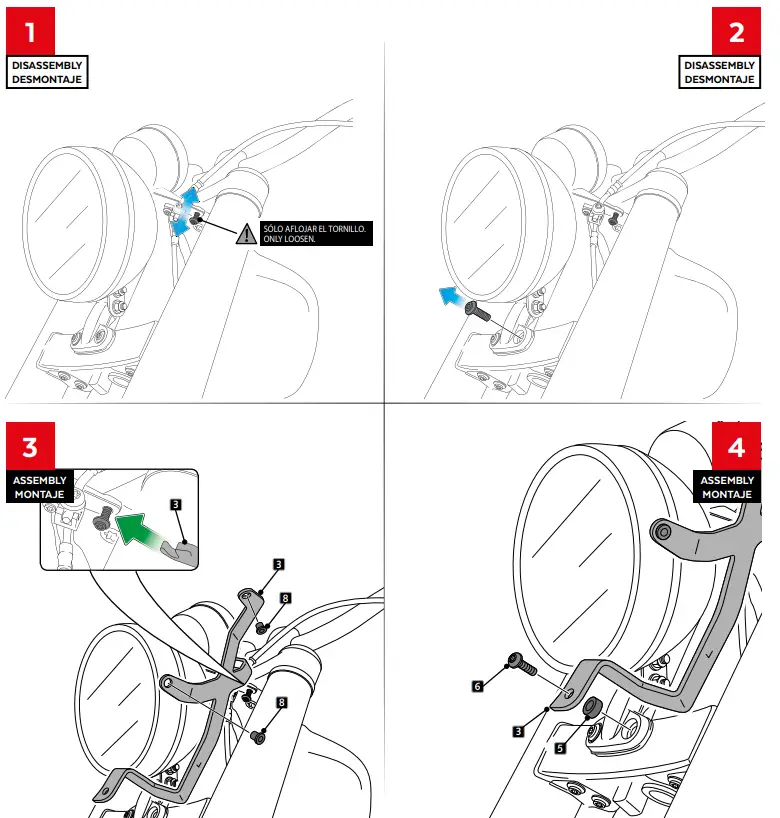

The left side assembly is shown as an example, so the same steps can be performed for the right side assembly.
