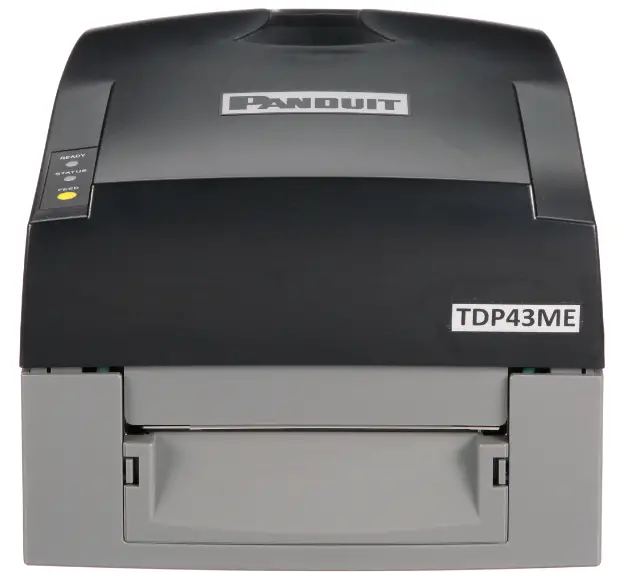

TDP43ME Thermal Transfer Desktop Printer
Instructions
TDP43ME Thermal Transfer Desktop Printer
TDP43ME Thermal Transfer Desktop Printer
- Compact, lightweight design enables use in the office or remote locations
- 300 dpi thermal transfer printer creates crisp, clear legends with superior legibility
- Up to 4.00 inches per second print speed for fast label production
- Use to print a wide variety of self-laminating labels, component labels, non-laminated labels, heat shrink labels, marker plates and continuous tapes up to 4″ wide
- Panduit® Easy-Mark Plus” Labeling Software and hybrid ribbon included with the printer
- UL 60950 listed, File# E165747
| Part Number | Part Description | Std Pkg Qty |

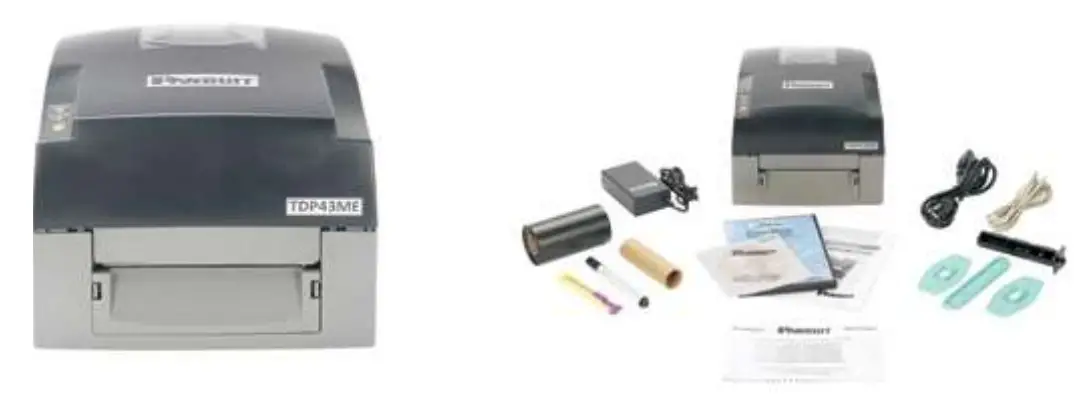

 TDP43ME | 300 dpi printer; includes the printer, Panduit® Easy-Mark Plus” Labeling Software, RMEH4BL black hybrid ribbon, AC power adapter with US power cord, USB cable, user manual, quick start card, TB-KIT, and driver disk; for use in North America. | 1 |
| TDP43ME-KIT | TDP43ME printer kit. Includes: printer, Panduit® Easy-Mark Plus” Labeling Software, RMEH4BL black hybrid ribbon, AC power adapter with US power cord, USB cable, user manual, quick start card, TDP43ME-RS Roll Stand, TDP43ME-CASE, one roll of S100X150VATY labels, TB-KIT, and driver disk; for use in North America. | 1 |

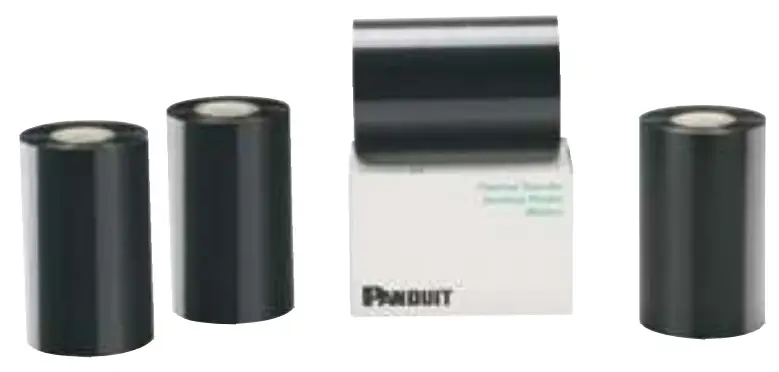

Ribbons for Use with the TDP43ME Thermal Transfer Desktop Printer
- Hybrid — Recommended for use with self-laminating, heat shrink, component and non-laminated labels
Resin — Recommended for use with polyester labels, continuous vinyl tape, marker plates and raised panel labels
Resin — Recommended for use with polyester labels, continuous vinyl tape, marker plates and raised panel labelsPart Number | Part Description | Width | Length | Std Pkg Qty | ||
| in | mm | ft | m | |||
| RMEH4BL* RMEH4BL *A | Black hybrid thermal transfer ribbon. Use with heat shrink, self-laminating, Turn-Tell”, tan polyimide labels, and vinyl cloth labels. | 4.25 | 108.0 | 300.0 | 91.4 | 1 |
Order number of ribbons required in multiples of Standard Package Quantity.
*For 2.5″ wide ribbons, replace 4 in the part number with 2. For example, the part number of a 2.5″ wide black hybrid thermal transfer ribbon is RMEH2BL.
For other colors available, change “BL” to BU for Blue, RD for Red, or WH for White (Example: RMER4BU = Blue Resin Ribbon).
