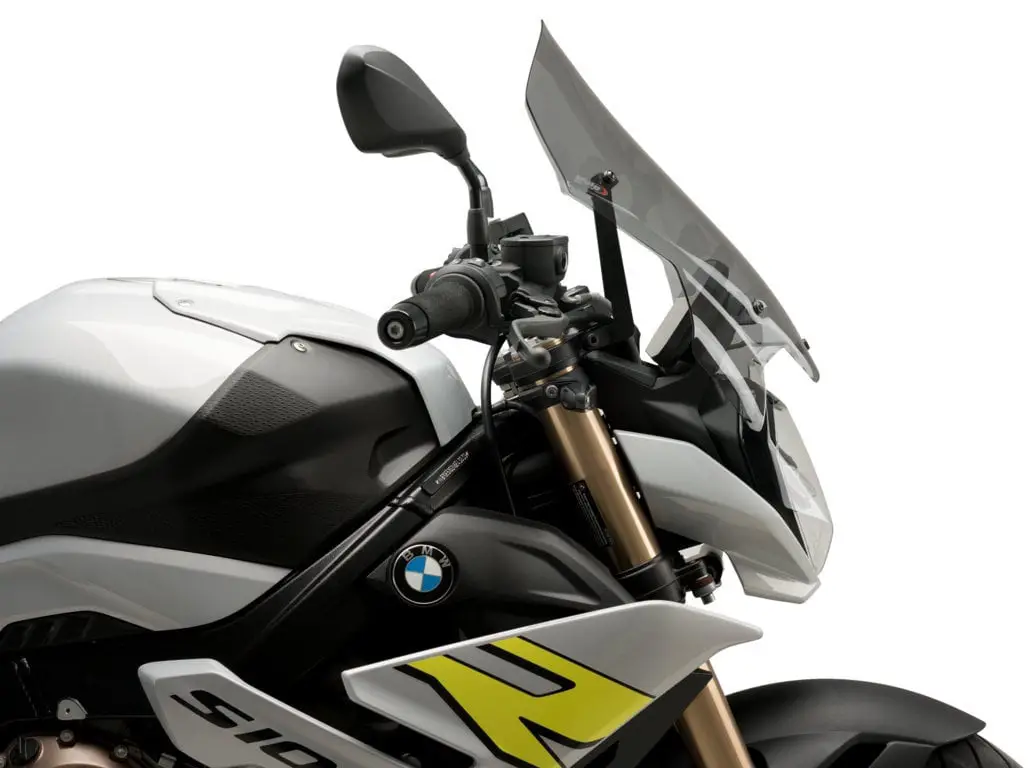

Puig 20888 BMW S1000R 21 Windshield NG Touring Instruction Manual
| ID | PART | DESCRIPTION | QTY | REF |

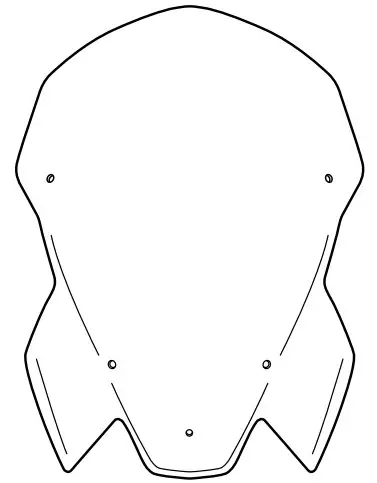

| 1 |  | Touring screen | 1 | 10855W/H/N/F/AM3 |

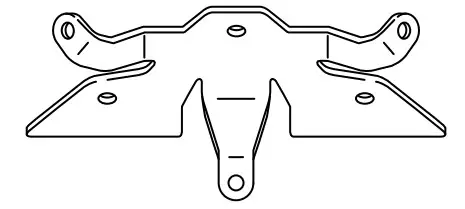

| 2 |  | Main supo | 1 | SOP1P7-C–20886 |

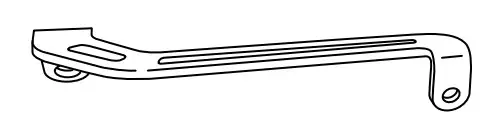

| 3 |  | Left support | 1 | SOP2P7-L–20889 |

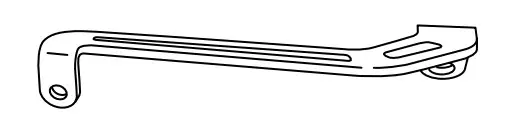

| 4 |  | Right support | 1 | SOP2P7-R–20889 |
| 5 |  | M8x45 DIN 912 Allen screw | 3 | TORNI-AD912-508 |
| 6 |  | Ø14xØ8,5×12 Arrowhead | 2 | CASQUI—–0083 |
| 7 |  | Ø12xØ6×9 Silentblock | 5 | AROPASACABLES-3 |
| 8 |  | Ø12xØ6,8×7,3 Bush with flange | 5 | CASQUI-1A—750 |
| 9 |  | M5x16 Ø11 ISO 7380 Allen screw | 8 | TORNI-I7380-493 |
| 10 |  | M5 ISO 7380 screw cap | 5 | TAPON——–85 |

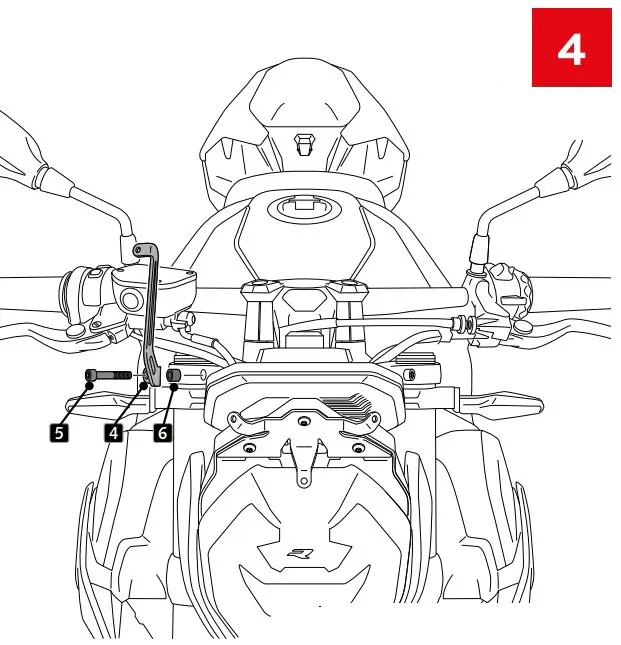

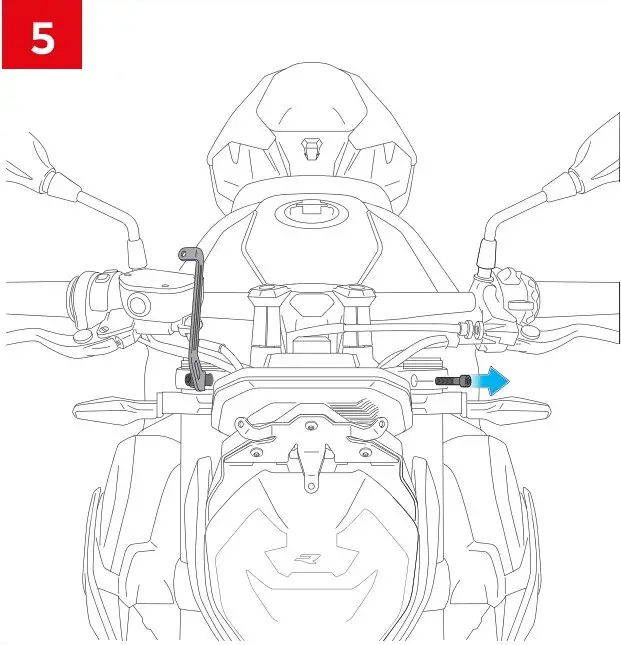

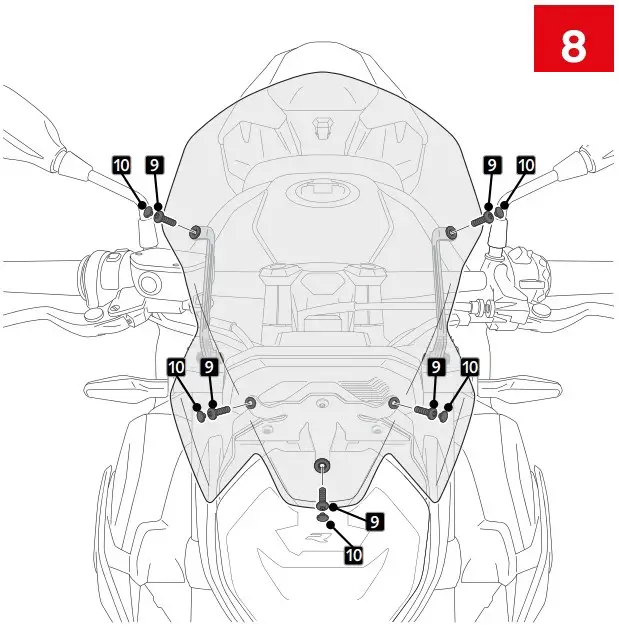

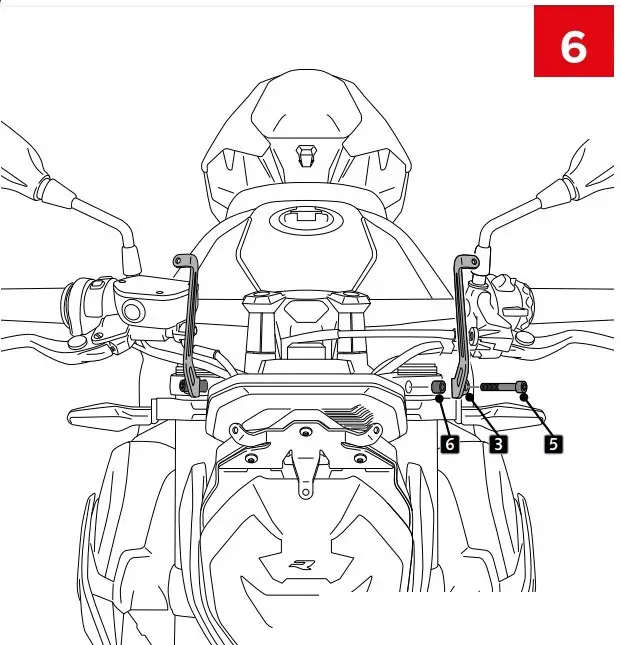

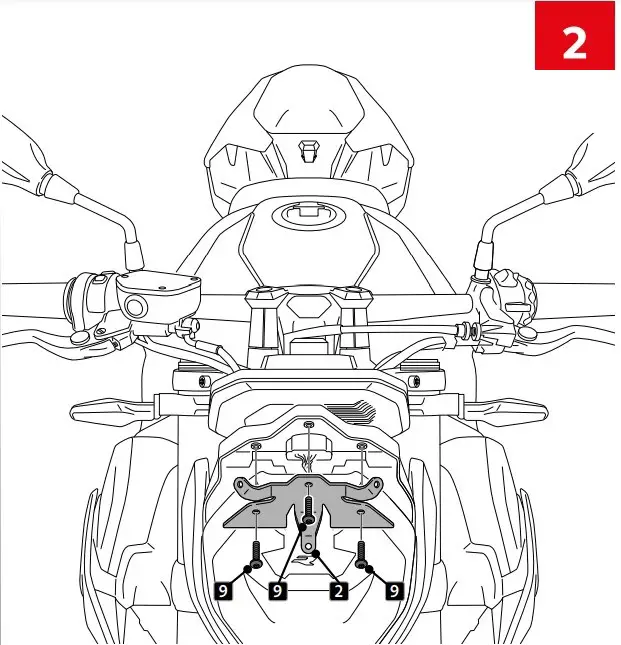

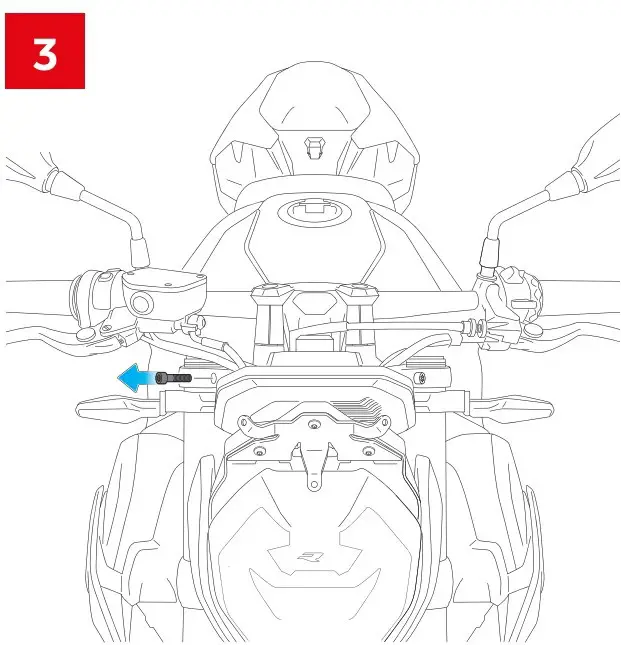

MOUNTING INSTRUCTIONS
