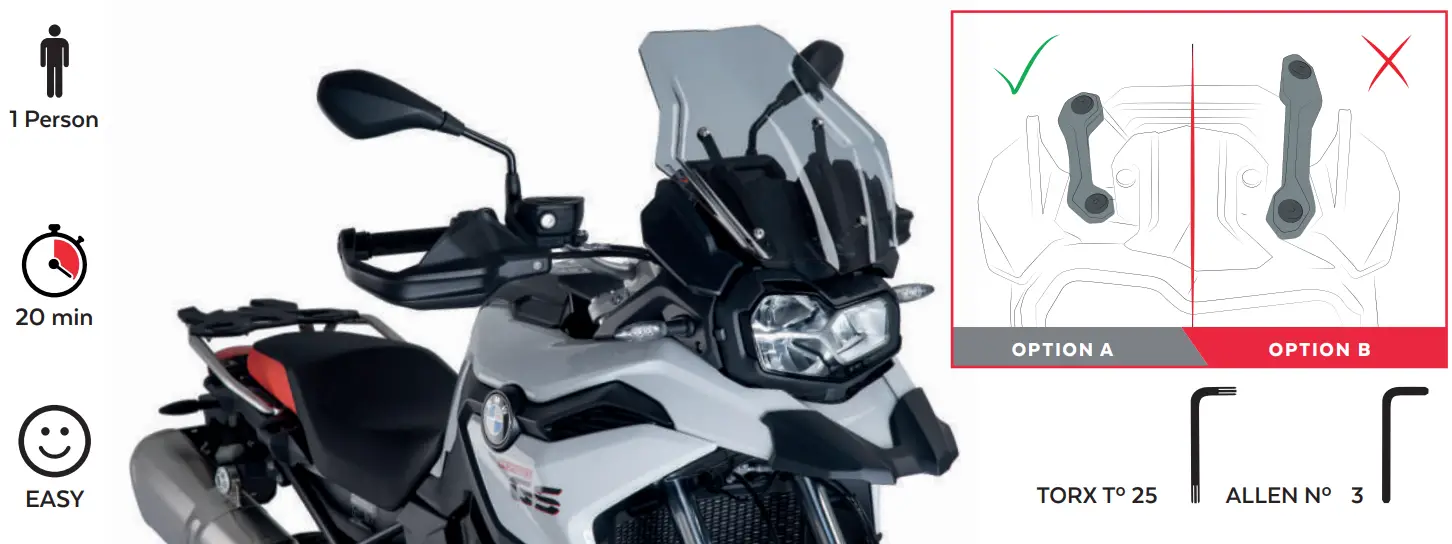

3768 BMW F750GS 18-21 Touring Windshield
Instruction Manual

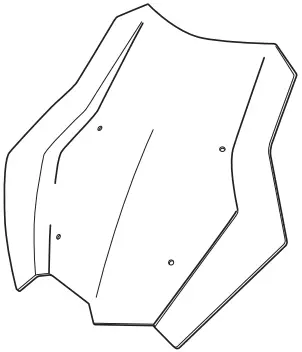

TOURING SCREEN
| ID | PART | DESCRIPTION | QT | REF |
| 1 |  | ouring screen | 1 | 3769H/F/WM3 |
| 2 |  | Metal supports ( L+R ) | 1 | SOPOR-2P-3-9770 |
| 3 |  | M5x16 Ø11 ISO 7380 Allen screw | 4 | TORNI-I7380-493 |
| 4 |  | M5 ISO 7380 screw cap | 4 | TAPON——–85 |

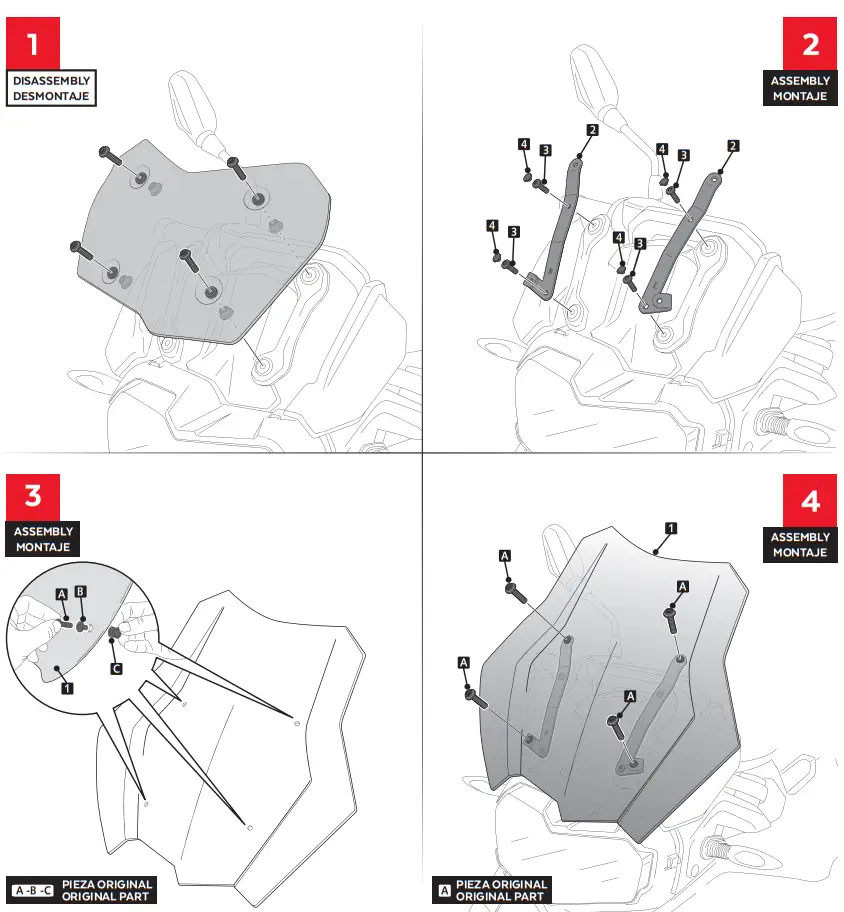

MOUNTING INSTRUCTIONS
