Puig Z900 Windscreen Kawasaki Instruction Manual
Parts Description
| ID | PART | DESCRIPTION | QTY | REF |

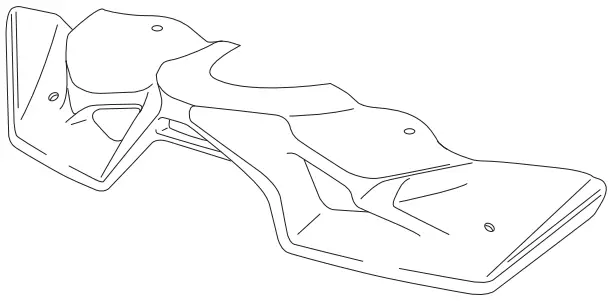

| 1 |  | Frontal spoiler naked | 1 | 20626JM3 |

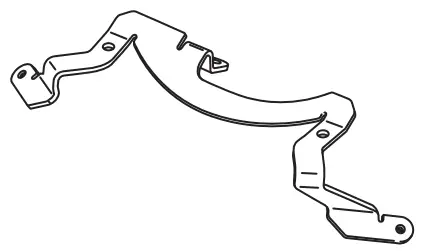

| 2 |  | Support | 1 | SOPOR1P5–20626 |
| 3 |  | M5x30 Ø11 ISO 7380 Allen screw | 2 | TORN I-17380-767 |
| 4 |  | M6x16 Ø14 ISO 7380 Allen screw | 1 | TORN I-17380-403 |
| 5 |  | Ø12xØ6×9 silentblock | 2 | AROPASACABLES-1 |
| 6 |  | M5x11 Ø9 ISO 7380 Allen screw | 2 | TORNI-17380-536 |
| 7 |  | M5 nylon washer | 2 | ARNV0000000245 |
| 8 |  | Ø4,5 x Ø11 x 2mm rubber washer | 2 | ARAND-EPDM–722 |
| 9 |  | 10x15mm adhesive protective foam (supplied assembled) | 3 | ESPUMA 264 |
DISASSEMBLY

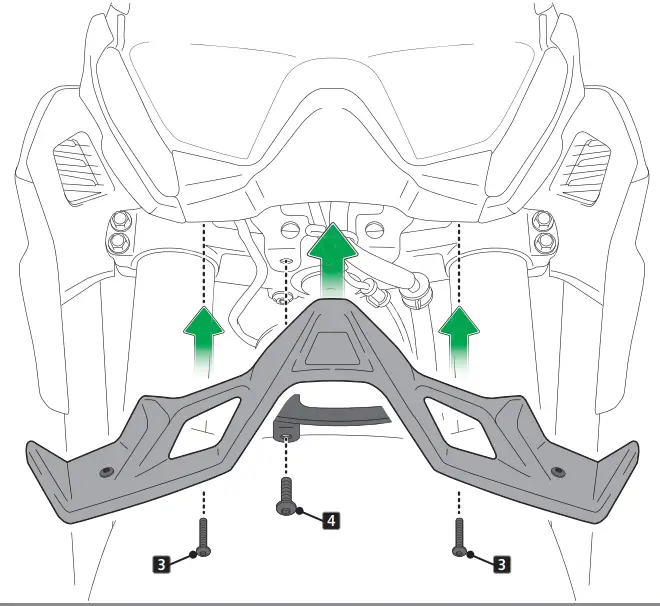

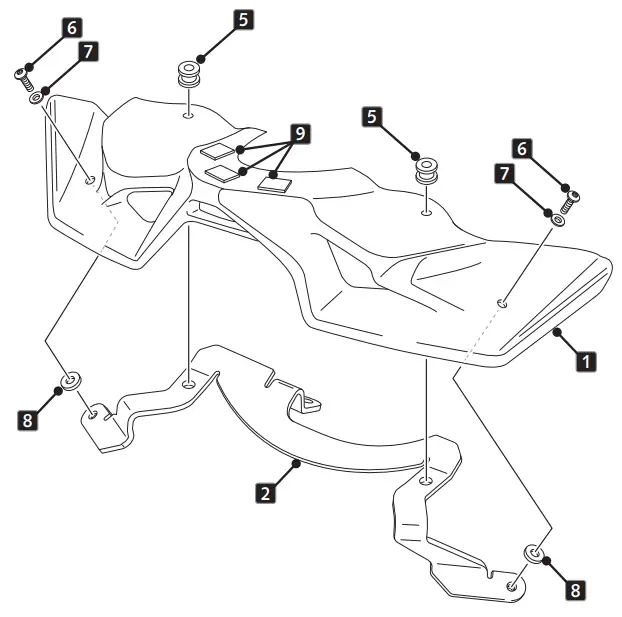

ASSEMBLY

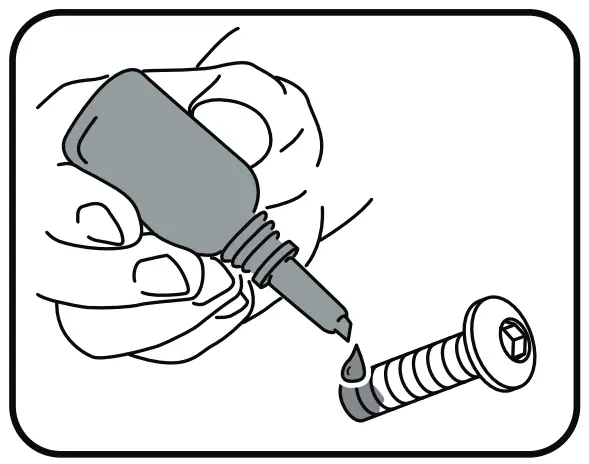

USE LIQUID FIXATOR
