Puig DAYTONA IV Chopper Windscreen Clear Windscreen
During maintenance of the vehicle, it is also important that all screws are tightened for the windshield, especially those that hold it to the vehicle.
Thank you for your attention to this.

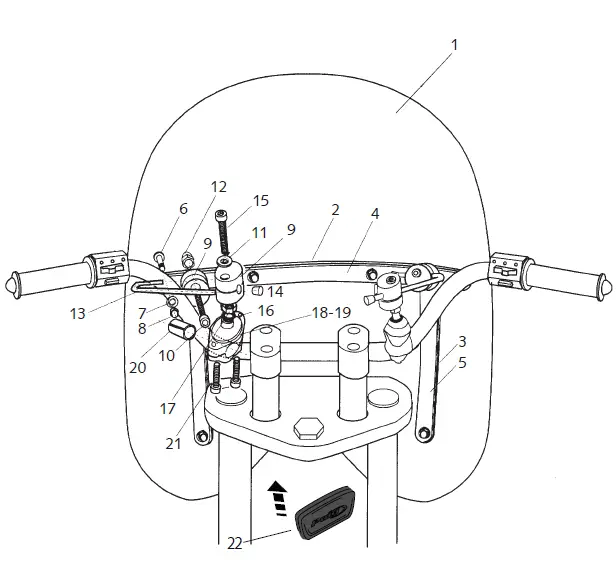

MATERIALS INCLUDED AND ORDERED FOR THE INSTALLATION TO THE VEHICLE
DESCRIPTION
| ID. | DESCRIPTION | REF. | QTY. | |
| 1 | Clear screen | 10100 | 1 | |
| 2 | Central chrome plate | 10175 | 1 | |
| 3 | Side chrome plate | 10176 | 2 | |
| 4 | Central black plate | 10177 | 1 | |
| 5 | Side black plate | 10178 | 2 | |
| 6 | Screw M5x15 DIN 603 | 10094 | 8 | |
| 7 | Flat washer Ø5 DIN 125/A | 10099 | 8 | |
| 8 | Cap nut M5 | 10098 | 8 | |
| 9 | Superior clamp and inferior rod | 10125 | 4 | |
| 10 | Allen screw M8x50 DIN 912 | 10170 | 4 | |
| 11 | Flat washer Ø8 DIN 125/A | 10169 | 2 | |
| 12 | Cap nut M8 DIN 1587 | 10095 | 2 | |
| 13 | Rod Ø10 of 185×70 | 10135 | 2 | |
| 14 | Rod cap | 10174 | 4 | |
| 15 | Allen screw M8x60 DIN 912 | 10171 | 2 | |
| 16 | Lock washer Ø8 DIN 6798 | 10173 | 4 | |
| 17 | Hexagonal nut M8 DIN 934 | 10172 | 4 | |
| 18 | Handlebar superior half clamp Ø26 | 10104 | 2 | |
| 19 | Handlebar inferior half clamp Ø26 | 10103 | 2 | |
| 20 | Spacer for handlebar Ø22 | 10013 | 2 | |
| 21 | Allen screw M6x15 DIN 912 | 10157 | 4 | |
| 22 | Headlight Trim | RIBETEAHP–900H | 1 |
