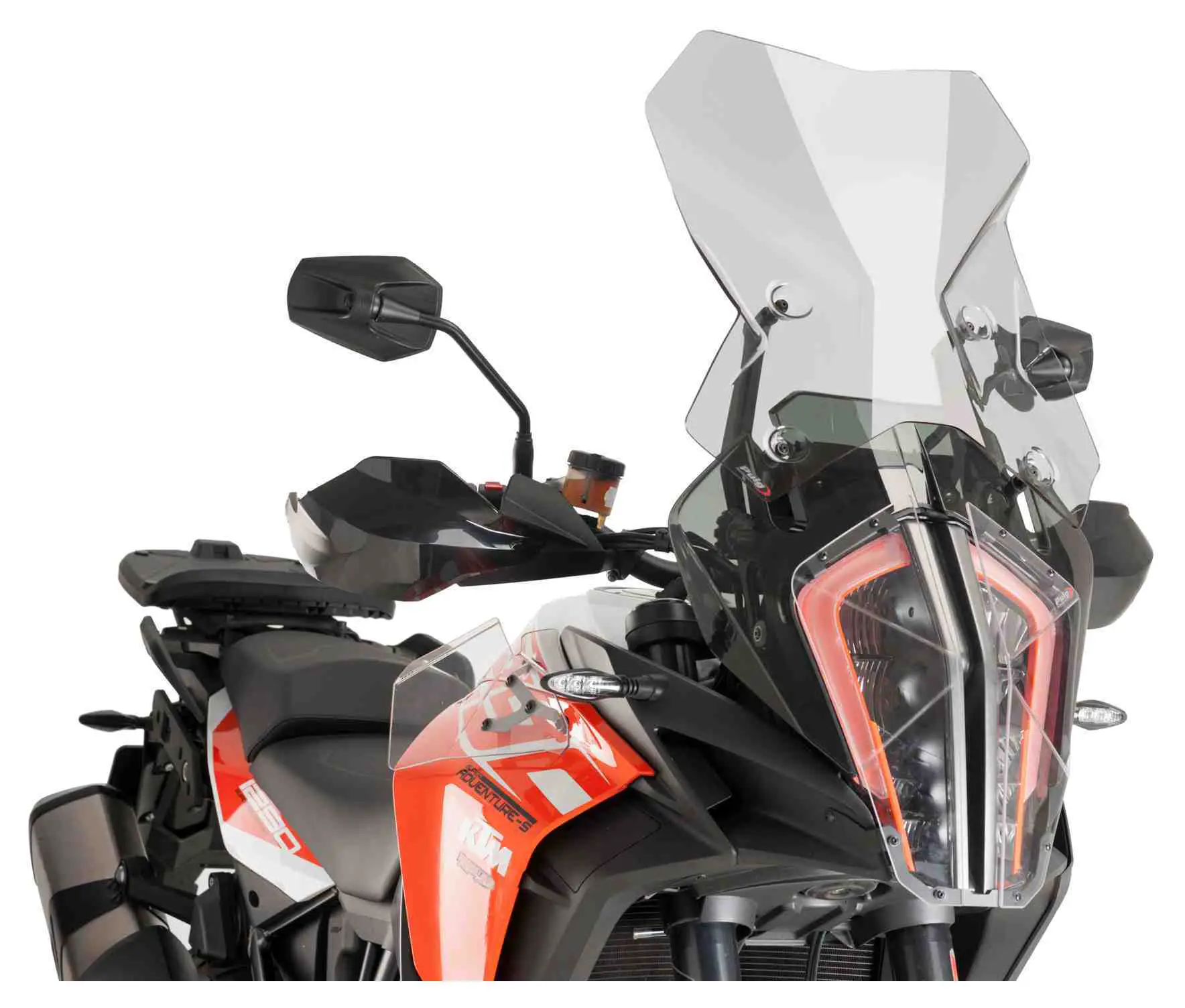

Puig KTM 1290 Super Adventure Touring Windscreen

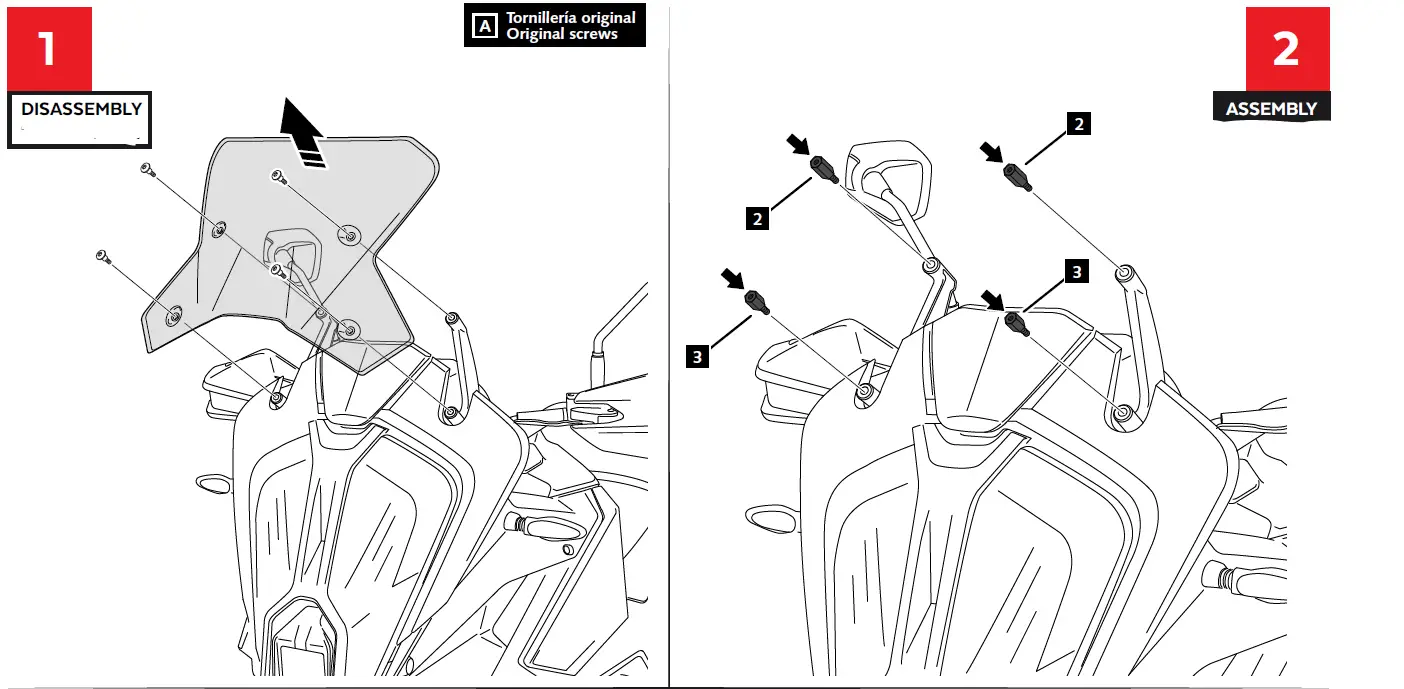

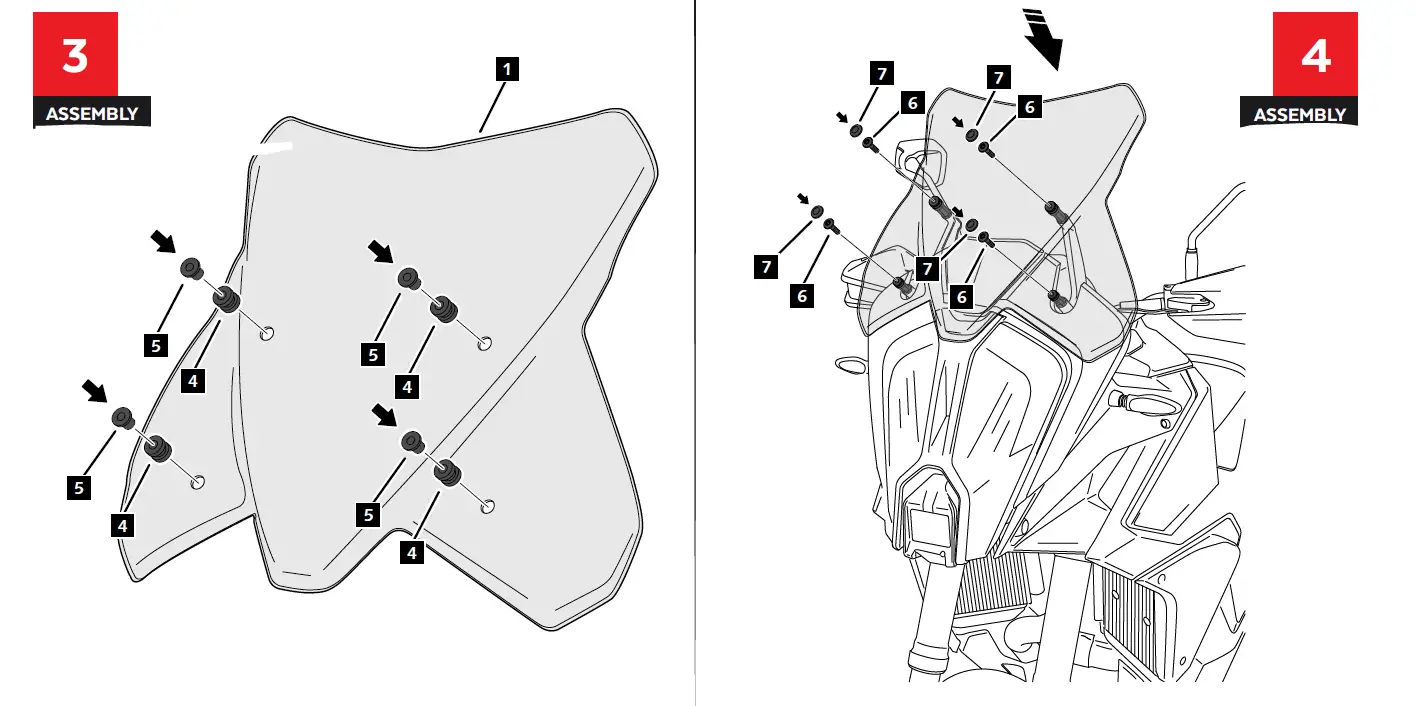

OVERVIEW
DESCRIPTION
| ID. | PIEZA/PART | DESCRIPTION | QTY. | REF.: | |
|
1 | ![]() | TOURING screen |
1 | 20422W/H/FM3 | |
| 2 | M5x8 special screw hexagonal Lenght 25 | 2 | TORNI-EM5—732 | ||
| 3 | M5x8 special screw hexagonal Lenght 14 | 2 | TORNI-EC—- 597 | ||
| 4 | Ø12xØ6×9 Silentblock | 4 | AROPASACABLES-3 | ||
| 5 | Ø12xØ6,8×7,3 bush with flange | 4 | CASQUI-1A—750 | ||
| 6 | M5x16 Ø11 ISO 7380 allen Screw | 4 | TORNI-I7380-493 | ||
| 7 | M5 ISO7380 screw cap | 4 | TAPON——— 85 | ||
| * Algunos de los Componentes se suministran montados Some components are supplied assembled Created by: www.rrdisseny.cat | |||||
