Puig 4620 Plus Windscreen
Product Information
This product is a windshield plus model designed for mounting on a Kawasaki Z900RS ’18- motorcycle. It comes with a kit (REF 10931) that includes various parts and screws for installation.
Product Usage Instructions
- Start by disassembling the existing windshield on your Kawasaki Z900RS ’18- motorcycle.
- Choose the appropriate mounting system based on the model:
- Option A: ID9+ ID10+ ID11+ID8
- Option B: Original screw + ID11 (if necessary) + Original nut

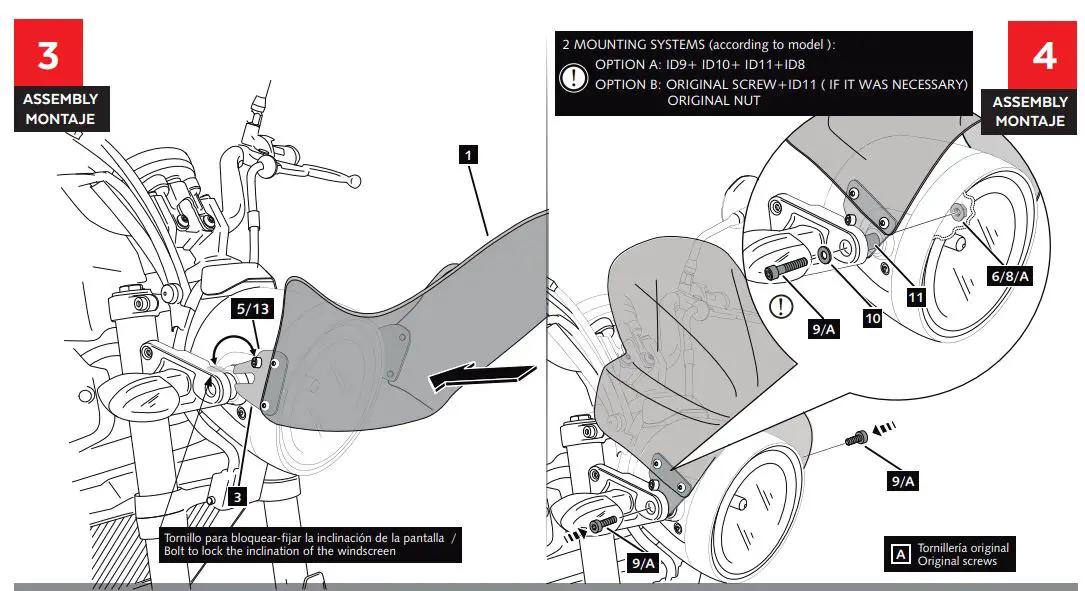

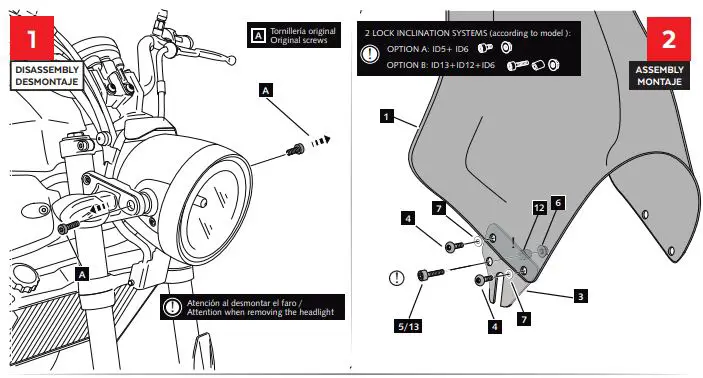

- Follow the assembly instructions:
- Lock the inclination system using either Option A (ID5+ ID6) or Option B (ID13+ID12+ID6).
- Mount the screen using the provided M8x40 DIN 912 screw (TORNI-AD912-475).
Please note that maintaining the vehicle is essential, and it is recommended to follow these mounting instructions whenever maintenance is required. For any further information or assistance, you can visit the official website at www.puig.tv or www.puigusa.com. You can also contact Puig via email at [email protected] or [email protected].

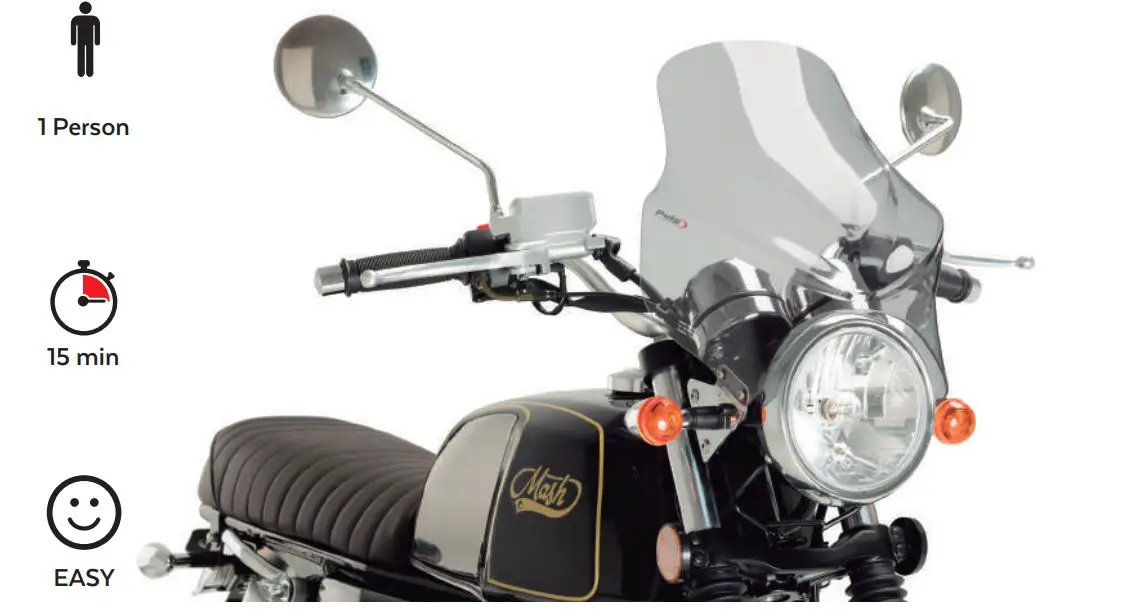

OVERVIEW
TOOLS REQUIRED
Do not use thread-lock glue on screws/nuts as it can produce cracking on the plastic.
It would be convenient to re-tight the windshield screws, especially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.
| ID | PIEZA/PART | DESCRIPTION | QTY | REF |
| 1 |  |
Screen |
1 |
10228F/H/NM3 |
| 2 |  | Inox left support | 1 | SOPORT2PIP2-L06 |
| 3 | | Inox right support | 1 | SOPORT2PIP2-R06 |
| 4 |  | M6x8 ISO 7.380 screw | 4 | TORNIAI7380-300 |
| 5 |  | M6x12 DIN912 screw | 2 | TORNIAD912-0230 |
| 6 |  | M6 DIN 934 Nut | 2 | TUERCAEM6G-0213 |
| 7 |  | Ø6,1 xØ11 x1mm plastic washer | 4 | ARANDEPNVCN0246 |
| 8 |  | M8 DIN 6923 nut | 2 | TUERCEG6923-249 |
| 9 |  | M8x35 DIN 912 screw | 2 | TORNI-AD912-196 |
| 10 |  | Ø18 xØ8 x1,5mm flat washer | 2 | ARANDPD125A-018 |
| 11 |  | Ø15 xØ8 x9mm Arrowhead | 2 | CASQUI8159-0266 |
| 12 |  | Ø12 xØ6 x8,5mm Arrowhead | 2 | CASQUI—- 0298 |
| 13 |  | M6x20 DIN912 Screw | 2 | TORNI-AD912-489 |
| 14 |  | 30x30x7mm microporous adhesive (**) | 2 | ADHESI-M30DX7– |
TO INSERT BETWEEN THE SCREEN AND THE BIKE PANEL, IF IT WAS NECESSARY

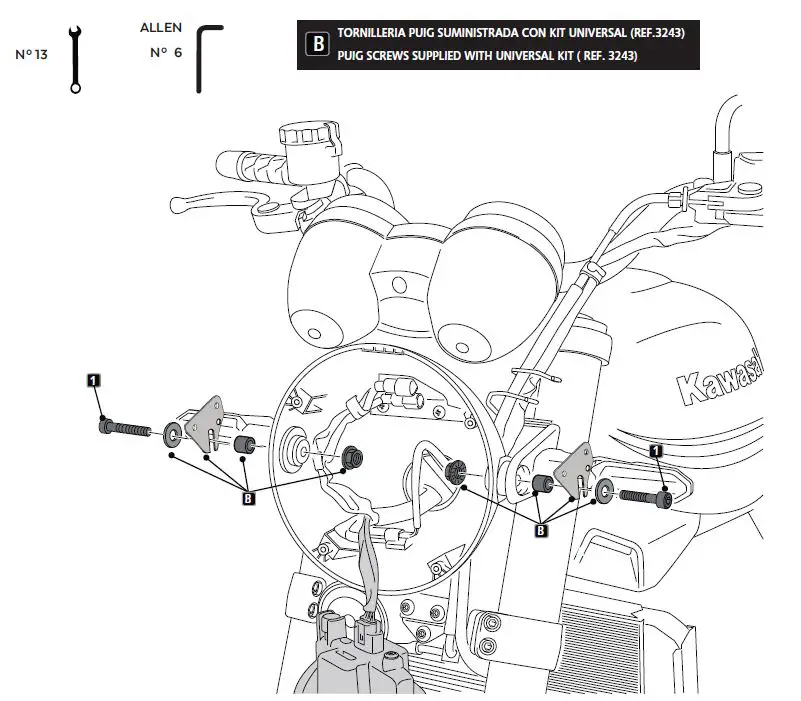

MOUNTING INSTRUCTIONS
| ID | PIEZA/PART | DESCRIPTION | QTY | REF |
| 1 |  | M8x40 DIN 912 screw | 2 | TORNI-AD912-475 |
