Puig Touring Windscreen Harley Davidson Pan America
PARTS
| ID | PIEZA/PART | DESCRIPTION | QTY | REF |

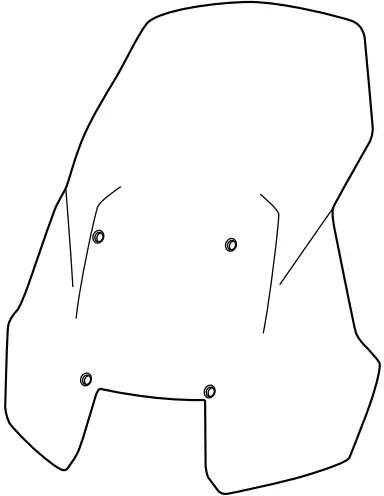

| 1 |  | Touring screen | 1 | 20840W/H/FM3 |
| 2 |  | M5x17 special screw Hexagonal lenght 20 | 2 | TORNI-EM5—664 |
| 3 |  | M5x9 special screw Hexagonal lenght 12 | 2 | |
| 4 |  | M6 DIN9021 washer | 4 | ARANDPD9021-037 |
| 5 |  | Ø12xØ6×9 Silentblock | 4 | AROPASACABLES-3 |
| 6 |  | Ø12xØ6,8×7,3 bush with flange | 4 | CASQUI-1A—750 |
| 7 |  | M5x16 Ø11 ISO 7380 allen screw | 4 | TORNI-I7380-493 |
| 8 |  | M5 ISO 7380 screw cap | 4 | TAPON——– 85 |

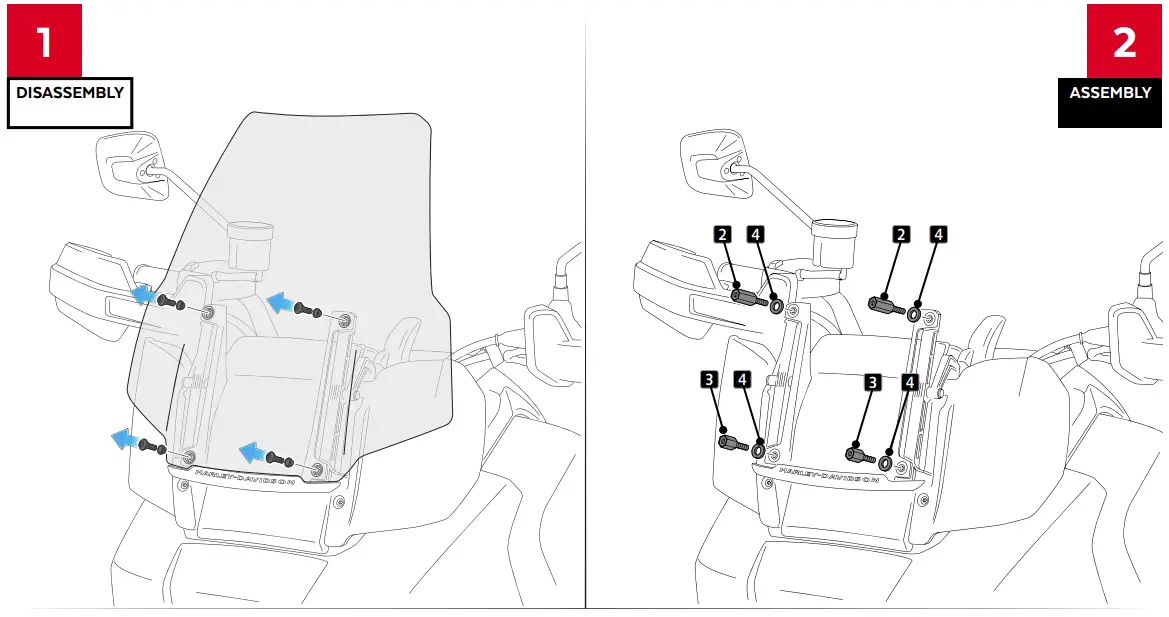

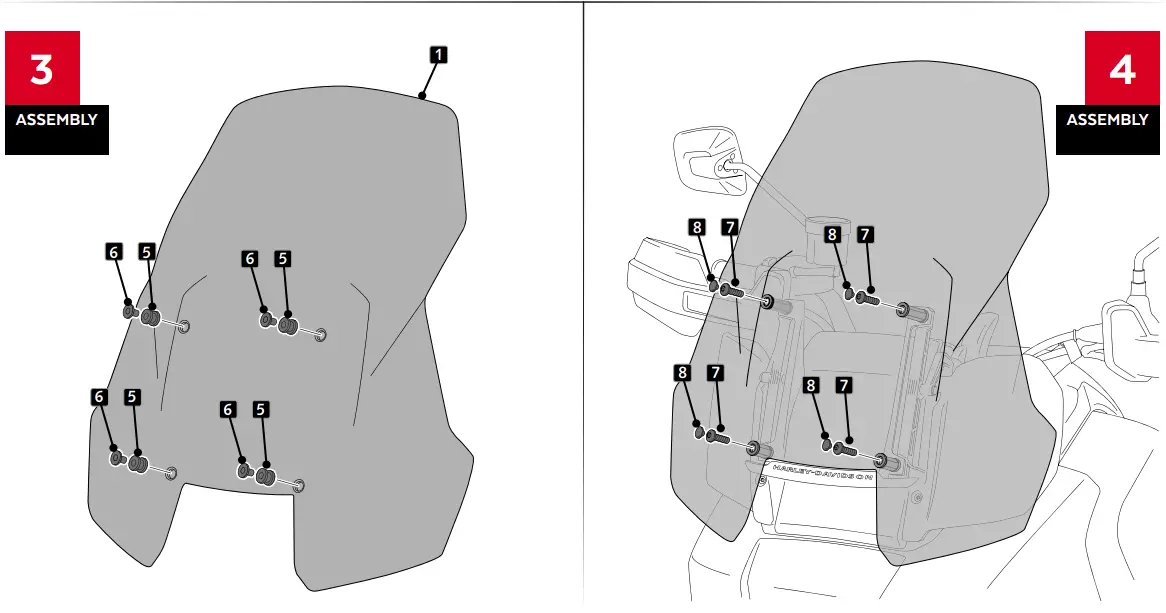

MOUNTING INSTRUCTIONS
