THUNDERBIKE 42-85-010 Headscreen Windshield Kit for Harley Davidson Sportster S
PACKING LIST
Amount Item
- 1. Bracket bicolor
- 2. Spacer for bracket
- 2. Allen head screw M6*55

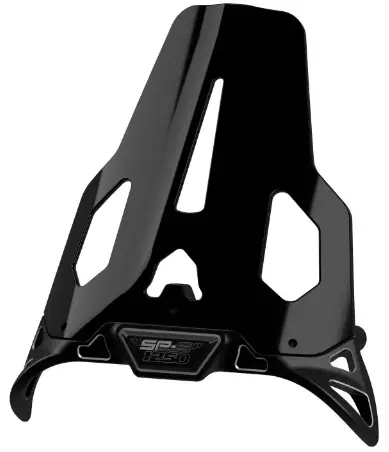

- 1. Windscreen
- 3. Lens head screw M5*10
- 3. Washer Ø6 (plastic)
MOUNTING INSTRUCTIONS

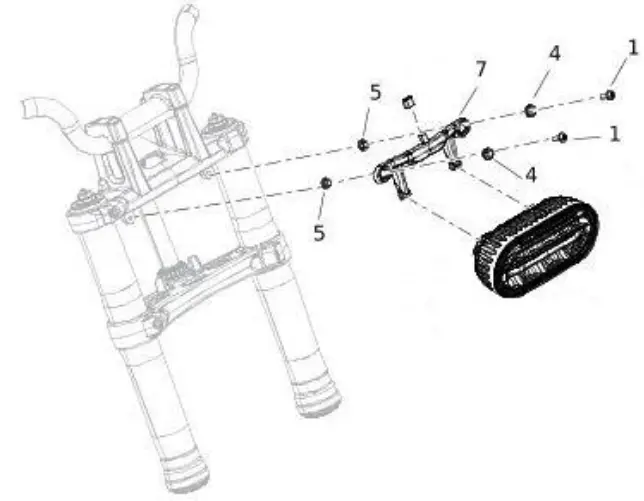

- Remove the screws (1) of your headlamp bracket (7). The rubber mounts (4,5) are used further!

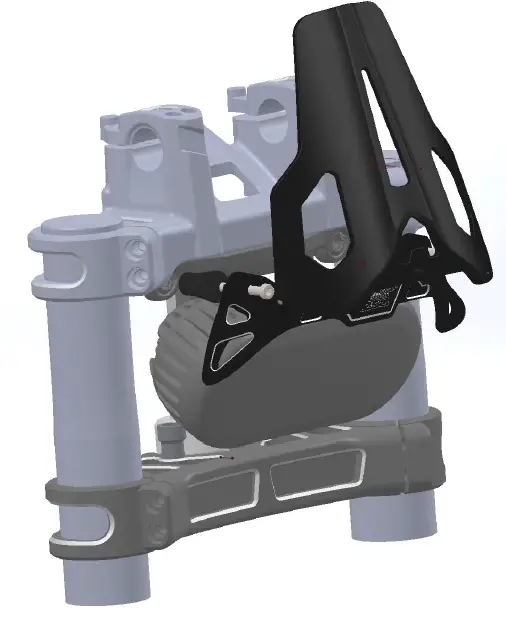

- Install the new TB windscreen bracket to your oem headlamp bracket using the included Allen head screws M6*55. With this step, place the included spacers on each side between the brackets.
- Mount the windscreen to the bracket using the included plastic washers and lens head screws.
- Check the headlamp height adjustment before your test ride according to the manufacturer’s instructions.
- The Thunderbike team wishes you fun with your new parts. Have a nice and safe ride!
