Puig Suzuki GSX-1000, GSX-S950

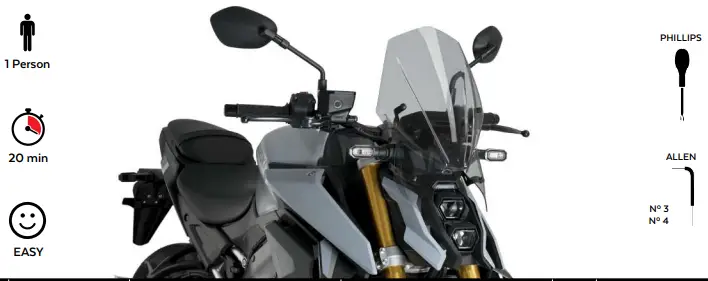

MOUNTING INSTRUCTIONS
| ID. | PIEZA/PART | DESCRIPTION | QTY. | REF.: | |
|
1 |  |
|
Touring screen |
1 |
20835W/H/N/FM3 |
| 2 |  |
| Right support | 1 | SOP3P2-R–20833 |
| 3 |  |
| Left support | 1 | SOP3P2-L–20833 |
| 4 |  |
| Central support | 1 | SOP3P2-C–20833 |
| 5 |  | M5x25 Ø11 ISO 7380 allen screw | 2 | TORNI-I7380-766 | |
| 6 |  | Ø8,5xØ13×6 arrowhead | 2 | CASQUI—– 776 | |
| 7 |  | Ø9 xØ6 x8mm silentblock | 4 | AROPASACABLES-3 | |
| 8 |  | Ø12xØ6,8×7,3 bush with flange | 4 | CASQUI-1A—750 | |
| 9 |  | M5x16 Ø11 ISO 7380 allen screw | 4 | TORNI-I7380-493 | |
| 10 |  | M5 ISO 7380 screw cap | 4 | TAPON——- 85 |

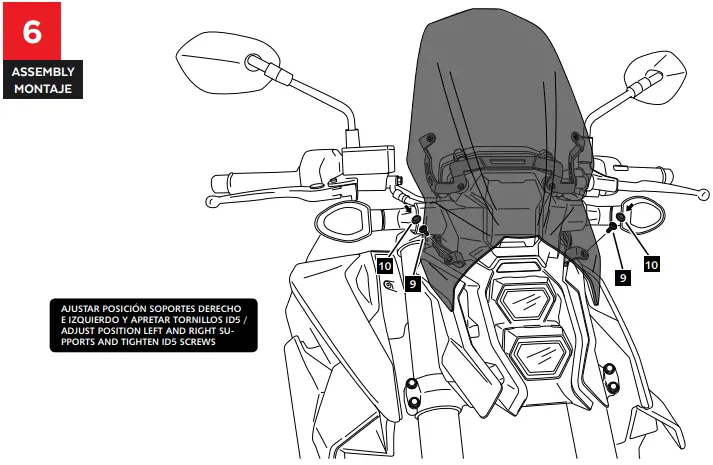

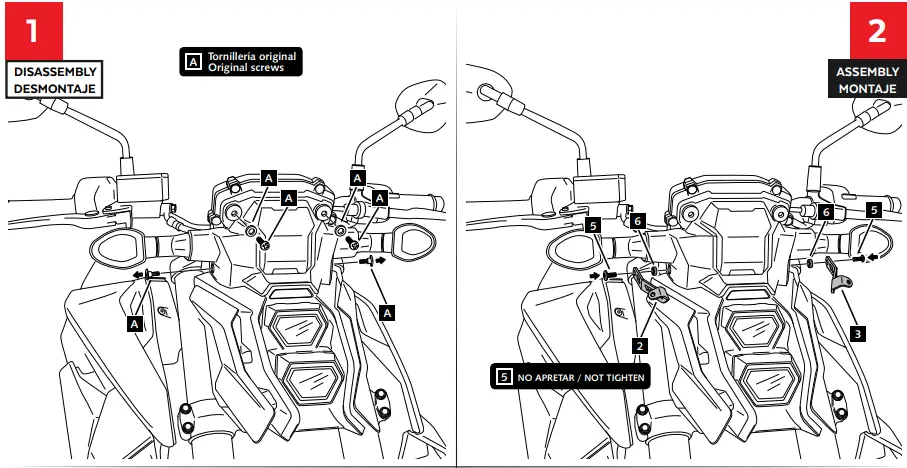

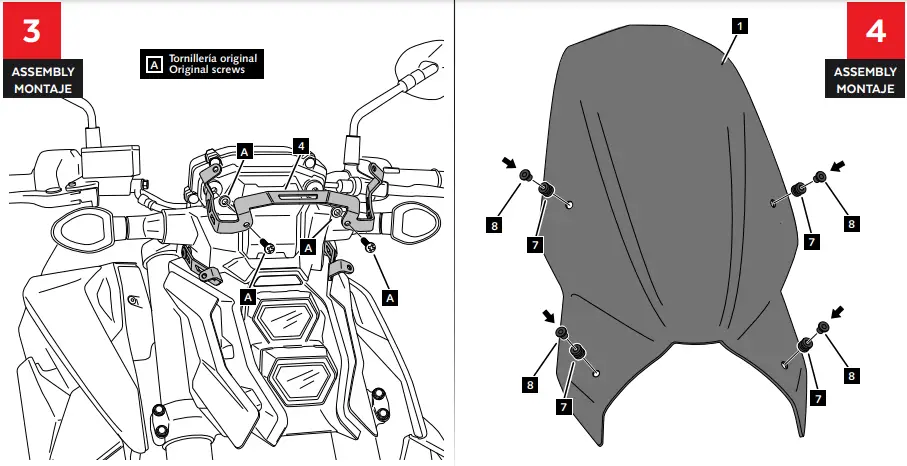

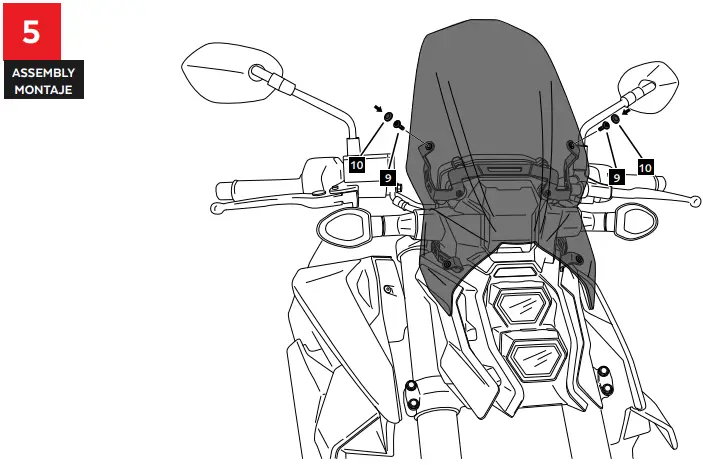

INSTALLATION
