INDIAN SCOUT BOBBER ’17-
MOUNTING INSTRUCTIONS
SEMIFAIRING MINI BATWING SPORT MODEL
REF 21073
21073 Motorcycle Accessories Indian SCOUT BOBBER 2020
It would be convinient to retight the semifairing screws, specially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.

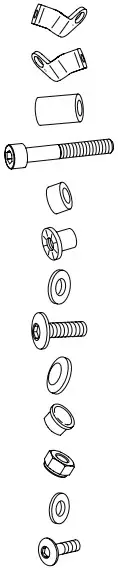

| ID. | PART | DESCRIPTION | QTY | REF. |
| 1 |  | Semifairing | 1 | 10897 |
| 2 |  | SPORT screen | 1 | 10899 |
| 3 |  | Upper left support ( · ) | 1 | SOP4P2L1BTM0021 |
| 4 |  | Upper right support ( · · ) | 1 | SOP4P2R1BTM0021 |
| 5 |  | Lower left support ( · ) | 1 | SOP4P2L2BTM0021 |
| 6 | Lower right support ( · · ) | 1 | SOP4P2R2BTM0021 | |
| 7 | Ø8,5xØ14x15mm arrowhead | 2 | CASQUI81415-101 | |

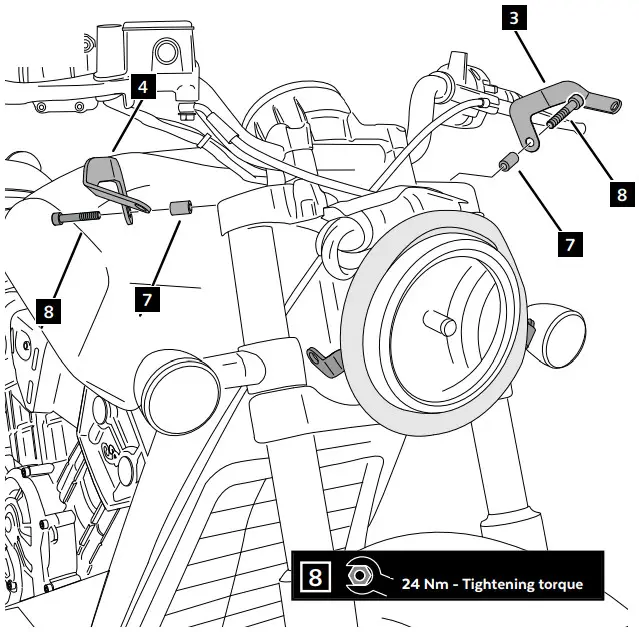

| 8 | M8x45 DIN912 Screw | 2 | TORNI-D912–622 | |
| 9 | Ø8xØ6×5,5mm arrowhead | 2 | CASQUI—–641 | |

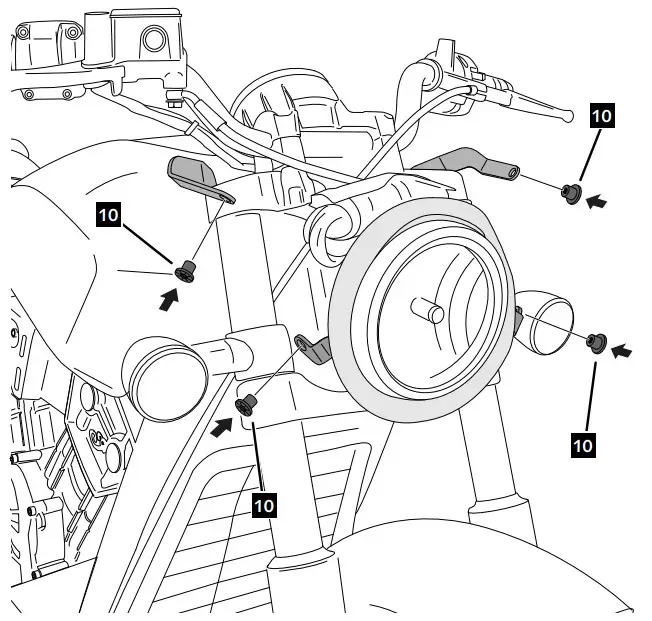

| 10 | M5 silentblock | 4 | SILENBTM5-046/1 | |
| 11 | M5x1 Nylon washer | 4 | ARNV00000000245 | |
| 12 | M5x16 Ø11 ISO 7380 allen screw | 6 | TORNI-I7380-493 | |
| 13 | M5 ISO 7380 cap | 4 | TAPON——–85 | |
| 14 | M4 cap | 3 | TAPON——–91 | |
| 15 | M4 nut | 3 | TUERCAE985-0290 | |
| 16 | M4 nylon washer | 6 | ARNV00000000311 | |
| 17 | M4x12 Ø9 ISO 7380 allen screw | 3 | TORNI-I7380-800 |

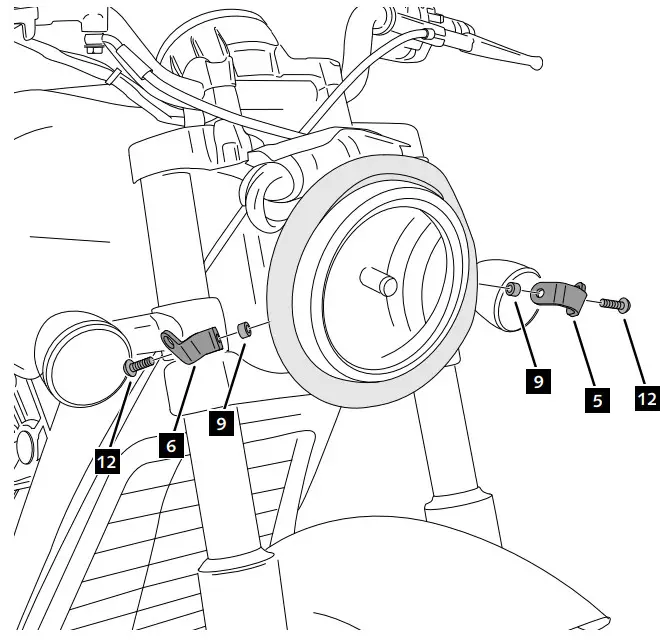

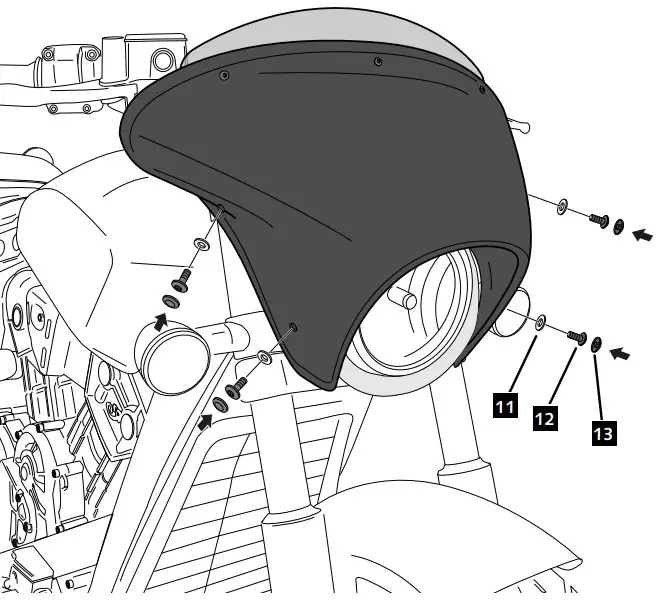

MOUNTING INSTRUCTIONS
The left side disassembly is shown as an example, so the same step can be performed for the right side disassembly

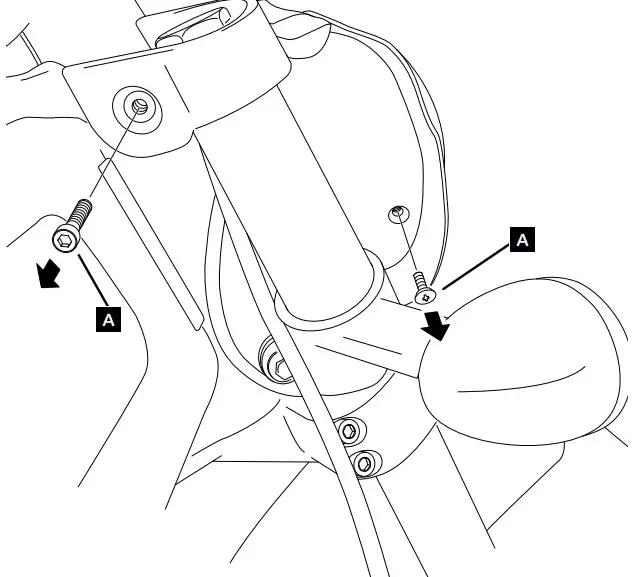

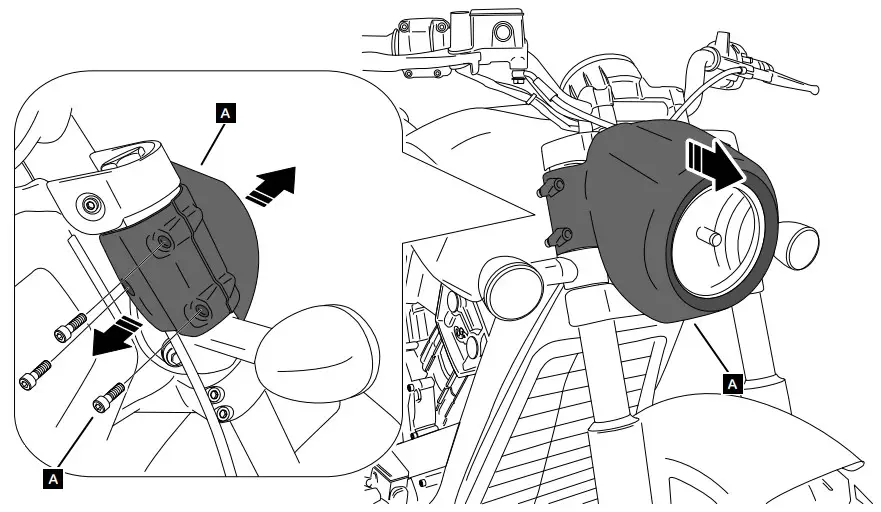

DESMONTAJE
The left side disassembly is shown as an example, so the same step can be performed for the right side disassembly
DO NOT USE THREADLOCKER OR GLUE AS IT MAY PRODUCE CRACKING ON THE SEMIFAIRING.
Created by: www.rrdisseny.cat
rrDisseny
