Harley Davidson Sportster
Instruction Manual

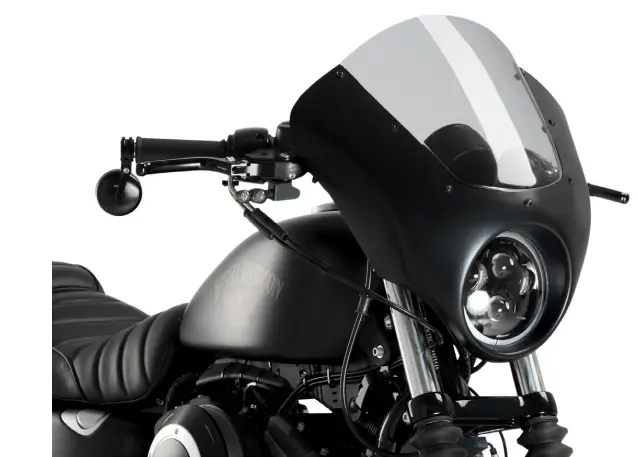

21097 Harley Davidson Sportster
It would be convenient to right the semi-fairing screws, especially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.
| DESCRIPTION | QTY. | REF. |
| Dark Night semi fairing | 1 | 10902N |
| Screen | 1 | 10904H/F |
| Right metal support (R) | 1 | SOP2P3R-CUP0015 |
| Left metal support (L) | 1 | SOP2P3L-CUP0015 |
| ANSIB 18.3 CLASE 12.9 UNC 3/8″x51allen screw | 2 | TORNI-ANSIB-846 |
| Ø10,5 x Ø16 x 15 spacer | 2 | CASQUE——845 |
| M5 silent block | 11 | SILENBTM5-046/1 |
| M5x1 nylon washer | 11 | ARNV0000000245 |
| M5x16 Ø11 ISO 7380 allen screw | 11 | TORNI-I7380-493 |
| M5 ISO 7380 screw cap | 11 | APON——–85 |
| Black Cable ties | 1 | ABR-00101100539 |

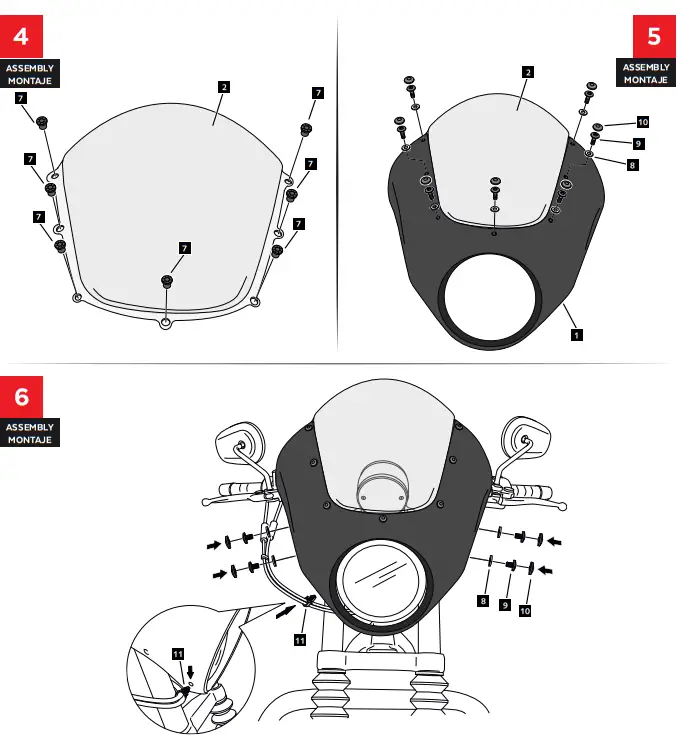

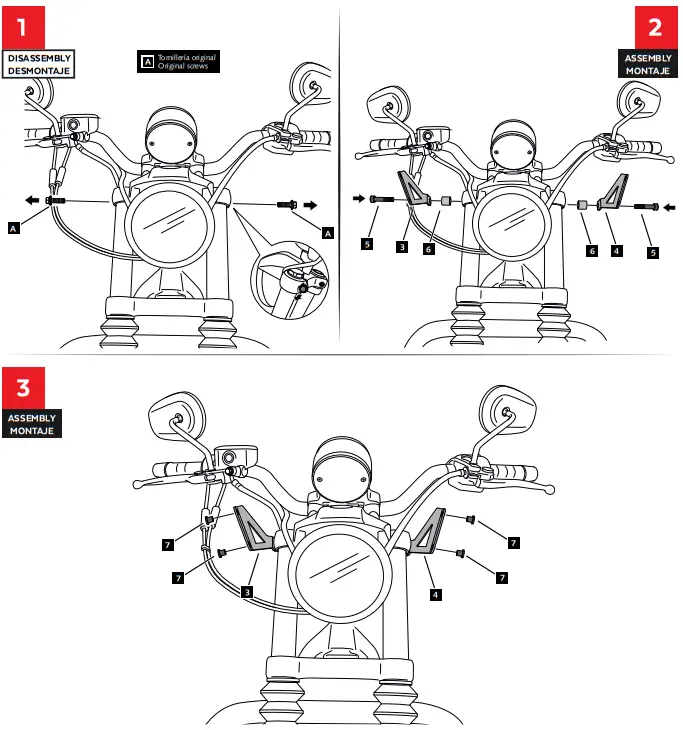

MOUNTING INSTRUCTIONS
 |  |
