SUZUKI DL 1050 V-STROM Engine Guard
Instruction Manual
https://qrgo.page.link/adLuF
INSTRUCTIONS TO ASSEMBLE
You should first mount one side of the engine guard and then the other, otherwise, the engine will be unsupported. All the screws replaced, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle. If no torque specifications are provided in the OEM maintenance manual, may be used 54Nm for all M10 screws and 22Nm for the M8 screw.
Medium-strength liquid thread-locker (i.e., “Loctite”) should be used to secure all screws, bolts, and nuts.
All screws, bolts, and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque.
TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DOES NOT GUARANTEE A FULL PROTECTION IN CASE OF AN ACCIDENT. MOTOPLASTIC-PUIG DECLINES ANY RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE.
The accessory was verified in the basic configuration of the motorcycle. For models with extra factory settings. We cannot assure its compatibility, except for prior consultation. We decline any eventual claim.
| DESCRIPTION | QTY. | REF.: |
| Protector right side | 1 | DEFENSA-20404N |
| Protector left side | 1 | DEFENSA-20404N |
| Central pipe | 1 | DEFENSA-20404N |
| M8x35 DIN912 black allen screw | 2 | TORNI-AD912-196 |
| M8 DIN125/A back washer | 4 | ARANDPD125-018 |
| M8 DIN6923 black nut | 2 | TUERCEG6923-249 |
| M10/125×80 DIN912 allen screw (Right) | 1 | TORNIAD912-0338 |
| M10/125×100 DIN912 allen screw (Left) | 1 | TORNIAD912-0329 |
| Ø22.5 x Ø10.5 long.17mm spacer (Right) | 1 | CASQU487-0-1787 |
| Ø22.5 x Ø10.5 long.20mm spacer (Left) | 1 | CASQU488-0-1788 |
| M10 DIN125/A black washer | 2 | M2AM10DIN125AZB |
| Round tip 16-25 | 2 | CONTERA—-5983 |
| M12/175 bar Long. 388mm | 1 | VARILL19-0-1452 |
| Ø28 x Ø12.5 long.35mm spacer (Right) | 1 | CASQU489-0-1789 |
| Ø28 x Ø12.5 long.22mm spacer (Left) | 1 | CASQU490-0-1790 |
| M12 DIN125/A washer | 2 | ARANM12DIN433ZB |
| M12 DIN985 locknut | 2 | M2TUM12DIN985ZB |
| M12 plastic cap for hex. screw | 2 | ISC00300700106N |
MOUNTING INSTRUCTIONS

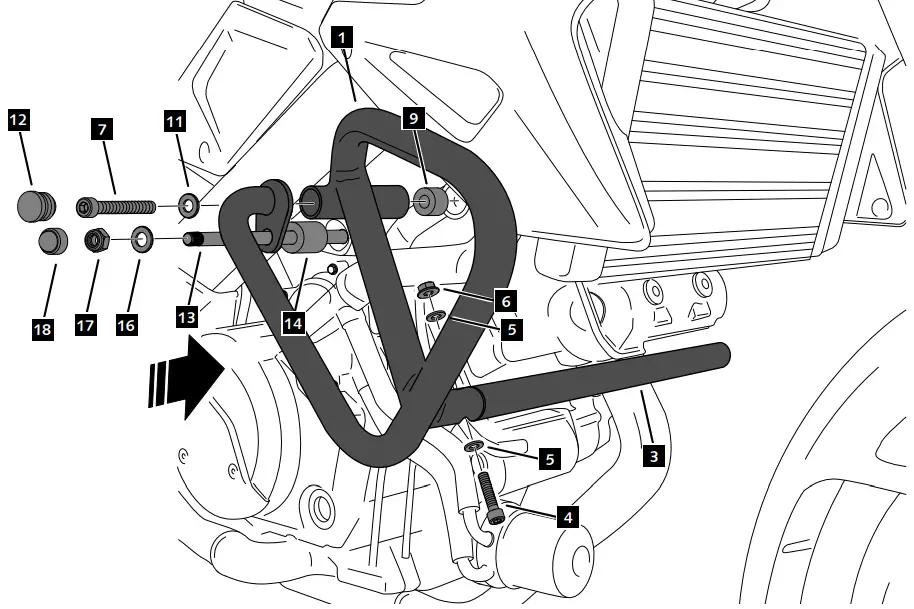

- ASSEMBLY RIGHT SIDE

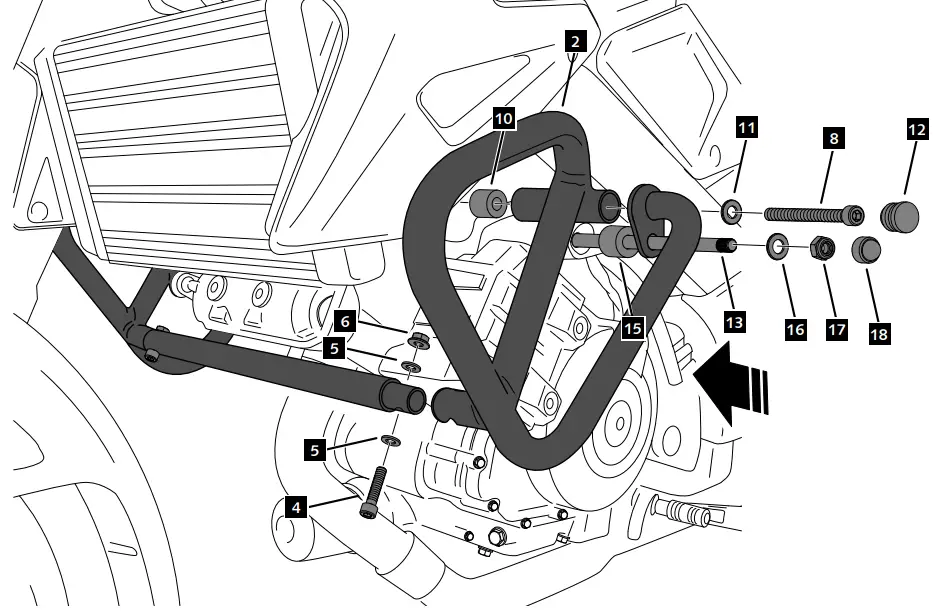

- ASSEMBLY LEFT SIDE
Created by: www.rrdisseny.cat
