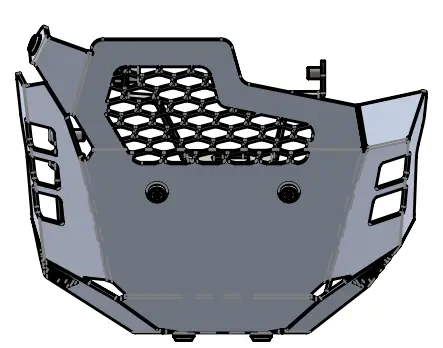

10008316 Engine Guard Kit
Mounting Instruction
10008316 Engine Guard Kit
| RAL Farbton: | Artikelnummer: |
| Color: | Item No.: |
| 9005 (jet black) | 10008316 |
| 9006 (white aluminium) | 10008317 |
Rev.: Ausgabedatum:
Date of issue: ./. 03.06.2021
engine guard kit
max. load
k.E. kg (n.R. lbs)
max. speed
k.E. km/h (n.R. mp/h)
Attention
Cornering and ground clearance can be reduced by using this product!
For your own safty we recommend having installation and/ or servicing carried out by a specialist workshop. We assumes no liability for damage caused by improper installation and/ or maintenance work.
No torque specifications: Use the torque defined by vehicle manufacturer! The standard torque in this table can be used as long as it is within the vehicle manufacturer´s specifications.
Thank you for choosing this quality product from IBEX!
The assembly and/or maintenance of this product requires a good technical understanding. For your own safety, we recommend that the assembly and/or maintenance is carried out by a specialist workshop. Our company assumes no liability for any damage caused by improper assembly or maintenance. Be sure to keep in mind all the notes provided in the assembly instructions. Please also note all the instructions relevant to the assembly in the vehicle manual. Nonobservance can cause damage to the vehicle or danger to the driver! Please keep the assembly instructions as a reference.
General Notes:
Observe any country-specific regulations by the legislature or homologation regulations.
Preparation:
Read the assembly instructions carefully and make sure all parts of the list are available. Make sure that your vehicle stands safely and can´t fall over. Turn off the engine and pull the ignition key. If necessary, allow the engine/exhaust to cool down. When working on the electrics disconnect the vehicle battery. Be sure to use only suitable tools. If necessary get help with the assembly work by a second person.
Assembling:
According to vehicle manufacturers specification all demounted parts and connections must be reassembled or replaced by the parts and connections supplied by our company. If not stated different secure all threads with a medium-strong liquid screw protection. If not stated different by the vehicle manufacturer or our company, all bolts and nuts must be tightened according to A4/ISO. After assembly, make sure that all previously demounted parts and connections have been properly remounted.
Funktion Check:
After assembly, pay attention to the absolute freedom of movement and proper function of all vehicle parts. Cables, trains and hoses must not scrub or be clamped. Do a comprehensive functional check before the start of your journey. After 100 km please check the proper tightness of all parts and connections demounted during assembly.
 |  |  |  |
| Ansicht von links in Fahrtrichtung (left side) | Ansicht von rechts in Fahrtrichtung (right side) | Positionsnummer & Anzugsmoment (position number and torque) | Schraubensicherung verwenden (use screw lock) |
| (Pos. No.) | (drawing number) | (description) | (quantity) | (Nm) | (special featurei) |

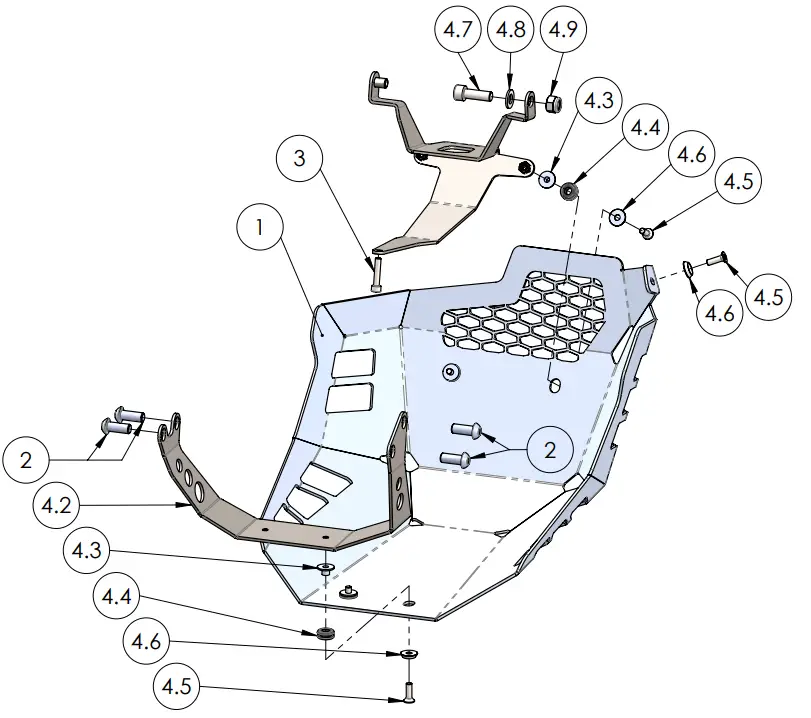

| 1 | 2089_0_13 | engine protection | 1 | ||
| 2 | ISO 7380 – M8 x 25×1.25 | original part | 4 | 47 | Metrisches Feingewinde |
| 3 | DIN ISO 912 – M6 x 30 | original part | 1 | 6 | |
| 4 | 2089_0_16 | mounting kit | 1 | ||
| 4.1 | 2089_0_15 | bracket compl. | 1 | ||
| 4.2 | 2089_0_11 | bracket | 1 | ||
| 4.3 | 100_0_55 | spacer | 4 | ||
| 4.4 | 18x11x8; t=3 | standard grommet | 4 | ||
| 4.5 | DIN 7991 – M6 x 20 | countersunk hexagon socket screw | 5 | 6 | |
| 4.6 | 100_ 0 _11 | washer f. countersunk screw | 5 | ||
| 4.7 | DIN ISO 912 M10 x 30 | hexagon socket srew | 1 | 47 | |
| 4.8 | DIN 125 – A 10.5 | washer | 1 | ||
| 4.9 | DIN EN ISO 985 – M10 | lock nut | 1 |
Copyright by:
IBEX GmbH Sosaer Straße 35 01257 Dresden
Errors and changes expected. Subject to technical and design changes.
Datum der Konfektionierung: (packaging date)
Email: [email protected]
Tel.: 0351/ 27278100
Fax: 0351/ 27278101
pos.no in parked
