Puig 20833 Suzuki GSX-S1000 Plexiglas Shield
MOUNTING INSTRUCTIONS
REF 20833 WINDSHIELD NG SPORT
| ID. | PIEZA/PART | DESCRIPTION | QTY. | REF.: |
| 1 |  | Sport screen | 1 | 20833W/H/N/F/AM3 |
| 2 |  | Right support | 1 | SOP3P2-R–20833 |

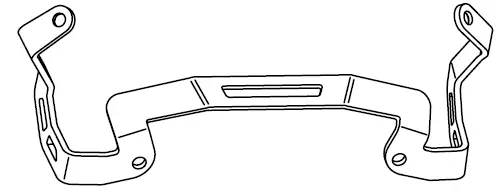

| 3 |  | Left support | 1 | SOP3P2-L–20833 |
| 4 |  | Central support | 1 | SOP3P2-C–20833 |
| 5 |  | M5x25 Ø11 ISO 7380 allen screw | 2 | TORNI-I7380-766 |
| 6 |  | Ø8,5xØ13×6 arrowhead | 2 | CASQUI—– 776 |
| 7 |  | Ø9 xØ6 x8mm | 4 | AROPASACABLES-3 |
| 8 |  | Ø12xØ6,8×7,3 bush with flange | 4 | CASQUI-1A—750 |
| 9 |  | M5x16 Ø11 ISO 7380 allen screw | 4 | TORNI-I7380-493 |
| 10 |  | M5 ISO 7380 screw cap | 4 | TAPON——- 85 |
MOUNTING INSTRUCTIONS
