20631N Triumph Trident
TRIUMPH TRIDENT 660 ’21
REF 20631N
PROTECTOR MOTOR VINTAGE 2.0
https://qrgo.page.link/WJJST
INSTRUCTIONS TO ASSEMBLE

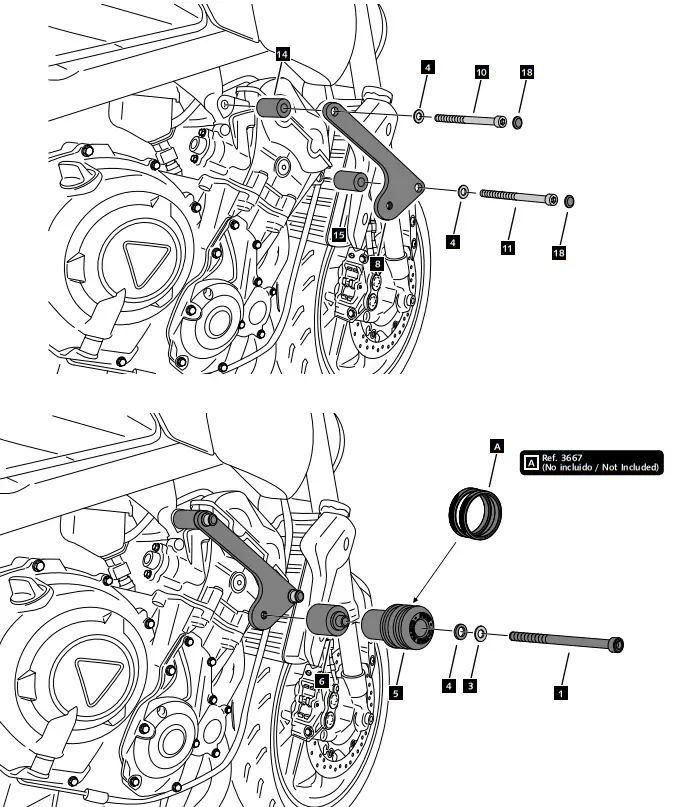

Remove the fasteners that subject the chassis to the engine. Mount the protectors on each own side as the figure below shows. Tight the set, and place the caps. All the screws replaced, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle. if no torque specifications are provided in the OEM maintenance manual, may be used 54Nm for all M10 screws. Medium-strength liquid thread-locker (i.e. “Loctite”) should be used to secure all screws, bolts, and nuts. All screws, bolts, and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque.
TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DOES NOT GUARANTEE A FULL PROTECTION IN CASE OF AN ACCIDENT. MOTOPLASTIC-PUIG DECLINES ANY RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE. WENN SIE KEIN AUSGEBILDETER MECHANIKER SIND, WENDEN SIE SICH BITTE AN IHRE FACHWERKSTATT.
| ID. | DESCRIPTION | QTY. | REF.: |
| 1 | M10/150×70 DIN912 screw | 1 | TORNIAD912-0347 |
| 2 | M10/150×100 DIN912 screw | 1 | TORNIAD912-0355 |
| 3 | M10 DIN6798/A washer | 2 | M2AM10DIN6798ZB |
| 4 | M10 washer | 6 | M2AM10DIN125AZB |
| 5 | Nylon Vintage Protector | 2 | PROTECVINTAGE– |
| 6 | Black aluminium spacer (40mm) | 1 | CASQU136-0-1436 |
| 7 | Black aluminium spacer (65mm) | 1 | CASQU140-0-1440 |
| 8 | Black right platen | 1 | PLATI398-0-0398 |
| 9 | Black left platen | 1 | PLATI170-0-0170 |
| 10 | M10/125×80 DIN912 screw | 1 | TORNIAD912-0338 |
| 11 | M10/125×100 DIN912 screw | 1 | TORNIAD912-0329 |
| 12 | M10/125×50 DIN912 screw | 1 | TORNIAD912-0335 |
| 13 | M10/125×120 DIN912 screw | 1 | TORNIAD912-452Z |
| 14 | Black aluminium spacer (32mm) | 1 | CASQU309-0-1609 |
| 15 | Black aluminium spacer (39mm) | 1 | CASQU468-0-1768 |
| 16 | Black aluminium spacer (10mm) | 1 | CASQU257-0-1557 |
| 17 | Black aluminium spacer (53mm) | 1 | CASQU194-0-1494 |
| 18 | DIN912 screw cap | 4 | TAPA–CHC10800E |
RIGHT SIDE
ASSEMBLY
LEFT SIDE
