21394 Puig Sport Screen Triumph Tiger
Product Information

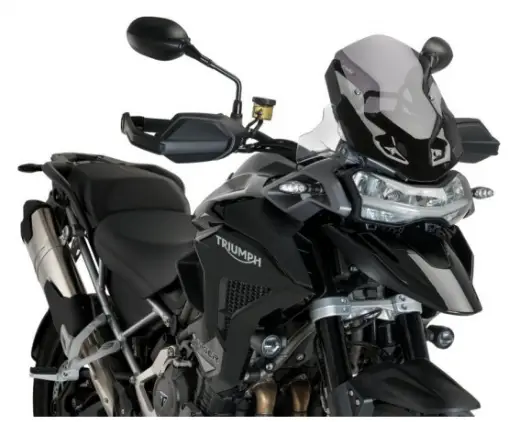

This is a sport screen for the Triumph Tiger 1200 ’22 motorcycle. Its reference number is 21394. It is an easy-to-mount product that comes with some components pre-assembled. The package contains the sport screen and the necessary hardware to mount it.
Product Usage Instructions
Before installing the sport screen, make sure to read the instructions carefully.
Mounting Instructions

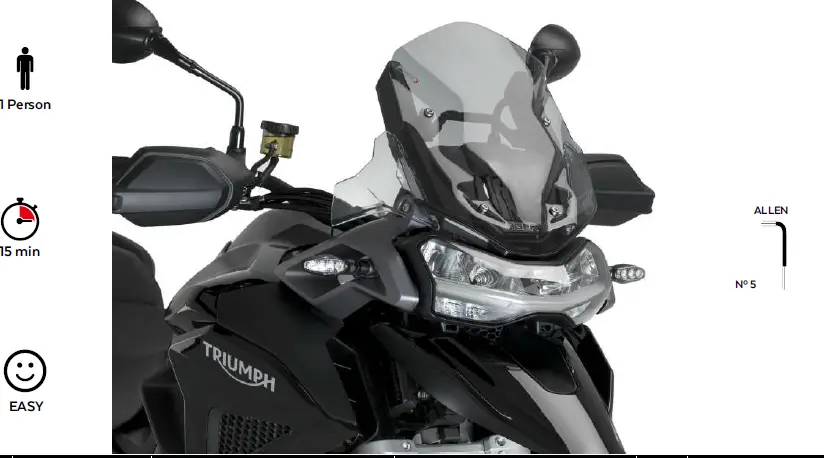

The sport screen can be mounted by one person in approximately 15 minutes. Follow these steps:

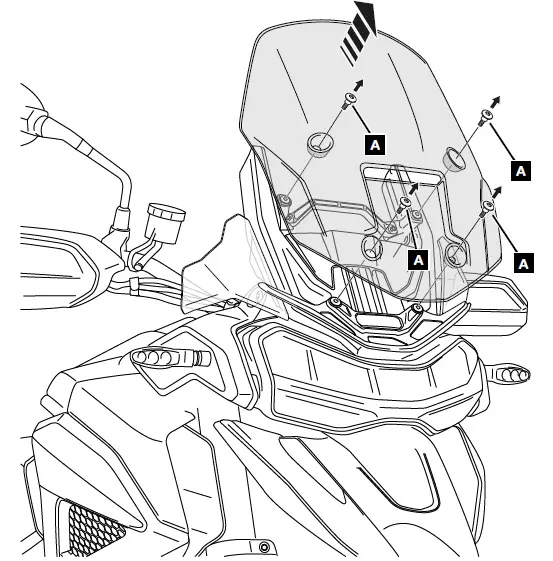

- Disassembly:
- Remove any previously installed windscreen or accessories from the motorcycle if applicable.
- Identify the four bolts that hold the original windscreen in place and remove them using an appropriate tool to separate the windscreen from the fairing.

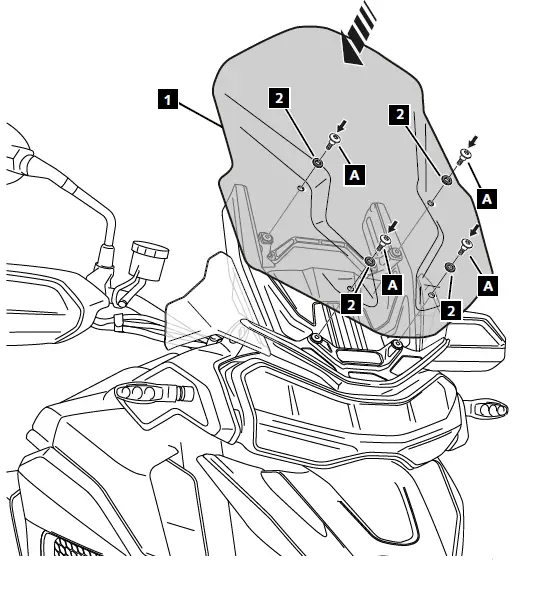

- Assembly:
- Put the Puig sport screen in place of the original windscreen and secure it using the supplied hardware.
- Tighten the screws to a torque of 1.9-2 Nm.
After installation, adjust the sport screen to your preferred position and enjoy a sportier look and improved wind protection while riding your Triumph Tiger 1200 ’22 motorcycle. If you have any questions or encounter any issues during installation, please contact Puig by visiting their website at www.puig.tv or emailing them at [email protected]

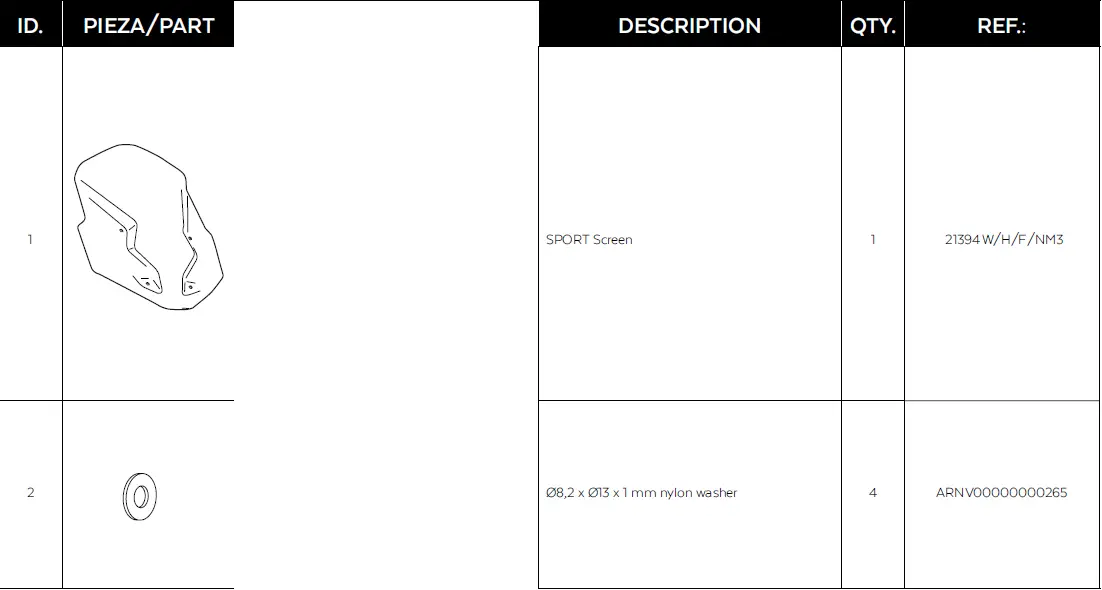

PARTS
Some components are supplied assembled. Created by: www.rrdisseny.cat
