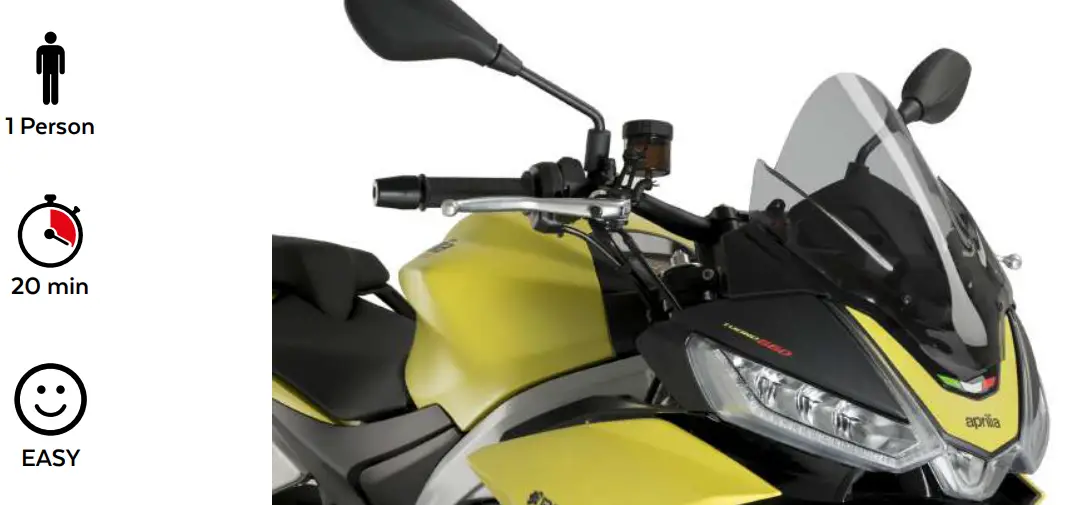

20794N Aprilia Tuono 660 Z-Racing Screen for Motorcycle
Instruction Manual
| ID | PART | DESCRIPTION | QT | REF |
| 1 |  | Z-RACING screen | 1 | 20794H/W/N/FM3 |
| 2 |  | Left support (L) | 1 | SOPOR3P4-L20794 |
| 3 |  | Right support (R) | 1 | SOPOR3P4-R20794 |
| 4 |  | Central support | 1 | SOPOR3P4–20794 |
| 5 |  | M4x16 ISO 7380 Allen screw | 4 | TORNIAI7380-310 |
| 6 |  | M5 silent block | 4 | SILENBTM5-046/1 |
| 7 |  | M5x16 Ø11 ISO 7380 Allen screw | 4 | TORNI-I7380-493 |
| 8 |  | M5 nylon washer | 4 | ARNV0000000245 |
| 9 |  | M5 ISO 7380 screw cap | 4 | TAPON——–85 |

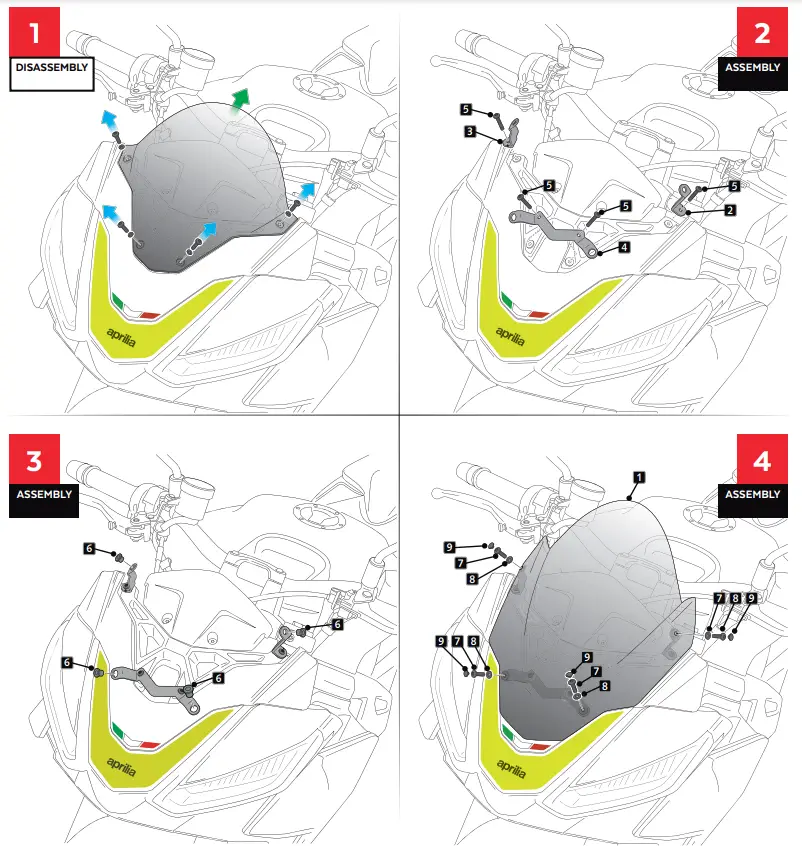

MOUNTING INSTRUCTIONS
Illustrations and layout by: www.ciandisseny.com
CIAN ESTUDI DE DISSENY – Estudi de disseny gràfic i tècnic
