Puig KAWASAKI Z650RS 22 Fender Eliminator Kit
LICENSE SUPPORT
Accessory verified in the basic configuration of the motorcycle. For models with extra factory settings. We cannot assure its compatibility, except for prior consultation. We decline any eventual claim.
- 1 Person
- 1 hour
- INTERMEDIATE
| ID. | PIEZA / PART | DESCRIPCIÓN | ESCRIPTION | QTY. | REF.: |

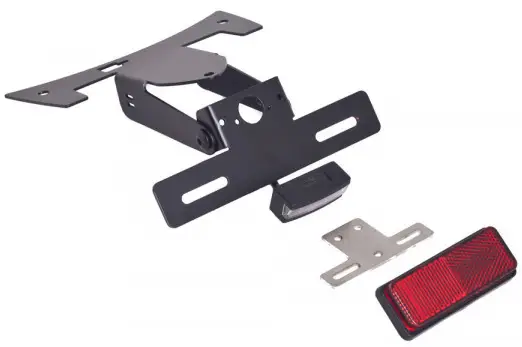

| 1 | Soporte portamatrículas | License support | 1 | CONJUNTO-21119N | |
| 2 | Tornillo M6x15 DIN1001 (Negro) | M6x15 DIN1001 screw (Black) | 4 | TOZB00M60000107 | |
| 3 | Arandela M6 DIN9023 (Negro) | M6 DIN9023 washer (Black) | 4 | ARANDPD9021-037 | |
| 4 | Brida de plástico | Plastic bridle | 5 | BRIDAN100X2´5N | |
| 5 | Luz portamatrículas | Back light | 1 | 5577N | |
| 6 | Catadrióptico | Reflector | 1 | 4481R | |
| 7 | Tapón cabota tornillo M6 DIN1001 | M6 DIN1001 screw cap | 8 | TAPON——– 85 | |
| 8 | Tapón cabota tornillo M5 DIN1001 | M5 DIN1001 screw cap | 1 | TAPON——– 86 | |

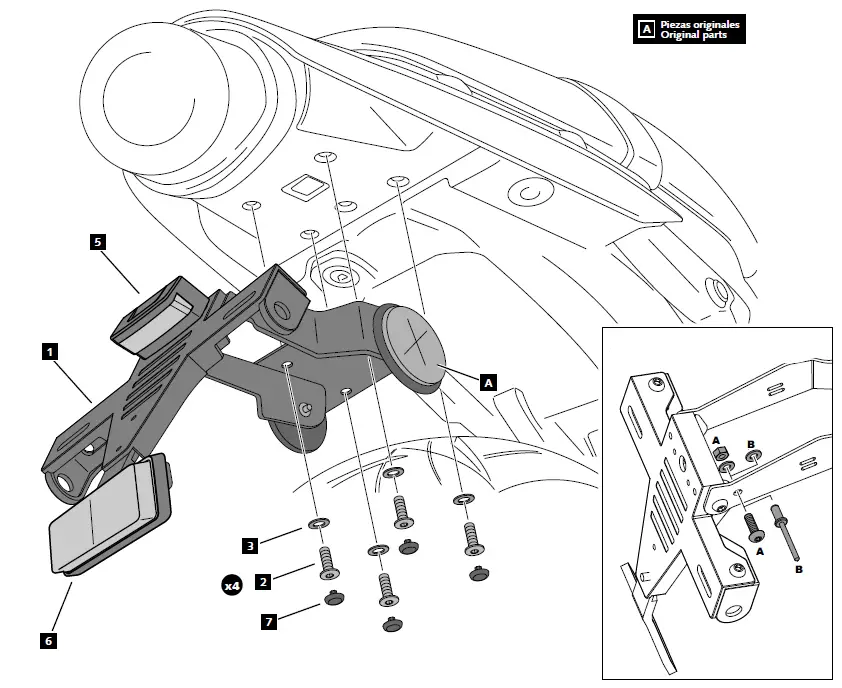

MOUNTING INSTRUCTIONS
Fixation license support rotation (2 OPTIONS A-B)
CONSULTAR EN NUESTRA PAGINA WEB LA DISPONIBILI- DAD DEL VIDEO DE MONTAJE DE ESTA REFERENCIA. CONSULT OUR WEBSITE THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE
