Puig GSX1300R Fender Eliminator Kit Instruction

Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-prodact-img

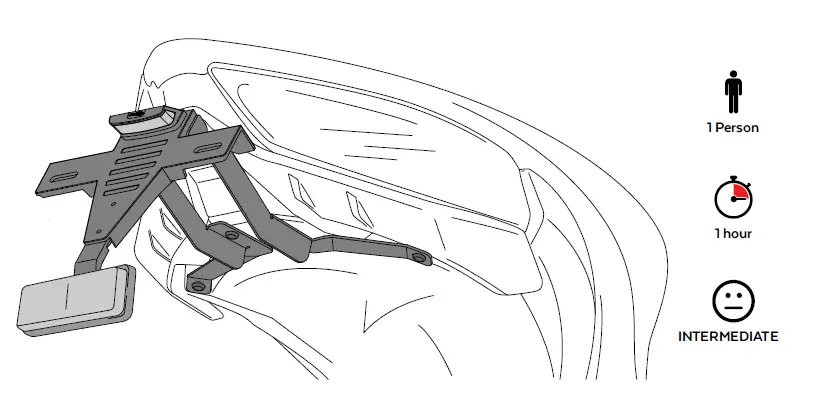

L I C E N S E  S U P P O R TPuig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-1

Accessory verified in the basic configuration of the motorcycle. For models with extra factory settings. We cannot assure its compatibility, except for prior consultation. We decline any eventual claim.

ID.PIEZA / PARTDESCRIPCIÓNESCRIPTIONQTY.REF.:




1

Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-2



Soporte portamatrículas





License support





1





CONJUNTO-20879N

2Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-3Tornillo M6x15 DIN1001 (Negro)M6x15 DIN1001 screw (Black)4TOZB00M60000107
3Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-4Brida de plásticoPlastic bridle5BRIDAN100X2´5N
4Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-5Luz portamatrículasBack light15577N
5Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-6CatadriópticoReflector14481R
6Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-7Tapón cabota tornillo M6 DIN1001M6 DIN1001 screw cap8TAPON——– 85
7Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-8Tapón cabota tornillo M5 DIN1001M5 DIN1001 screw cap1TAPON——– 86

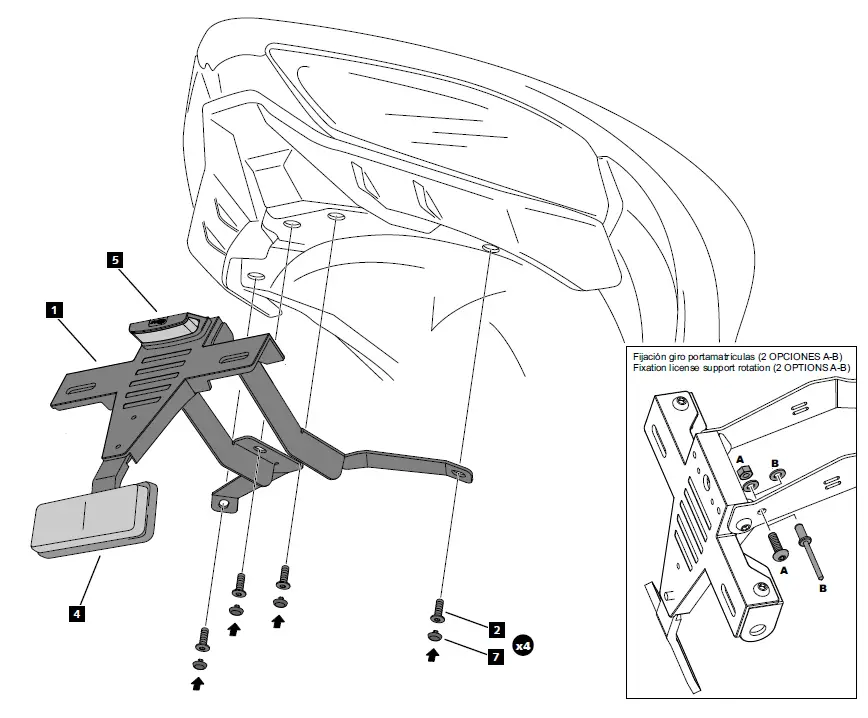

MOUNTING INSTRUCTIONSPuig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-9

CONSULT OUR WEBSITE THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE.

[email protected]
[email protected]

Puig-GSX1300R-Fender-Eliminator-Kit-Instruction-fig-10
