Subordinate New Brand

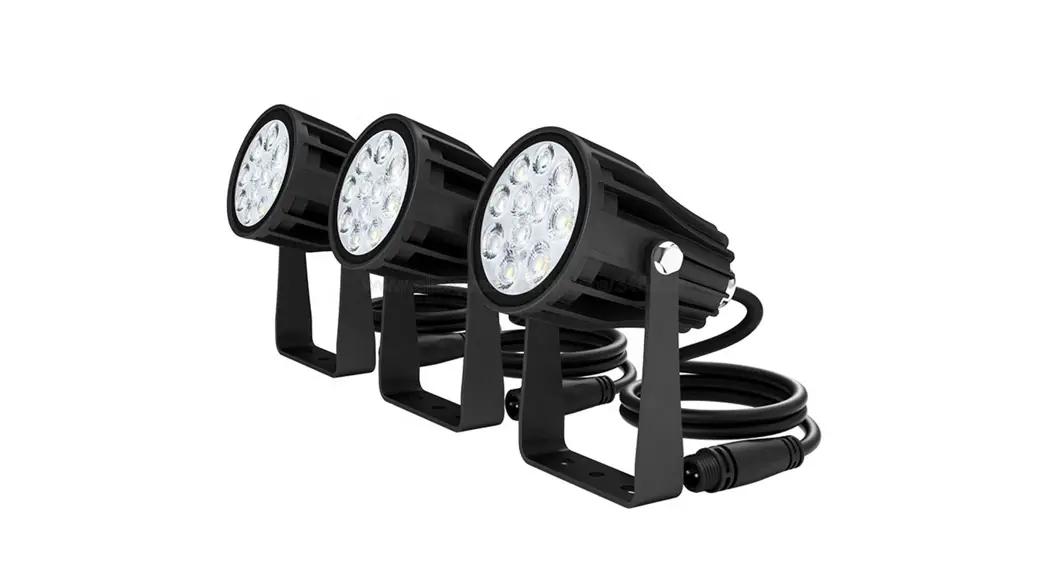

6W RGB+CCT LED Garden Light+Power Cable Kit
Model No.: FUTC08A
Features
| 16 Millions of colors to choose |  |
| Color temperature 2700K~6500K |  |
| Dim brightness/ Saturation |  |
| Beam angle 25° Illumination distance more than 10m |  |
| Signal transmitting & Modes synchronization |  |
| Waterproof and dustproof grade IP66 | IP66 |
| 2.4G RF wireless transmission technology |  2.4G |
| Remote control Control distance 30m |  |
| Smartphone APP control (2.4GHz gateway is needed) |  |
| Support third party voice control (2.4GHz gateway is needed) |  |
Parameters
| RGB+CCT LED Garden Light (DC24V) | Switching Power Supply |
| Input Voltage: DC24V Power: 6W Working Temp.: -20~45°C Color Temp.: 2700K~6500K Luminous Flux: 550LM Light Efficiency: 90LM/W Lifespan: 50000 hours CRI: >80 Beam Angle: 25° Illumination Distance: >10m IP Rate: IP66 RF: 2.4GHz Control Distance: 30m | Input Voltage: AC100~240V 50/60Hz Rated Input Current: 1.5A Max. Power Consumption (no loading): 0.21W Max. Configuration: ⅡConductor Output Voltage: DC24V Rating Load Current: 2.7A Rating Output Power: 65W Working Temp.: 0~45°C Storage Temp.: -20~80°C |

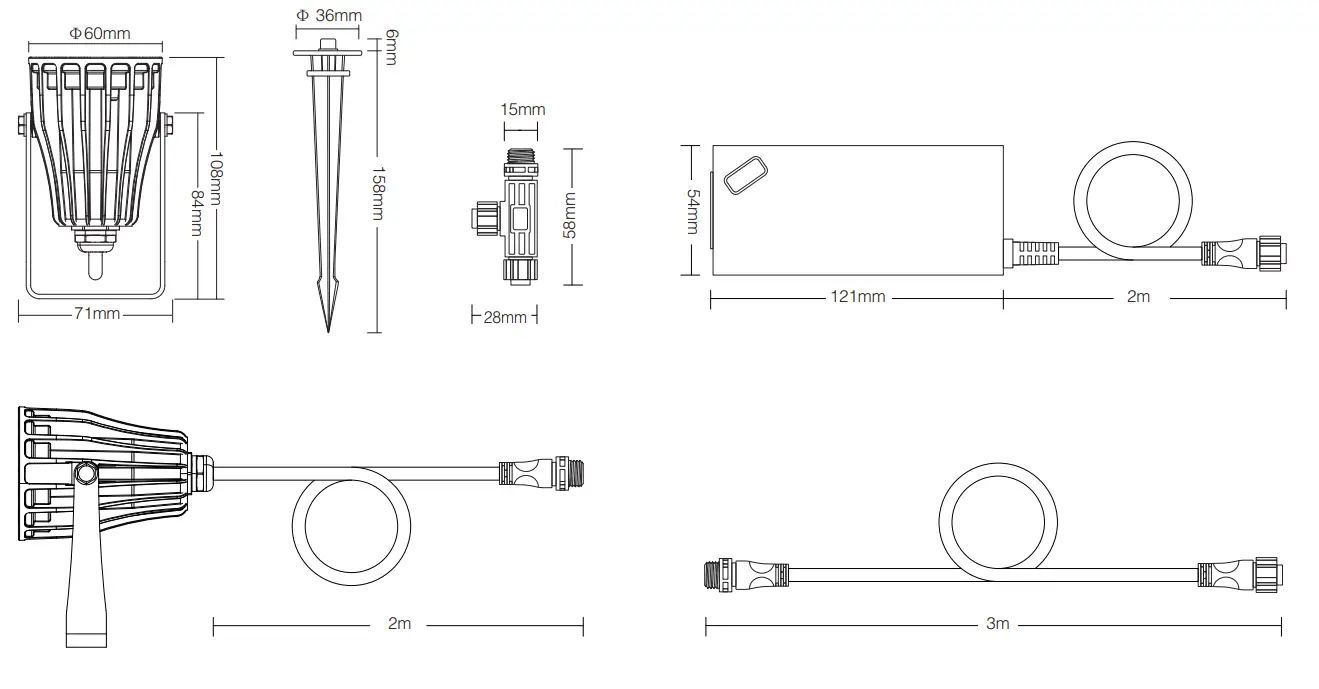

Connection Diagram
4. Link/Unlink

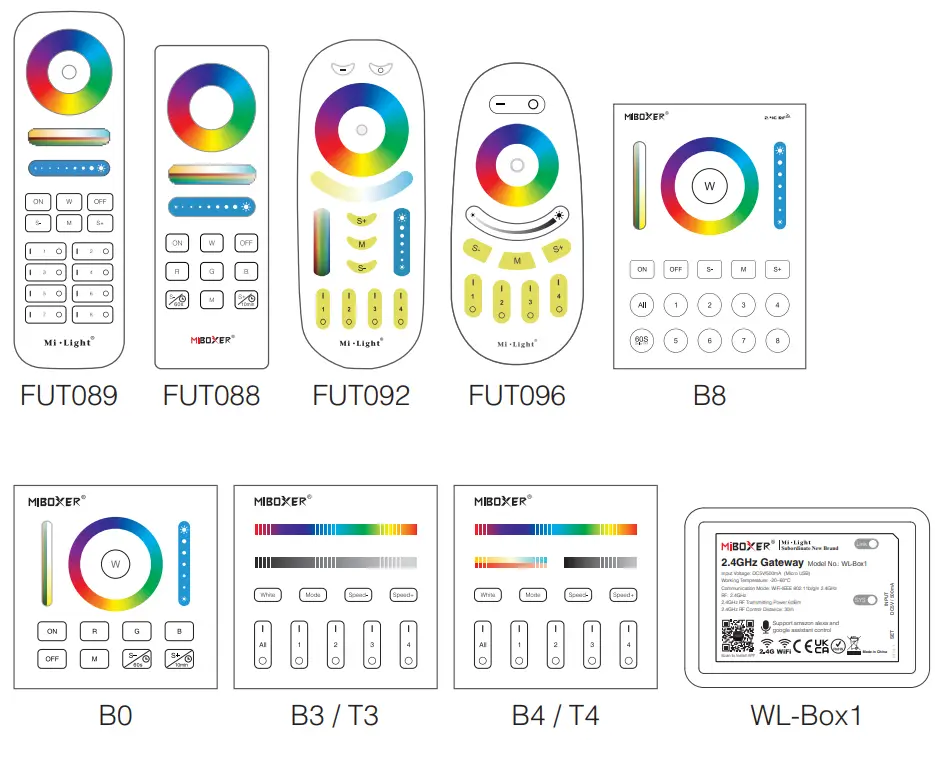

Compatible with these remote controls (Purchased separately)
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.

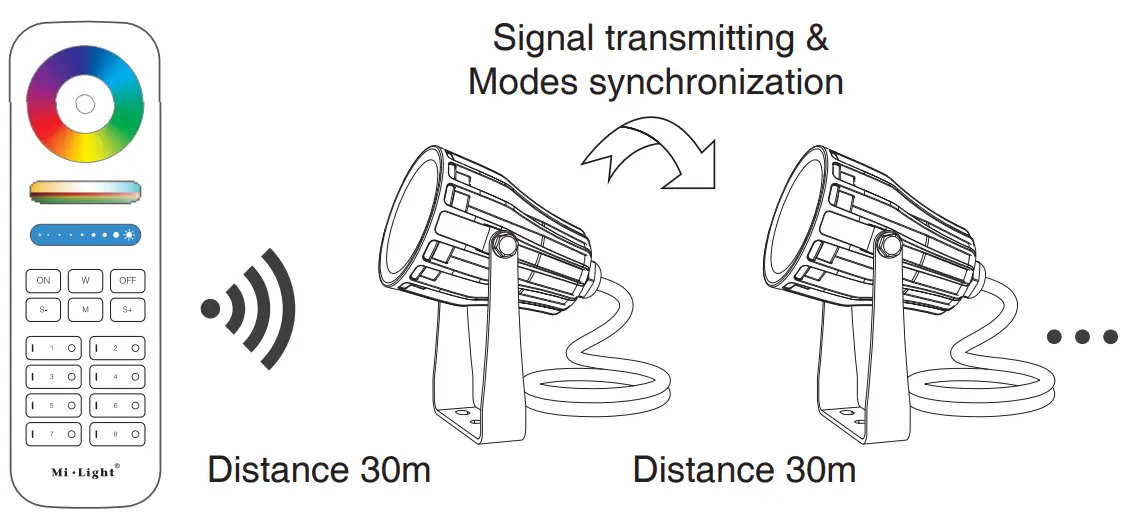

5. Signal transmitting
One garden light can transmit the signals from the remote control to another garden light within 30m, as long as there is a garden light within 30m, the remote control distance can be limitless.
6. Modes synchronization
Different garden lights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode and within 30m distance.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- Please check whether the input voltage supply is in accordance with the lighting fixtures.
- Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may damage the lighting fixtures.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
- Users must be correct, strict, and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration area
- The lighting fixtures will be heating on working, pls do not cover the lighting housing.

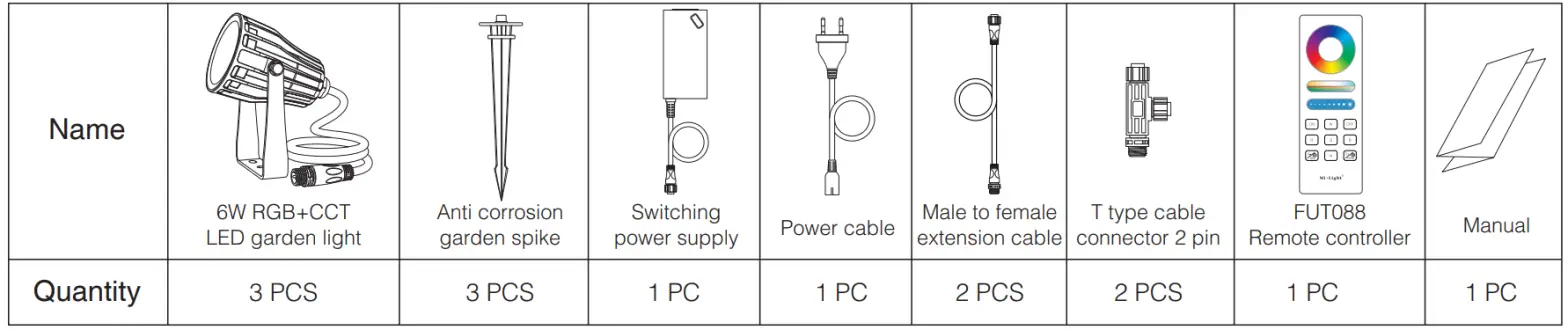

Packing list
Signal transmitting &
Modes synchronization
Made in China
