LED Special Adapter Series
Model No.: P072-24-A

Contents hide

1 Description

2 Features

3 Applications

4 Item ID instruction

5 Specification

6 Characteristic Curve

7 Packaging Specification

8 Transportation & Storage

9 Documents / Resources

9.1 References

10 Related Posts

Description

P072-24-A is special power adapter which designed for MiBoxer LED strip light and controller. It has improved 2.4G RF control distance and dimming performance. The input voltage is universal global standard (100-240Vac 50/60Hz)

Features

Universal AC input/Full range
2 Pole EURO Plug Class Power Unit
No load power consumption <0.21W
Energy efficiency Level VI
Protections: Short circuit/Over Load/Over voltage
Fully enclosed plastic case
LED indicator for power on
Meet environmental standard: Rohs
Improved 2.4G RF control distance: >30m
Low operating noise: 30dB
Improved dimming performance
Strip light not flash once it is over full loaded
5 years warranty

Applications

Indoor office lighting
Decoration lighting
Garden lighting

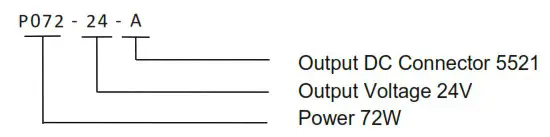

Item ID instruction

Specification

Model No		P072-24-A
OUTPUP	DC Voltage	Min: 23.4V	typical: 24.0V	Max: 24.6V
	Rated Current	Min: 2.8A	typical: 3.0A	Max: 3.2A
	Current Range	0-3.0A
	Ripple And Noise	150mVp-p Max At 115/230Vac input and output Min and Max. Load, the ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF, crossed connected at testing
	10% Load Efficiency	78.00% Min At 115/230Vac input voltage,10% load efficiency
	Setup, Rise Time	<3 Second Max.at 115Vac-230Vac input and output Max.load
	Hold up time	20mS Max.at 115Vac input and output Max load
	Over-shoot	10% Max.When power supply at turn off/on
INPUT	Rated input voltage	100-240Vac (Operating range: 90-264Vac) (Voltage Limit)
	Rated input frequency	47Hz-63Hz
	Rated input current	1.5A Max
	Power Factor	0.65Min Vin=115/230Vac, Full load
	Power consumption (no loading)	0.21W Max. (Input voltage 115V and 230Vac)
	Average Efficiency	88.00% Min At 115/230Vac input voltage, 1/4, 1/2, 3/4 and full load calculation average efficiency. Adaptor meet efficiency level VI
	Inrush Current	≤80A&350uS@230Vac（Max ）
	Lnrush Current	≤0.7mA
PROTEC TION	Over Load	CC mode. (Recovers automatically after fault condition is removed)
	Over Voltage	Protection Type: Hiccup Mode, Recovers automatically after fault condition is removed
	Short Circuit	Hiccup mode(auto-recovery)
ENVIRO NMENT	Operating Temperature	-0°C – +40°C
	Operating Humidity	20-90%RH (no condensation)
	Storage Temperature/Humidity	-40 ℃ – 85 ℃; 10-90%RH (no condensation)
	Atmospheric Pressure	86-106KPa
SAFETY &EMC	Certifications	TUV-ENEC, CE, CB
	Withstanding Voltage	I/P-0/P: 3kV , 5mA 60S
	Insulation Resistance	I/P-O/P: >100M0@500VDC
	Safety Standards	UL62368-1 IEC62368-1 GB4706.1, GB4343, GB17625 BS EN62368 BS EN55032/55035
	EMI	CE-EMC/RCM:EN55032. EN55014 CCC:GB9254, GB17625.1 FCC: part 15B
	EMS	CE-EMC/RCM:EN 61000-4-2,3,4,5
Others	IP Rating	IP40
	RoHS	RoHS 2.0 (EU) 2015/863
	Warranty Condition	5 yrs (Tc 80t )
Remarks	1. We suggest user to install over or under loaded protective device in power supply circuit of led light and ensure safety using electrici y 2. Please turn off power and AC input once user install wiring 3. The PC cover, shell accessories for power adapter installation inside of led light must be UL94-VO anti-fire level 4. Power adapter is important accessories for Led light, EMC function is easy to be affected by inside wiring connection of power adapter, the end manufacturer should pass new EMC testing for whole finished unit. 5. Without any special notice, above testing figure is under testing condition ( temperature 25t, humidity 50%, input 230Vac, 100% full loaded )

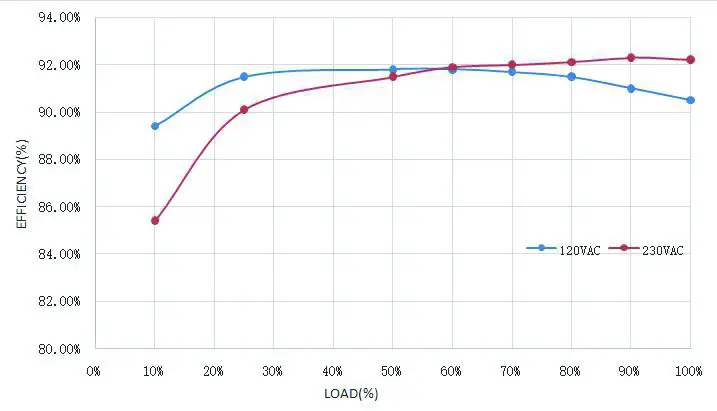

Characteristic Curve

Efficiency Curve (TBD)

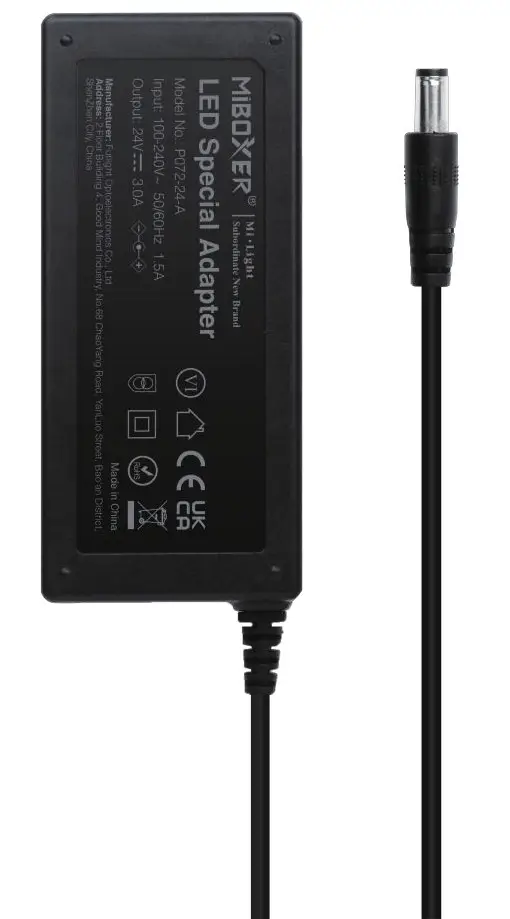

Label

LED Special Adapter
Model No.: P072-24-A
Input: 100-240V- 50/60Hz 1.5A
Output: 24V 3.0A

Manufacturer: Futlight Optoelectronics Co., Ltd
Address: 2 Floor Building 4, Good Mind Industry, No.68 ChaoYang Road, YanLuo Street, Bao’an District, ShenZhen City, China

Structure size (unit: mm)

Output line DC connector (unit: mm)

NOTE:

UL2464 20AWG Ø4.0 80 oC 300V VW-1 L=1200±50mm;
PLUG: 5.5*2.1*10mm, Straight plug fork with groove
POLARITY: inside: “+”, outside: “-”
Color: Black
RoHS

Packaging Specification

Model	P072-24-A
Packaging Box Size	620x320x260mm(L×W×H)
Ouantities	20PCS/layer; 3 layers/ctn; 60PCS/ctn

Transportation & Storage

Transportation
Suitable transportation means: vehicles, boats and aircraft. During transportation, there should be awnings for rain protection and sun protection. Civilized loading and unloading are required. There should be no severe vibration or impact Storage. Storage in accordance with the provisions of the Class I environment.
For products which have been stored for more than six months, they mustn’t be used until they pass the reinspection.

Attention

Please use this product according to its specifications otherwise there may be malfunction.
Use light fixtures that have not been certified or are not compatible with the LED drivers may cause fire or other hazards.
Man-made damage, any use beyond the specification and non-original-factory modification are not covered by warranty.

Manufacturer: Futlight Optoelectronics Co., Ltd
Address: 2 Floor Building 4, Good Mind Industry, No.68 ChaoYang Road, YanLuo Street, Bao’an
District, ShenZhen City, China
