ZR9034, ZR9035, ZR9036
LED panel accessory – frame

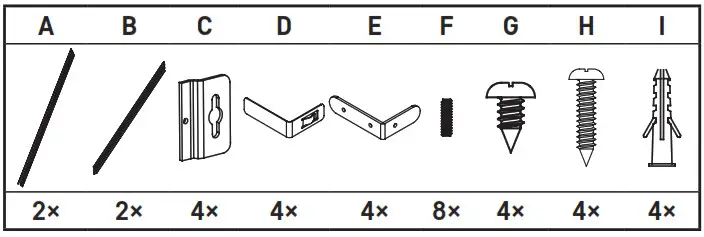

Contents:
| A – Profile A B – Profile B C – Ceiling fitting D – Wall plug A E – Wall plug B | F – Hex socket screw G – M4×5 self-tapping screw H – M4×25 self-tapping screw I – Wall plug |
Instructions for assembly

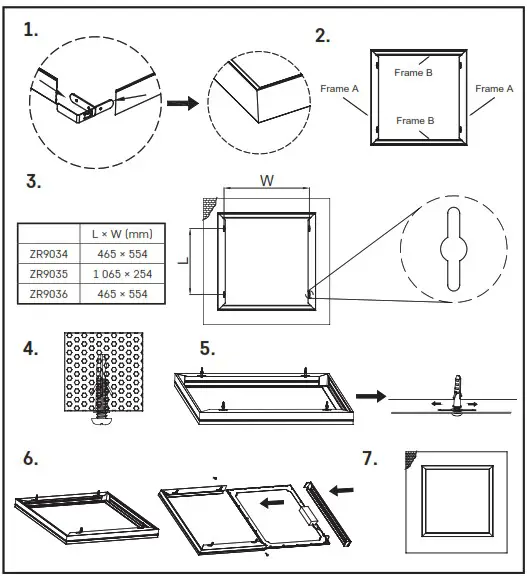

- Assemble the individual parts of the frame according to the drawing.
- Maintain the order of profiles A and B in accordance with figure
- Mark positions for drilling holes and drill holes with diameter of 5 mm at these spots.
- Insert wall plugs into the holes.
- Fasten the frame to the ceiling using the supplied screws.
- Dismount profile B on one side, insert the panel into the frame, then replace the profile.
- Assembly is complete.
EMOS spol. s.r.o. declares that the LED Panel Accessory is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
