LED panel accessory – frame
ZR9034, ZR9035, ZR9036
Instructions Manual
Contents:
A – Profile A
B – Profile B
C – Ceiling fitting
D – Wall plug A
E – Wall plug B
F – Hex socket screw
G – M4×5 self-tapping screw
H – M4×25 self-tapping screw
I – Wall plug
Instructions for assembly

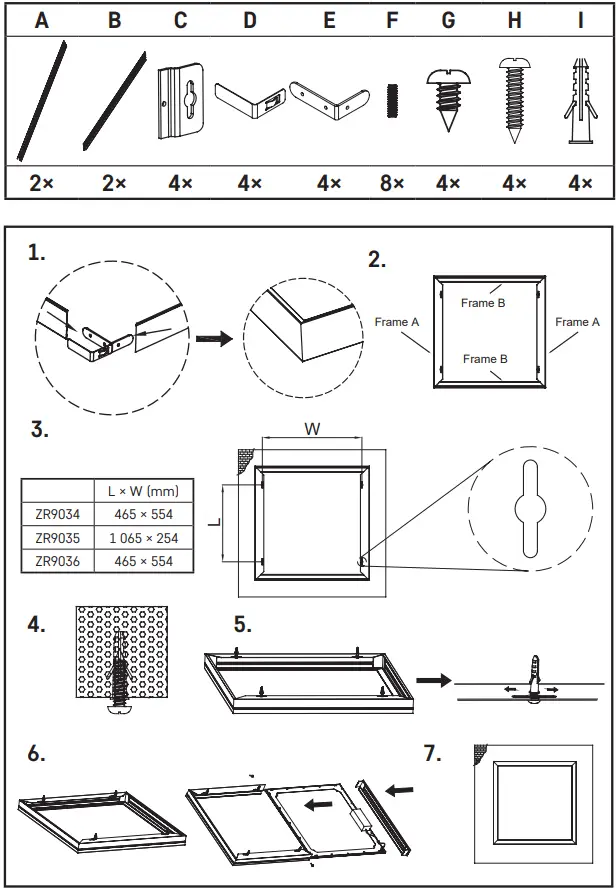

- Assemble the individual parts of the frame according to the drawing.
- Maintain the order of profiles A and B in accordance with figure 2.
- Mark positions for drilling holes and drill holes with a diameter of 5 mm at these spots.
- Insert wall plugs into the holes.
- Fasten the frame to the ceiling using the supplied screws.
- Dismount profile B on one side, insert the panel into the frame, then replace the profile.
- Assembly is complete.
EMOS spol. s r.o. declares that the LED Panel Accessory is in compliance with the essential requirements and other relevant provisions of the Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the food chain and damage your health and well-being. For actual information about collection points, contact the local authorities.
