EMOS ZD1432 LED Panel
LED Panel, Recessed
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out | Body color |
| ZD1432 | 220–240 V AC, 50/60 Hz | 9 W | Neutral white | 25 000 h | 900 lm | Ø 120 mm | Ø 90–110 mm | White |
| ZD1442 | 220–240 V AC, 50/60 Hz | 18 W | Neutral white | 25 000 h | 1 800 lm | Ø 170 mm | Ø 140–160 mm | White |
| ZD1452 | 220–240 V AC, 50/60 Hz | 24 W | Neutral white | 25 000 h | 2 400 lm | Ø 220 mm | Ø 190–210 mm | White |
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out | Body color |
| ZD2432 | 220–240 V AC, 50/60 Hz | 9 W | Neutral white | 25 000 h | 900 lm | 120 × 120 mm | 100 × 100 mm (± 10 mm) | White |
| ZD2442 | 220–240 V AC, 50/60 Hz | 18 W | Neutral white | 25 000 h | 1 800 lm | 170 × 170 mm | 150 × 150 mm (± 10 mm) | White |
| ZD2452 | 220–240 V AC, 50/60 Hz | 24 W | Neutral white | 25 000 h | 2 400 lm | 220 × 220 mm | 200 × 200 mm (± 10 mm) | White |
LED Panel is designed for indoor use to be mounted on a solid base.
Ingress Protection IP20 – for indoor use.
Mounting
The LED panel is ready for immediate installation.Two wires (L and N) are used for the connection to the 230 V~ mains.
The device falls into class II – without protective conductor.
Mount the luminaire firmly onto a solid basis, for example a wall, a ceiling and like that.
Connect the power cord to the mains 230 V~.
Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be
carried out only by an authorized person. - In case of any damage to any part of the luminaire, don’t use it.

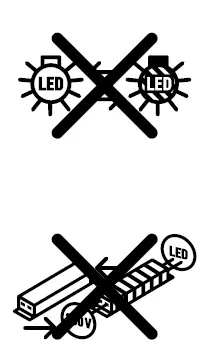

- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the luminaire.
- In case of broken cover don’t use the luminaire and replace broken cover with new one immediately.
EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant
provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class E
This luminaire is not suitable for covering with insulation material.
Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
