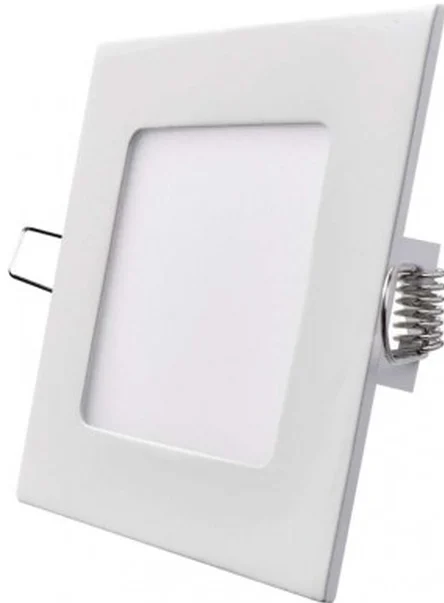

EMOS ZD2121 LED Panel

Accessories

ZR2212, ZR3412
This product contains a light source of energy efficiency class E

ZR1412, ZR1422, ZR3422, ZR1512, ZR1433
This product contains a light source of energy efficiency class F

Type	Input Voltage	Power Consumption	Life span	Luminous Flux	UGR	CRI	IP	Dimensions
ZR1412	220 V–240 V AC, 50/60 Hz	40 W	40 000 h	4240 lm	<22	>80	IP20	595 × 595 × 10.4 mm
ZR1422				4 000 lm	<19	>80	IP20	595 × 595 × 10.4 mm
ZR1433				3 700 lm	<19	>95	IP20	595 × 595 × 10 mm
ZR1512				4 240 lm	<22	>80	IP20/IP44	595 × 595 × 10,4 mm
ZR3412				4 240 lm	<22	>80	IP20	1195 × 295 × 11.4 mm
ZR3422				4 000 lm	<19	>80	IP20	1195 × 295 × 11.4 mm
ZR2212		19 W		1 800 lm	<22	>80	IP20	595 × 295 × 10.4 mm

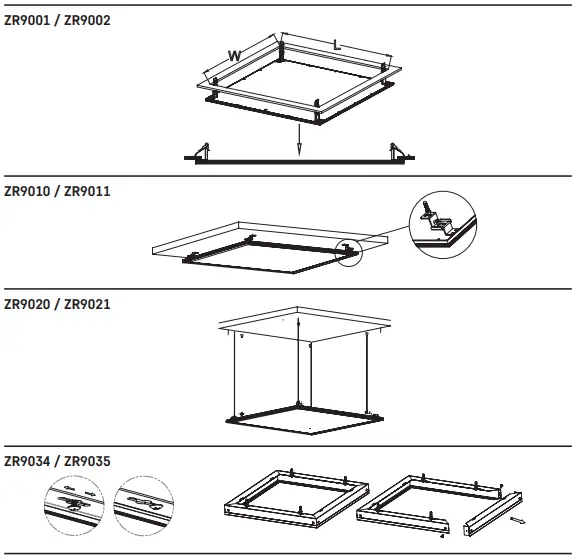

	ZR1412	ZR1422	ZR1433	ZR1512	ZR3412	ZR3422	ZR2212
Springs	ZR9001	ZR9001	ZR9001	ZR9001	ZR9002	ZR9002	ZR9001
Hooks	ZR9010	ZR9010	ZR9010	ZR9010	ZR9011	ZR9011	ZR9010
Strings	ZR9020	ZR9020	ZR9020	ZR9020	ZR9021	ZR9021	ZR9020
Frame	ZR9034	ZR9034	ZR9034	ZR9034	ZR9035	ZR9035

GB | LED Panel

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP20 – for indoor use

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, • a ceiling and like that.Connect the power cord to the mains 230 V AC.
Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

Luminaire is suitable entirely for fixed mounting.
The luminaire can be connected only to the electric distri- broken cover with new one immediately. bution network, whose installation and protection complies with the applicable standards.
Before any manipulation or servicing of the luminaire dis-connect the luminaire from AC power. This operation can be carried out only by an authorized person.
In case of any damage to any part of the luminaire, don’t use it.
LED chips inside the luminaire are not replaceable.
Don’t change inner wiring of the luminaire.
In case of broken cover don’t use the luminaire and replace broken cover with new one immediately.
EMOS spol. s r.o. declares that the LED panel is in compliance with the essential requirements and other relevant provisions of Directive.The device can be freely operated in the EU.The Declaration of Conformity can be found a thttp://www.emos.eu/download.

Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the foodchain and damage your health and well-being. For actual information about collection points, contact the local authorities.

Servis: EMOS SI, d.o.o., Rimska cesta 92, 3311 Šempeter v Savinjski dolini, Slovenija
tel: +386 8 205 17 21; e-mail: [email protected]
