6W Circle Built-in Warm LED Panel
Instructions
Circle Built-in Warm LED Panel
| ZD1121 | ZD1141 |
| ZD1122 | ZD1142 |
| ZD1131 | ZD1151 |
| ZD1132 | ZD1152 |
| ZD2121 | ZD2141 |
| ZD2122 | ZD2142 |
| ZD2131 | ZD2151 |
| ZD2132 | ZD2152 |
White frame
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out |

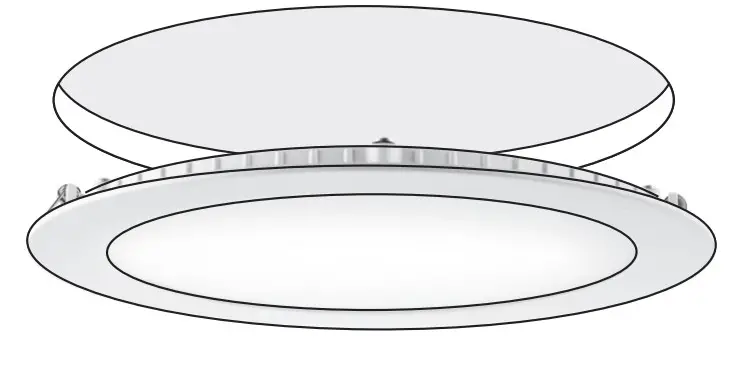

| ZD1121 | 220-240 V AC, 50/60 Hz | 6 W | Warm white | 30 000 h | 450 lm | 0 120 mm | 0 105 mm |
| ZD1122 | Neutral white | ||||||
| ZD1131 | 220-240 V AC, 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 0 175 mm | 0 155 mm |
| ZD1132 | Neutral white | ||||||
| ZD1141 | 220-240 V AC, 50/60 Hz | 18 W | Warm white | 30 000 h | 1 500 lm | 0 225 mm | 0 205 mm |
| ZD1142 | Neutral white | ||||||
| ZD1151 | 220-240 V AC, 50/60 Hz | 24 W | Warm white | 30 000 h | 2 000 lm | 0 297 mm | 0 280 mm |
| ZD1152 | Neutral white |
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out |

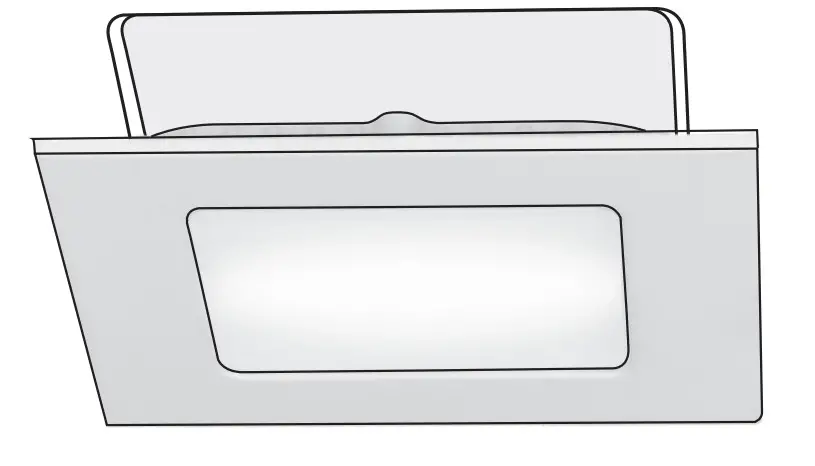

| ZD2121 | 220-240 V AC, 50/60 Hz | 6 W | Warm white | 30 000 h | 450 lm | 120 x 120 mm | 102 x 102 mm |
| ZD2122 | Neutral white | ||||||
| ZD2131 | 220-240 V AC, 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 170 x 170 mm | 152 x 152 mm |
| ZD2132 | Neutral white | ||||||
| ZD2141 | 220-240 V AC, 50/60 Hz | 18 W | Warm white | 30 000 h | 1 500 lm | 225 x 225 mm | 202 x 202 mm |
| ZD2142 | Neutral white | ||||||
| ZD2151 | 220-240 V AC, 50/60 Hz | 24 W | Warm white | 30 000 h | 2 000 lm | 297 x 297 mm | 280 x 280 mm |
| ZD2152 | Neutral white |
LED Panel, Recessed
LED luminaire is designed for indoor use to be mounted on a solid base.
Ingress Protection IP20 – for indoor use.
Mounting
To ensure protection against injury by electric current, it is necessary to remove the connected testing conductors at the power supply input during installation and replace hem with conductors with double or reinforced insulation.
Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that.
Connect the power cord to the mains 230 V~.
Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the luminaire, don’t use it.

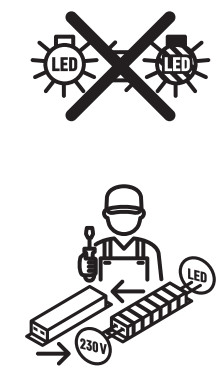

- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the luminaire.
- In case of broken cover don’t use the luminaire and replace broken cover with new one immediately.
EMOS spol s.r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions f Directive. The evice can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class F
This luminaire is not suitable for covering with insulation material.
Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach roundwater and subsequently food chain, where it could ffect human health.
